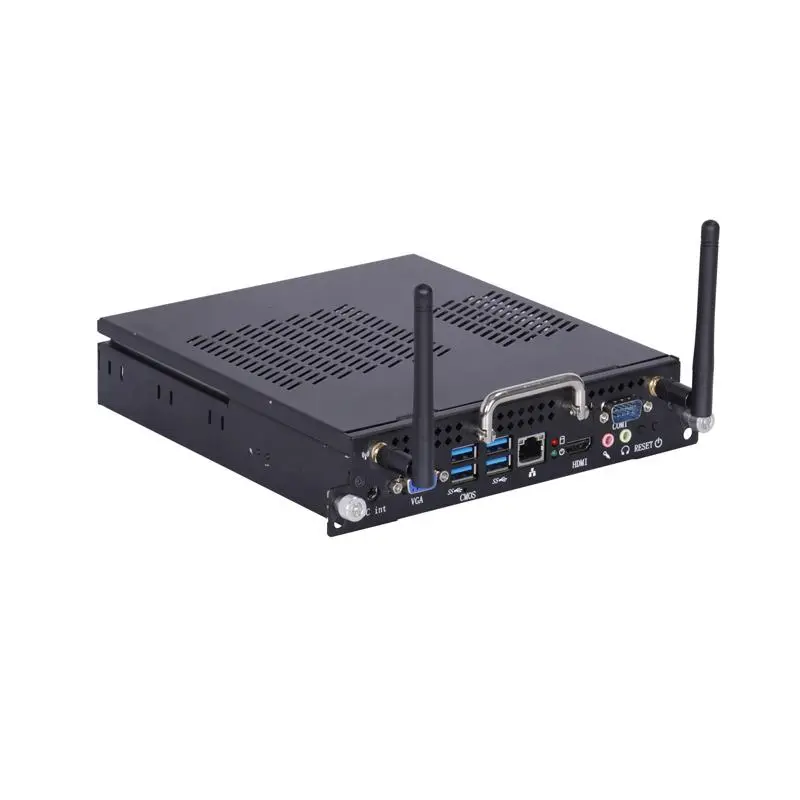

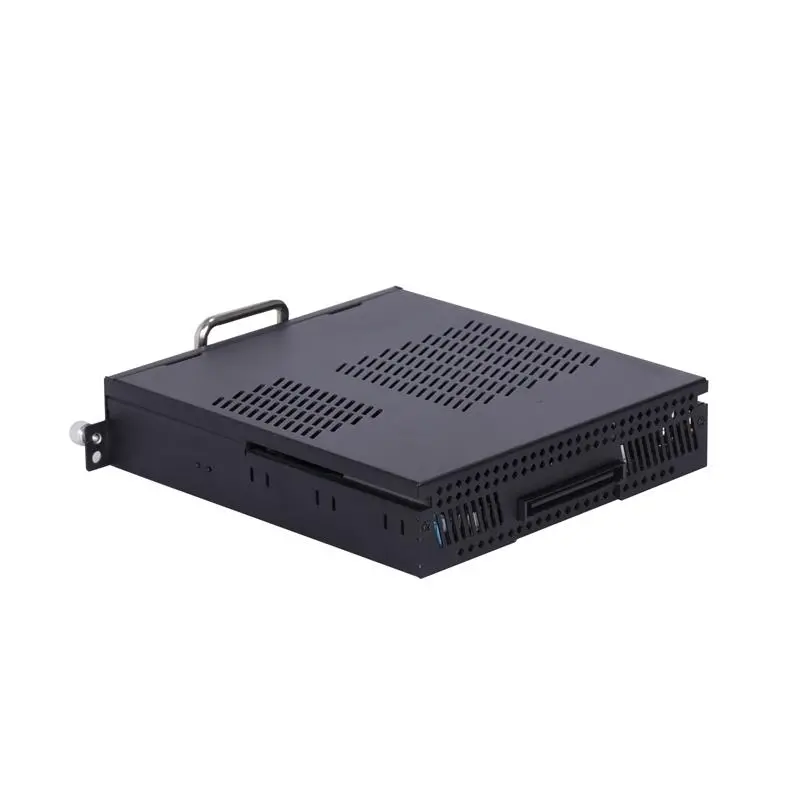

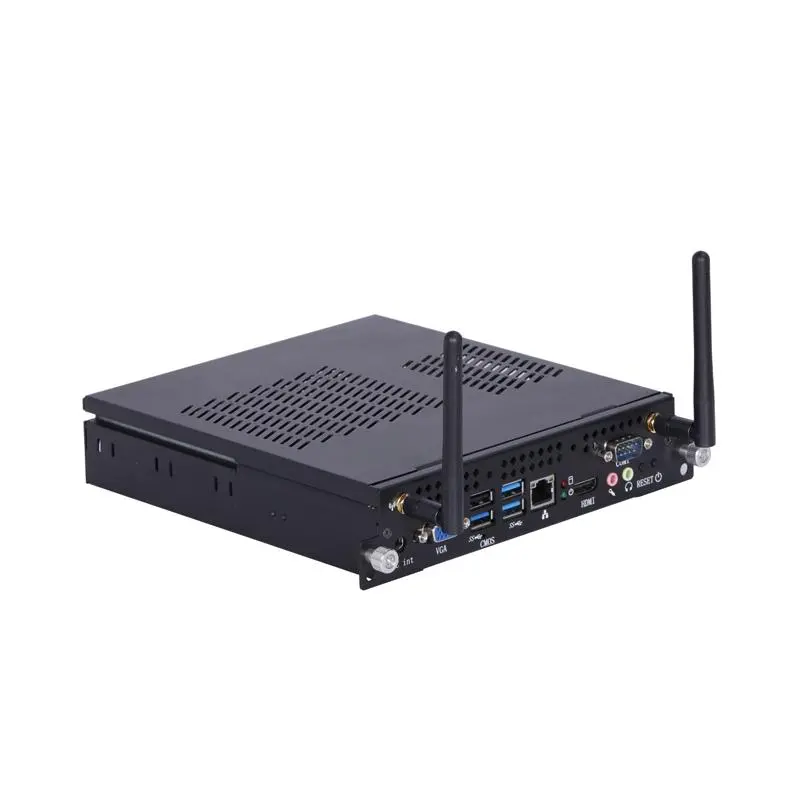

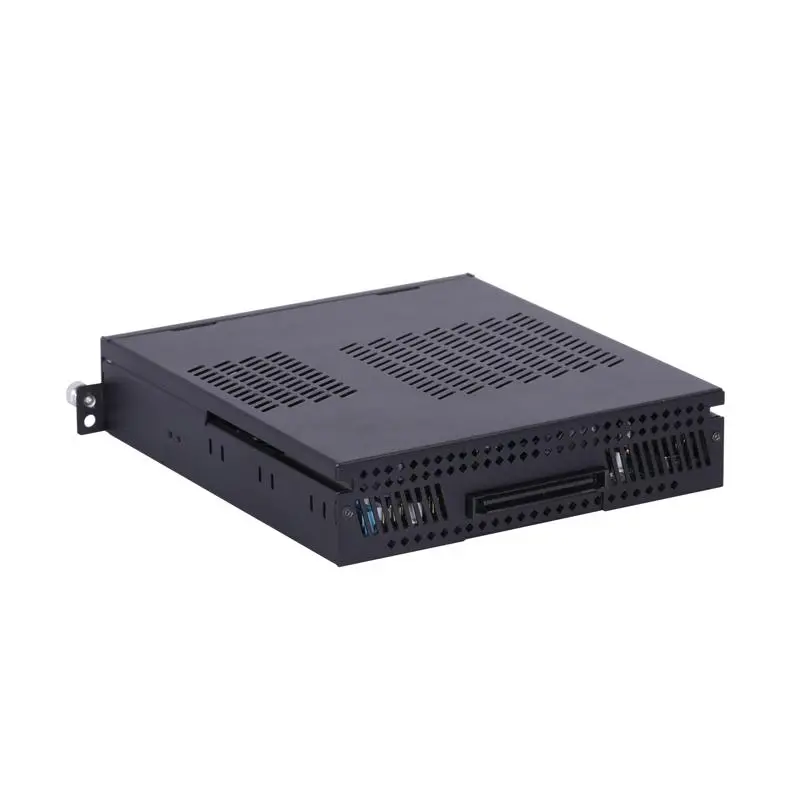

Assembled motherboard model

OPS-H110

Chassis size

Standard OPS-C size 180*195*42mm(L*W*H)

Separate Processor

Skylake Core i3/i5/i7 Processors:I3-6100,I3-6300,I5-6400,I5-6500,I7-6700,etc;

Kaby lake Core i3/i5/i7 Processors:I3-7100,I3-7300,I5-7500,I7-7700,etc.

Processor Quantity

Only support 1 piece processor.

Chipset

Integrated Intel H110 chipset on CPU.

Memory

2*DDR4 1866/2133MHz Memory channels,up to 32GB RAM.

Network Card

1*Realtek 8111F Gigabit Network card,support 1 or 2 RJ45 LAN ports,wake on LAN,PXE boot.

Audio

Realtek ALC662 HD digital audio decoder,support Line-out,Mic-in,SPDIF,Speaker.

Graphics Card

Integrated Intel HD Graphics 530/630 on CPU,support 4K,1080P,H264,3D play.

Display

VGA,HDMI,support synchronously,asynchronously dual screen display.

Hard Disk(Storage)

2*SATA3.0 , 1*MSATA3.0 , 1*M.2 2280

Power Supply

DC12V/19V

Heat Sink

Thin,cool,mute fan

I/O Interfaces

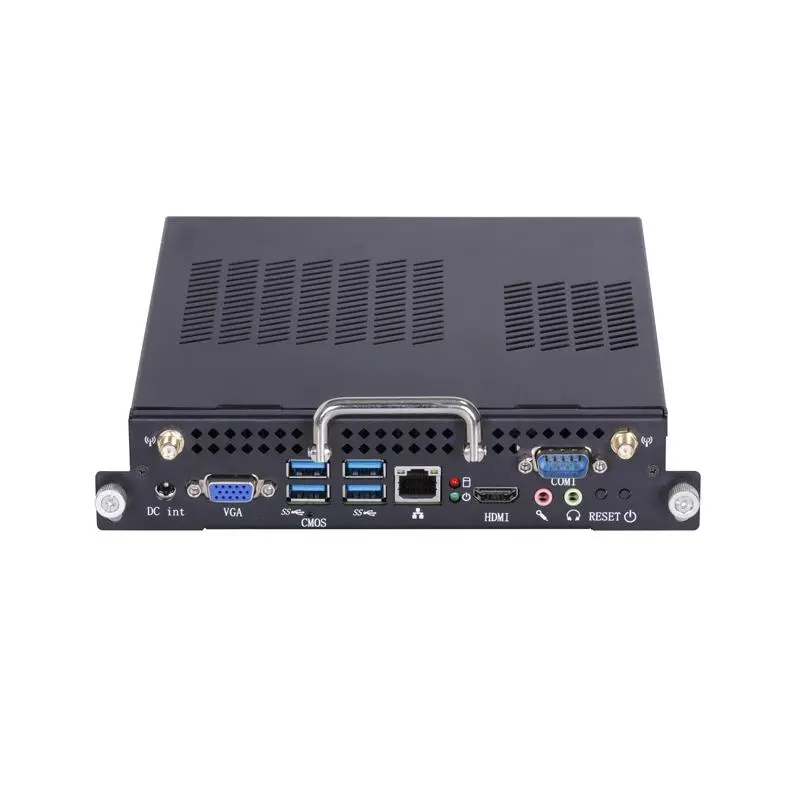

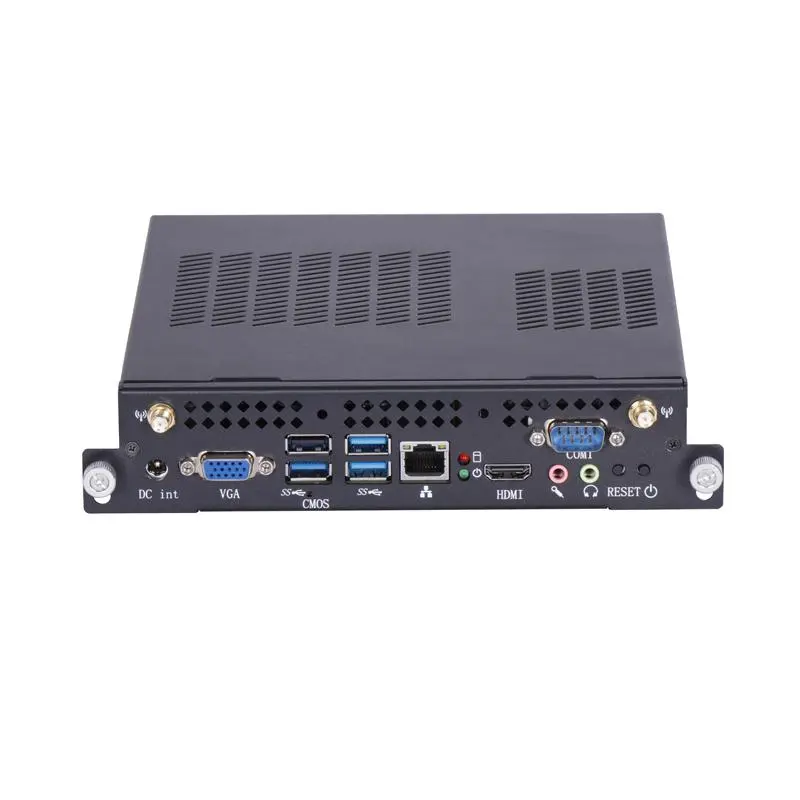

1*DC-in, 1*HDMI ,1*VGA ,4*USB3.0 , 1*RJ45 LAN , 1*RS232 COM , 1*Line-out , 1*Mic-in , 1*power button , 1*Restart button , 2*WIFI holes , JAE 80 PIN OPS slot.

Expansion Bus

2*Mini-PCIE slots,support WIFI,4G,Bluetooth,GPS,MSATA.

Operating System

Windows 7(32bit,64bit) , Windows 8.1 , Windows 10 , Linux.

System Monitor

Support CPU temperature monitor, fan speed,system temperature.

Watch dog

Watch dog programming, support hardware reset function (256 levels, 0~255 seconds).

BIOS

AMI BIOS;Support read only,power on,timing switch,remote switch,intelligently identify devices.

Operating Environment

Working temperature :-20℃~60℃       Relative humidity:5%~95%,non-condensation.

Installation method

Desktop,wall hanging,embedded.

Similar OPS mini PC

OPS-6600,OPS-H81,OPS-9900,P30,P33,P42,PS103T,etc.
