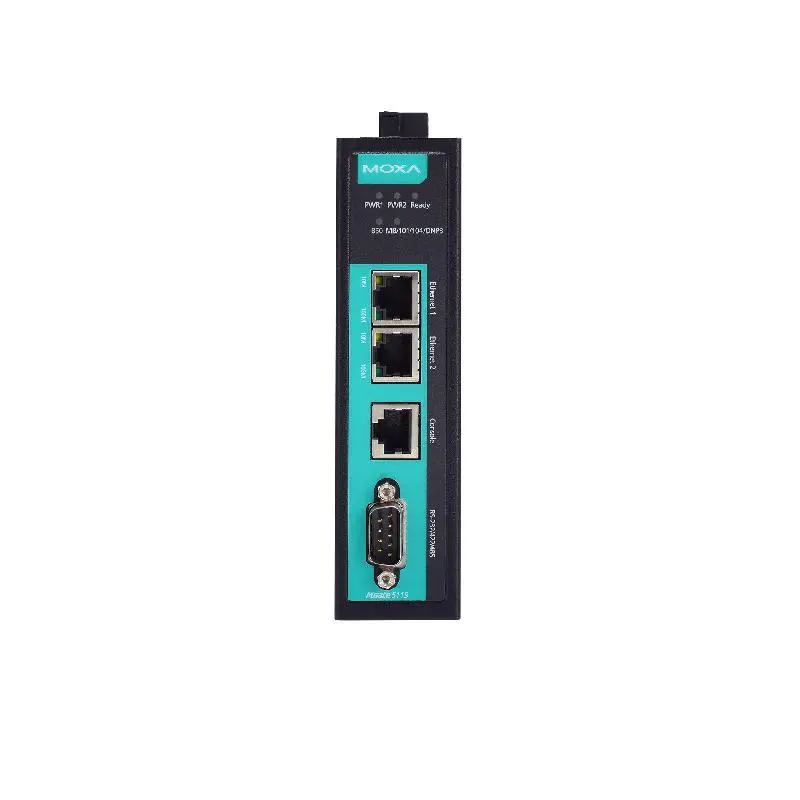

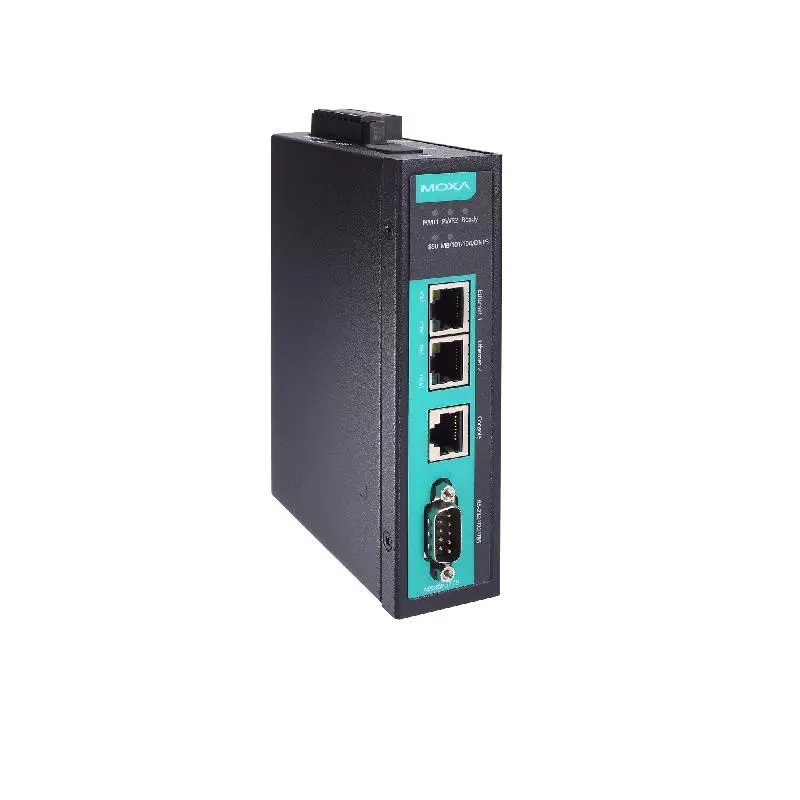

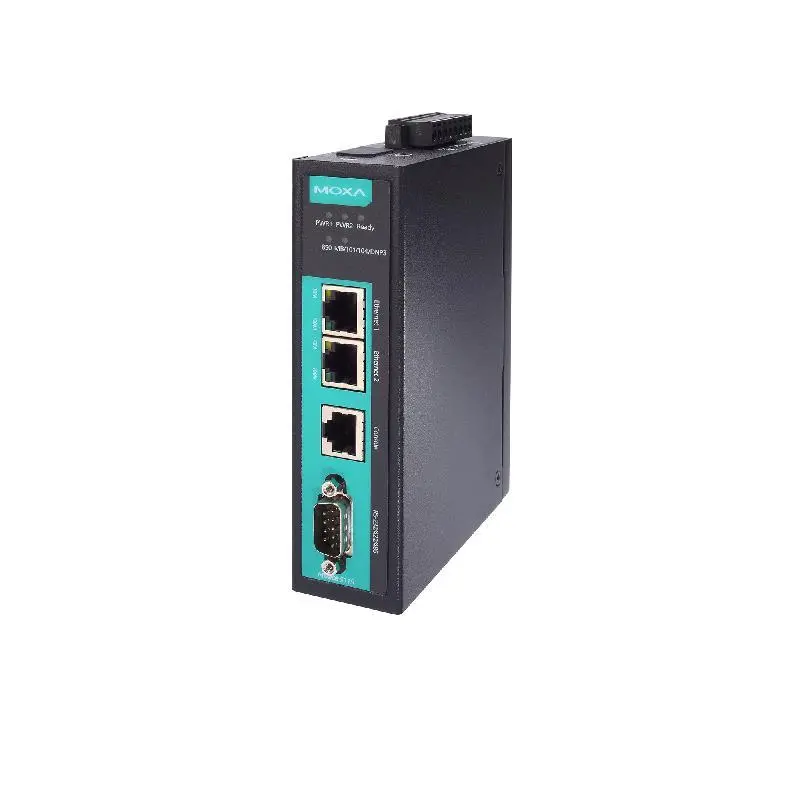

MOXA MGate 5119 Series1-port DNP3/IEC 101/IEC 104/Modbus-to-IEC 61850 gateways

Features and Benefits

• Supports IEC 61850 MMS server
• Supports DNP3 serial/TCP master
• Supports IEC 60870-5-101 master (balanced/unbalanced)
• Supports IEC 60870-5-104 client
• Supports Modbus RTU/ASCII/TCP master/client
• Embedded traffic monitoring/diagnostic information for easy troubleshooting
• Built-in Ethernet cascading for easy wiring
• -40 to 75°C operating temperature range
• Serial port with 2 kV isolation protection
• Supports IEC 61850 MMS and DNP3 TCP protocol encryption
• Security features based on IEC 62443/NERC CIP
• Compliant with IEC 61850-3 and IEEE 1613
• Built-in SCL file generator for easy configuration
