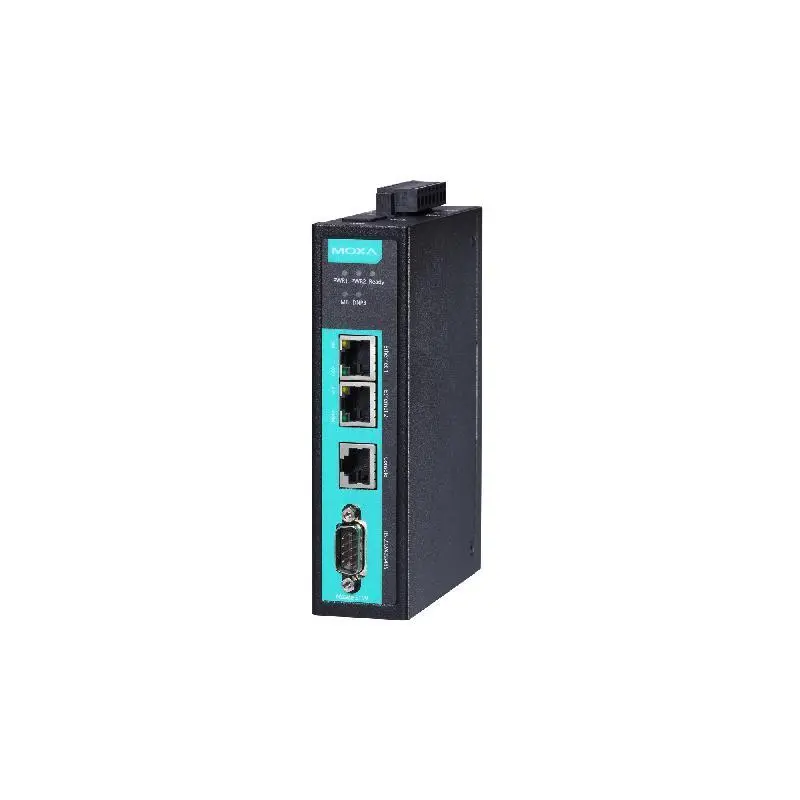

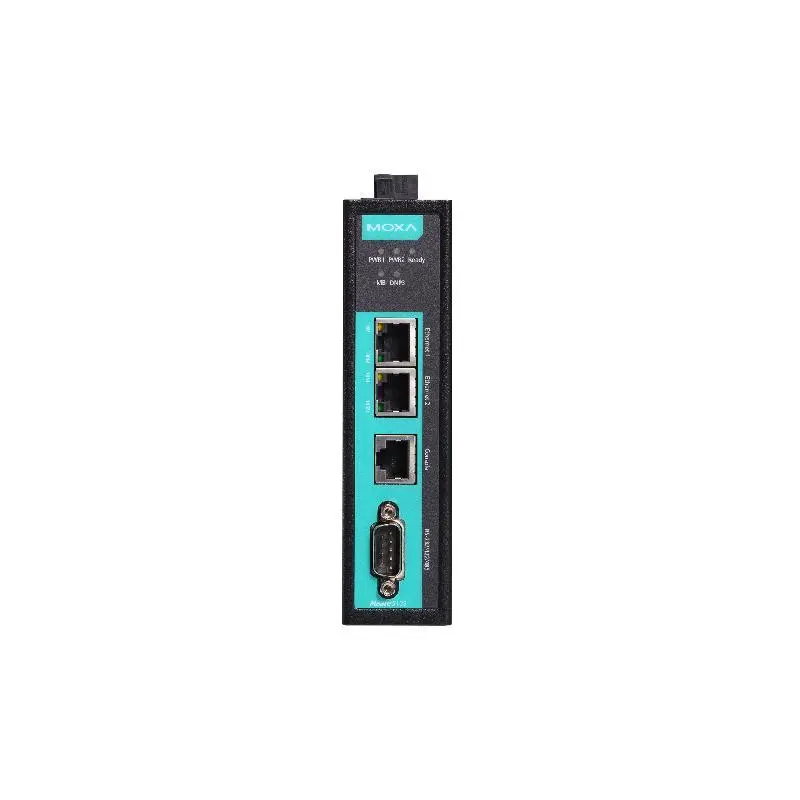

MOXA MGate 5109 Series1-port Modbus RTU/ASCII/TCP-to-DNP3 serial/TCP/UDP gateways

Features and Benefits

• Supports Modbus RTU/ASCII/TCP master/client and slave/server
• Supports DNP3 serial/TCP/UDP master and outstation (Level 2)
• DNP3 master mode supports up to 26600 points
• Supports time-synchronization through DNP3
• Effortless configuration via web-based wizard
• Built-in Ethernet cascading for easy wiring
• Embedded traffic monitoring/diagnostic information for easy troubleshooting
• microSD card for configuration backup/duplication and event logs
• Status monitoring and fault protection for easy maintenance
• Redundant dual DC power inputs and relay output
• -40 to 75°C wide operating temperature models available
• Serial port with 2 kV isolation protection
• Security features based on IEC 62443
