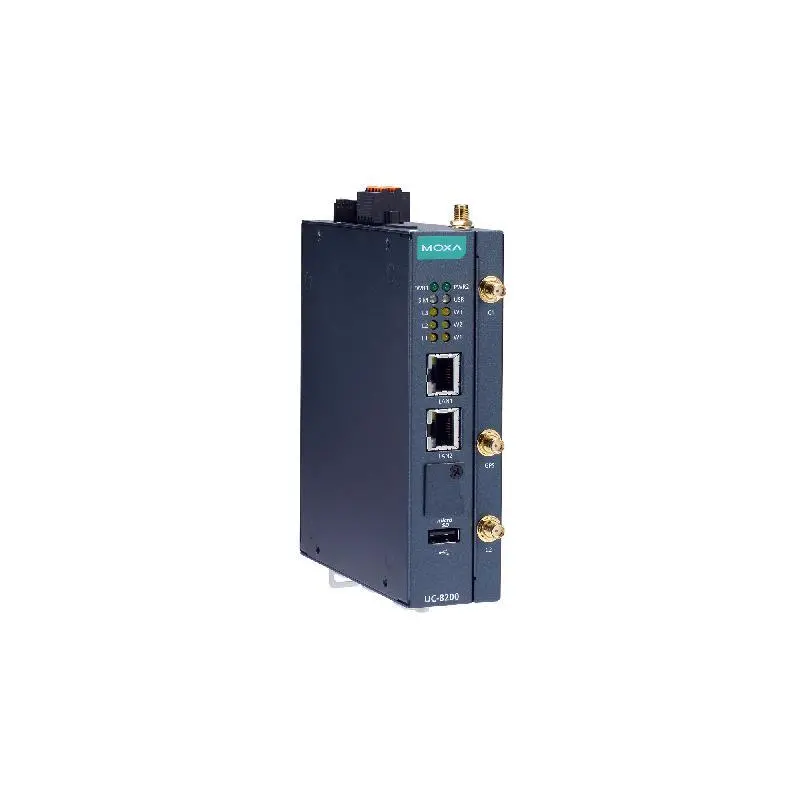

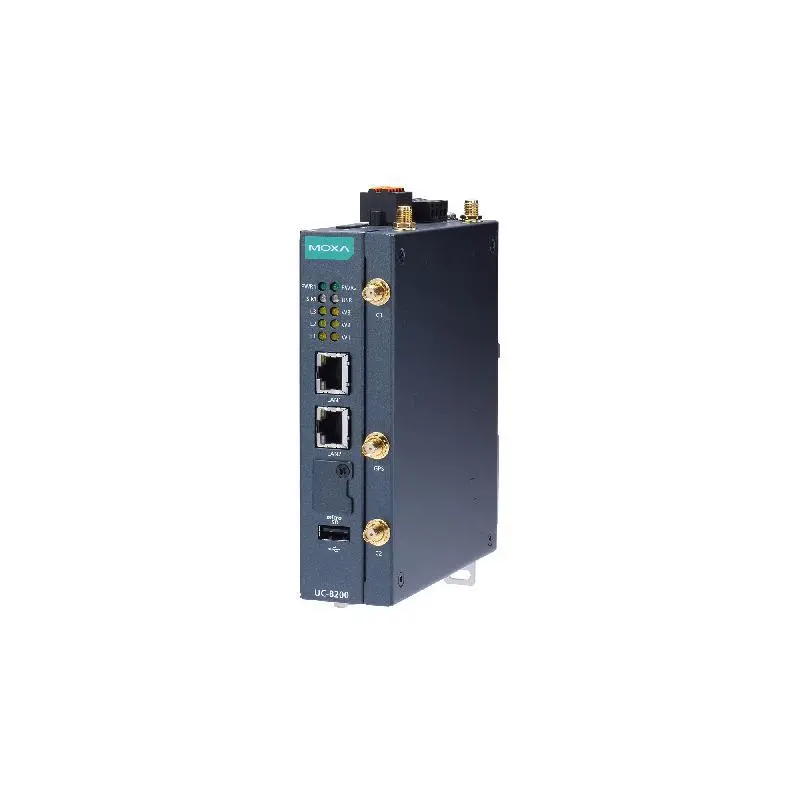

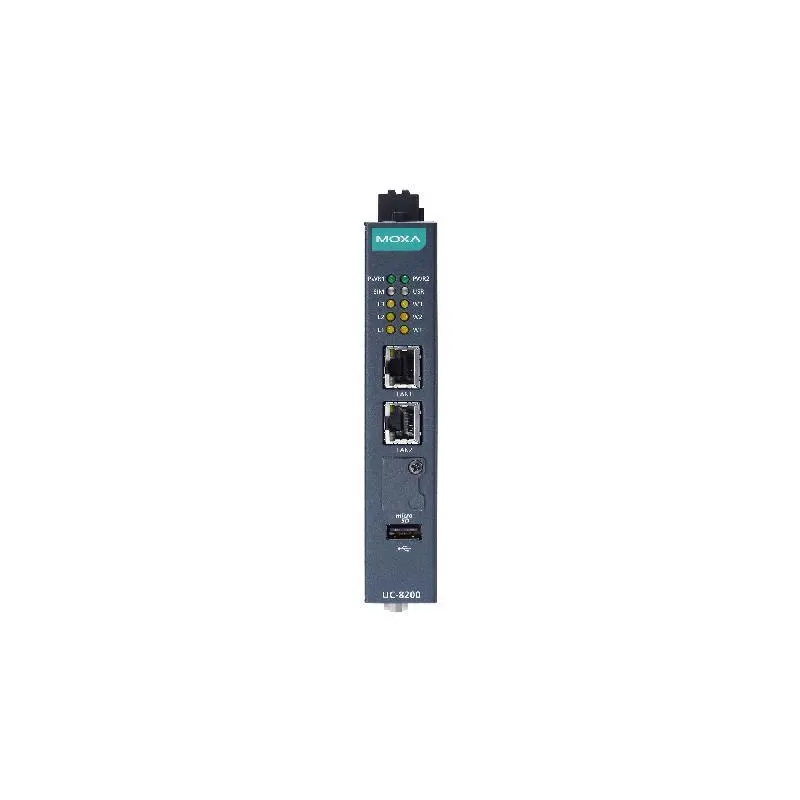

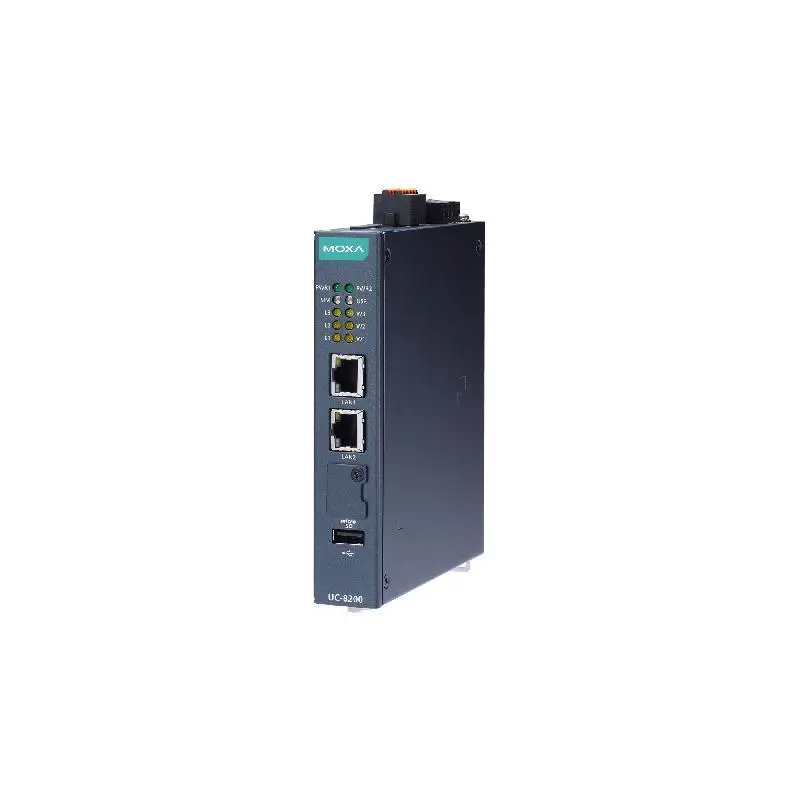

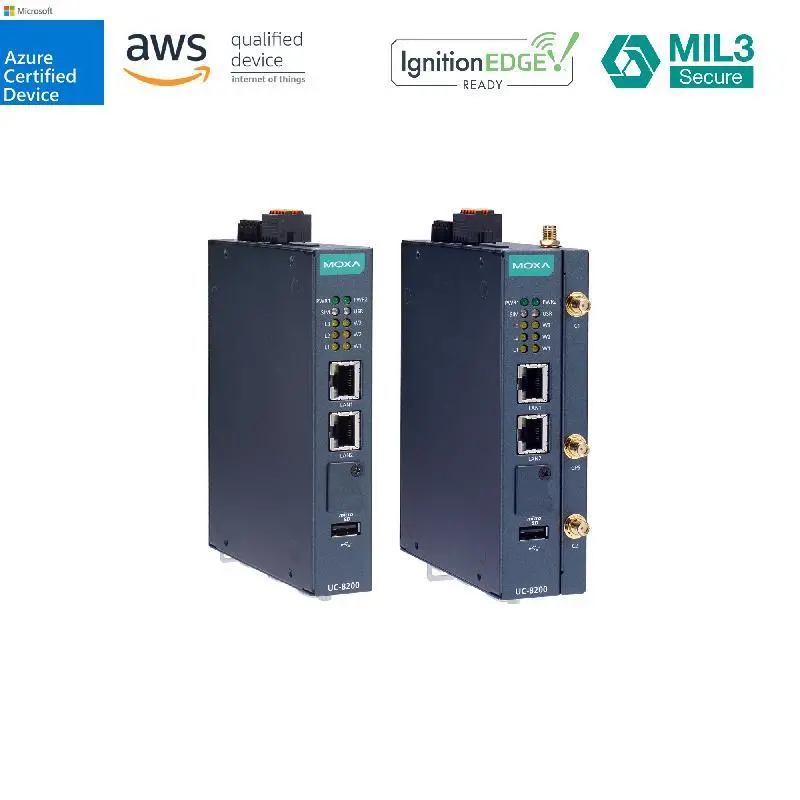

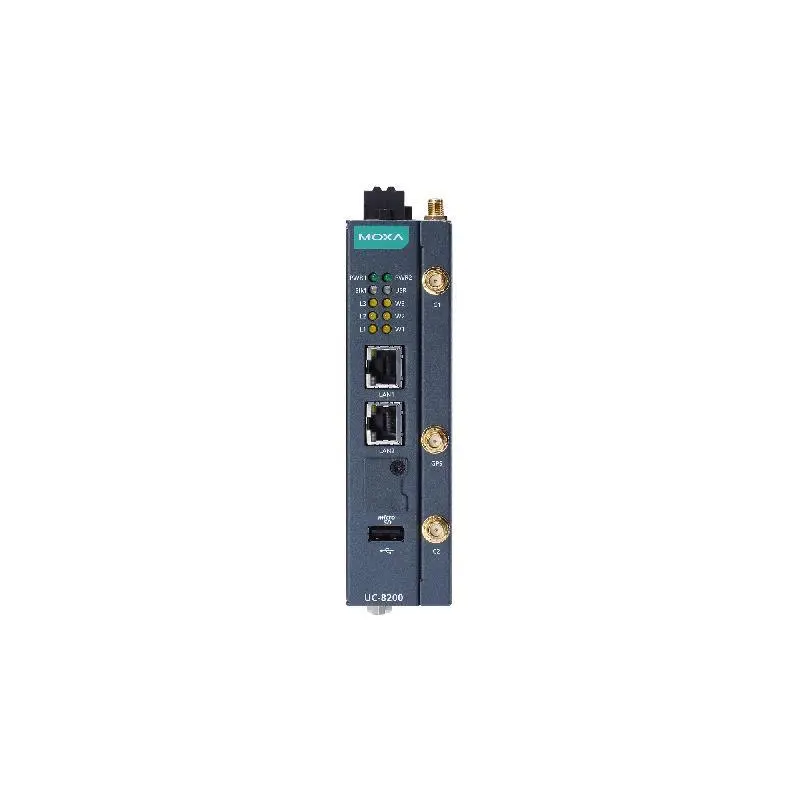

MOXA UC-8200 SeriesArm Cortex-A7 dual-core 1 GHz IIoT gateways with built-in LTE Cat. 4, 1 Mini PCIe expansion slot for a Wi-Fi module, 1 CAN port, 4 DIs, 4 DOs

Features and Benefits

• Armv7 Cortex-A7 dual-core 1 GHz
• ISASecure IEC 62443-4-2 Security Level 2 certified with Moxa Industrial Linux 3 Secure
• Moxa Industrial Linux with 10-year superior long-term support
• LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
• Dual SIM slots
• 2 auto-sensing 10/100/1000 Mbps Ethernet ports
• Integrated LTE Cat. 4 module with US/EU/APAC band support
• 1 CAN port supports CAN 2.0A/B
• microSD socket for storage expansion
• -40 to 85°C wide temperature range and -40 to 70°C with LTE enabled
