Model

M304

Architecture

X86 architecture

Integrated Processor

Intel Haswell I3-4005U,I3-4010U,I3-4025U,I3-4030U,I5-4200U,I5-4210U,

I7-4500U,I7-4510U processors.

CPU Quantity

Only support 1 piece processor on the motherboard.

Memory

1*DDR3 Memory channel,up to 8GB RAM.

Network Card

1*Realtek 8111F Gigabit Network card,support 1 or 2 RJ45 LAN ports.

Audio

Realtek ALC662 HD digital audio decoder,support Line-out,Mic-in,SPDIF,

Speaker.

Graphics Card

Integrated Intel HD 4400 Graphics on CPU,support 4K(UHD),1080P(FHD),

H264,3D play.

Display

VGA,HDMI,LVDS(Dual 8),support synchronously or asynchronously three screen display.

Hard Disk

2*SATA3.0 , 1*MSATA3.0

Power Supply

DC 12V or DC 19 V;

Recommend DC12V 7A(Current:7A or more than 7A);

DC plug:

Heat Sink

Thin,cool,mute fan

Form Factor

Standard Mini-ITX 170*170*18mm(L*W*H)

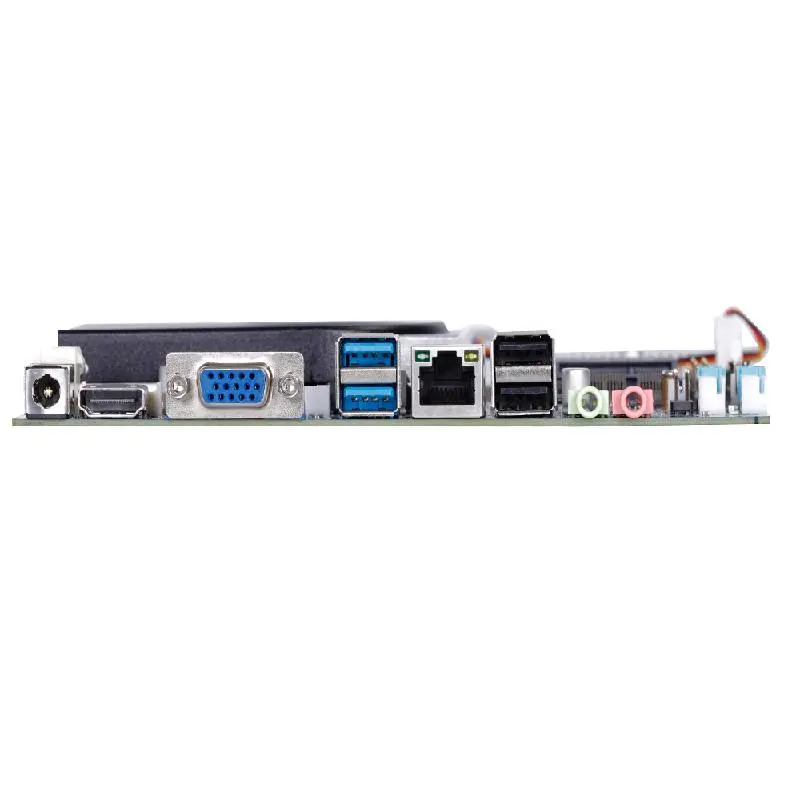

I/O Interfaces

1*DC-in, 1*HDMI ,1*VGA ,2*USB2.0 , 2*USB3.0 , 1*RJ45 LAN , 1*Line-out , 1*Mic-in.

Built-in Pins

1*24bit LVDS,1*VGA , 1*HDMI , 4*USB , 2*COM , 1*LPT , 2*FAN , 1*SIM Card slot , SPDIF.

Expansion Bus

2*Mini-PCIE slots,support WIFI,4G,Bluetooth,GPS,MSATA.

Operating System

Windows 7(32bit,64bit) , Windows 8.1 , Windows 10 , Linux.

System Monitor

Support CPU temperature monitor, fan speed,system temperature.

Watch dog

Watch dog programming, support hardware reset function (256 levels, 0~255 seconds).

BIOS

AMI BIOS;Support read only,power on,timing switch,remote switch,

intelligently identify devices.

Operating Environment

Working temperature :-20℃~60℃;

Relative humidity:5%~95%,non-condensation.

Fitted Chassis

HD4006,IPC6000,OPS-6600,OPS1000,IPC4000

Options

1 or 2 RJ45 LAN ports,2 or 6 COM pins,OPS slot,3G/4G/WIFI/Bluetooth module,Cable,RAM,SSD,HDD,etc.

Purchasing Information:

MOQ

1 piece

Net Weight

0.4KG/piece

Package Size

20*20*7CM for 1 piece

Payment Ways

T/T,Western Union,Alipay,Wechat Pay,Paypal,Alibaba Trade Assurance,

RMB Cash,etc.

Delivery Time

2~3 working days

Shipping Ways

DHL,Fedex,UPS,TNT,etc.

Warranty

3 years for motherboard;1 year for CPU,RAM,SSD,HDD,WIFI,4G,etc.

OEM/ODM

Welcome

Certificate

CE , CCC , ISO , MSDS , UN38.3 , UN3091 , POA
