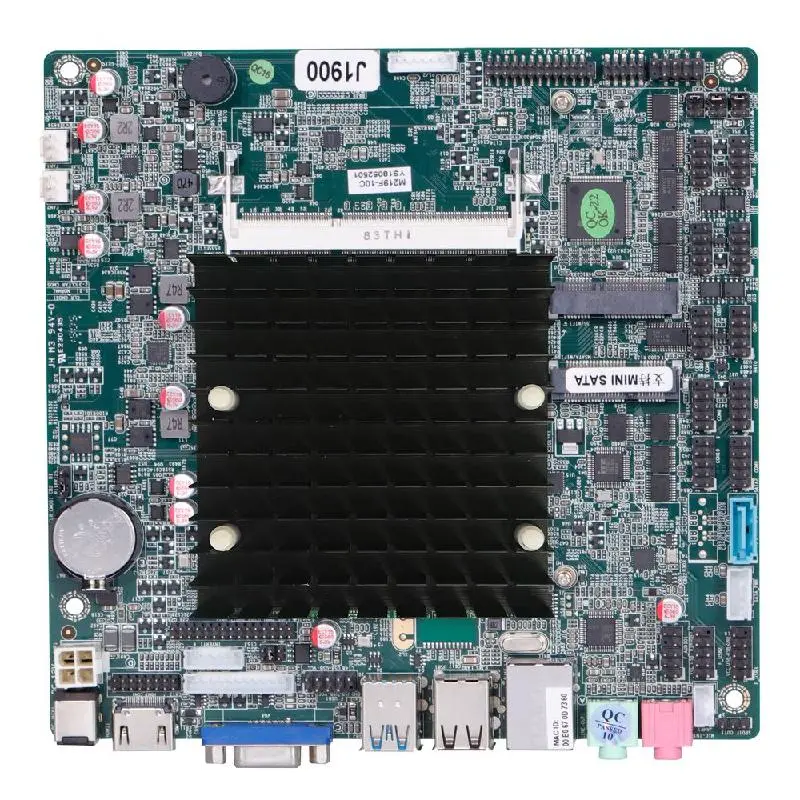

Model

M3J19

Processor

Support Intel Celeron J1900.

Chipset

Intel SOC single Chipset.

Memory

1x DDR3 Memory channel, support Max 8GB RAM.

Ethernet

Realtek 8111E 1000Mbps LAN,optional 2xLAN

Audio

Realtek ALC662 HD Audio,support Line-out,Mic-in,Spdif,Speaker

CPU Graphics

Intel HD Graphics,support 1080P(2K,FHD),H264,3D Play.

Display

VGA,HDMI,LVDS,support synchronously or asynchronously dual display.

Hard Disk

1xSATA 2.0,1xMSATA 2.0

Power Supply

DC 12V,recommend 5A(Or more than 5A).

CPU_Fan

Fanless(Heat sink),optional thin silent cool fan.

Form Factor

Mini-ITX ,170x170x18mm(L x W x H)

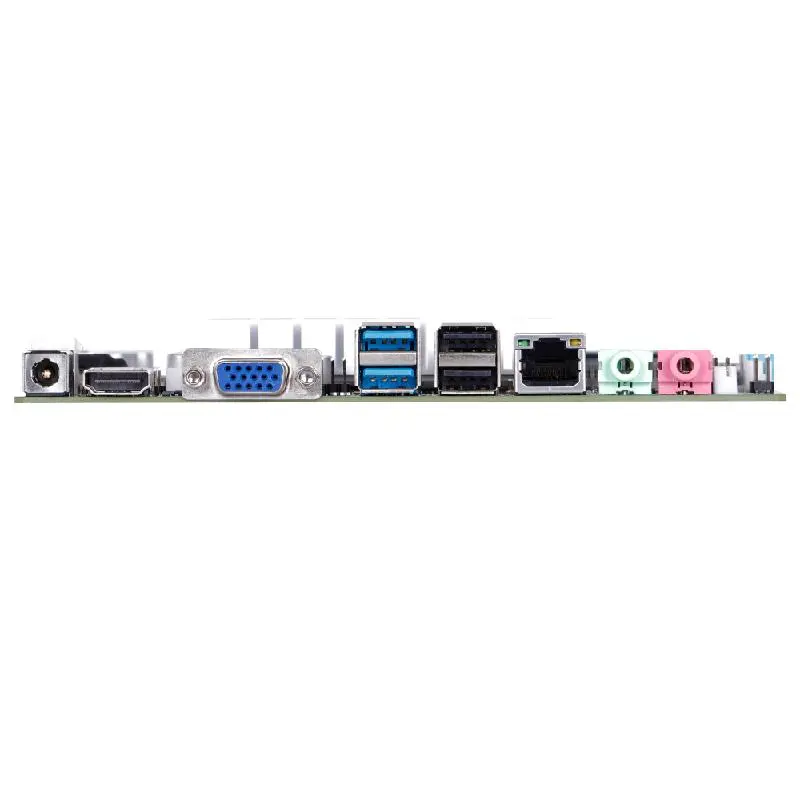

I/O Port

DC-in,HDMI,VGA,3xUSB2.0,1xUSB3.0,LAN,Line-out,Mic-in.

Built-in Pin

LVDS,VGA,HDMI,6xUSB,2xCOM(Optional 6xCOM/10xCOM,3xRS232/

RS485/RS422),PS/2,LPT,FAN,SIM Card slot ,GPIO ,SPDIF.

Expansion

1xMini-PCIE slot,support Wifi,3G/4G,Bluetooth,GPS,MSATA.

Temperature

-20℃ ~ 60℃(Working)            -20℃ ~ 70℃(Storage)

Operating Humidity

5-95% relative humidity,non-condensing.

Operating System

Support Windows 7 ,Windows 8 ,Windows 10 ,Linux, Android.

Fitted Case

HD4000,HD4001,IPC6000.

Architecture

X86 architecture

Watch dog

Watch dog programming, support hardware reset function (256 levels, 0~255 seconds).

BIOS

AMI BIOS;Support read only,power on,timing switch,remote switch,

intelligently identify devices.

Purchasing Information:

MOQ

1 piece

Net Weight

0.4KG/piece

Package Size

20*20*7CM for 1 piece

Payment Ways

T/T,Western Union,Alipay,Wechat Pay,Paypal,Alibaba Trade Assurance,

RMB Cash,etc.

Delivery Time

1~3 working days

Shipping Ways

DHL,Fedex,UPS,TNT,etc.

Warranty

3 years for motherboard;1 year for CPU,RAM,SSD,HDD,WIFI,4G,etc.

OEM/ODM

Welcome

Certificates

CE , CCC , ISO , MSDS , UN38.3 , UN3091 , POA
