Specification
| System | |
| Model | E-313-G6 |
| CPU | Intel J1900, 4/6/7/8 Core i3/i5/i7 CPU |
| Memory | DDR3L SODIMM x1，Max 16GB |
| Network | 6 x GbE RJ45 Intel i211/i210 |
| I/O | 4 x USB 1 x RJ45 COM 1 x DB9 COM 1 x HDMI 1 x Power LED, 1 x HDD LED 1 x Power Button, 1 x Reset Button 1 x Power input 1 x SIM 2 x antenna ports, for WIFI/3G/4G |
| Storage | 1 x MSATA 1 x HDD/SSD |
| Expansion slots | Mini-PCIe x 1 full card, onboard SIM card slot, support 3G/4G module, WIFI Bluetooth |
| Other | Support watchdog, one-key restore, diskless boot |
| Support system | Windows 7/8/10，WES 7/10，LINUX |
| structure | |
| Material | aluminum |
| Installation | Support desktop and wall-mounted |
| size | 209 x 150 x 57 mm |
| weight | 1.35KG |
| Usage Environment | |
| Operating temperature | -20℃ to +60℃ |
| Storage temperature | -30℃ to +70℃ |
| Storage humidity | 10%~90% @30℃, no condensation |
| power supply | |
| Power Input | 12V |
Optional Configuration
| Material Code | describe |
| E-313-G6/1900 | E-313-G6 | J1900 | DDR3L SODIMM x1 | 1 x USB3.0，3 x USB2.0 | 6x LAN | 2 x COM | 1xPower Adapter |
| E-313-G6/4200 | E-313-G6 | I5 4200U | DDR3L SODIMM x1 | 2 x USB3.0，2 x USB2.0 | 6x LAN | 2 x COM | 1xPower Adapter |
| E-313-G6/4500 | E-313-G6 | I7 4500U | DDR3L SODIMM x1 | 2 x USB3.0，2 x USB2.0 | 6x LAN | 2 x COM | 1xPower Adapter |
| E-313-G6/6200 | E-313-G6 | I5 6200U | DDR3L SODIMM x1 | 4 x USB3.0 | 6 x LAN | 2 x COM | 1xPower Adapter |
| E-313-G6/6360 | E-313-G6 | I5 6360U | DDR3L SODIMM x1 | 4 x USB3.0 | 6 x LAN | 2 x COM | 1xPower Adapter |
| E-313-G6/7020 | E-313-G6 | I3 7020U | DDR3L SODIMM x1 | 4 x USB3.0 | 6 x LAN | 2 x COM | 1xPower Adapter |
| E-313-G6/7100 | E-313-G6 | I3 7100U | DDR3L SODIMM x1 | 4 x USB3.0 | 6 x LAN | 2 x COM | 1xPower Adapter |
| E-313-G6/7200 | E-313-G6 | I5 7200U | DDR3L SODIMM x1 | 4 x USB3.0 | 6 x LAN | 2 x COM | 1xPower Adapter |
| E-313-G6/7500 | E-313-G6 | I7 7500U | DDR3L SODIMM x1 | 4 x USB3.0 | 6 x LAN | 2 x COM | 1xPower Adapter |
| E-313-G6/8350 | E-313-G6 | I5 8350U | DDR3L SODIMM x1 | 4 x USB3.0 | 6 x LAN | 2 x COM | 1xPower Adapter |

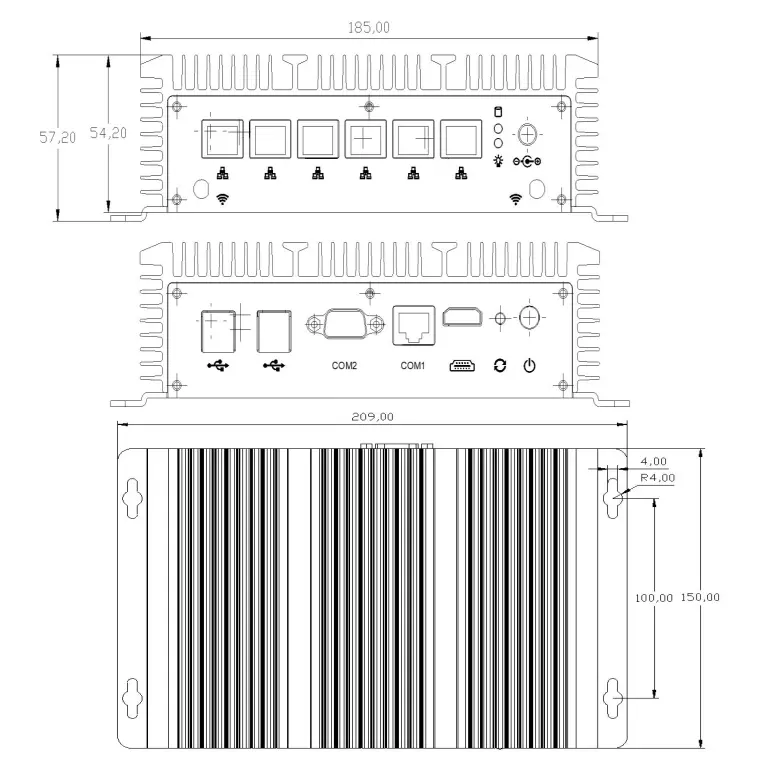

Size
