| System | |
| Model | E-34 |
| CPU | Intel 4/6/7/8 Core i3/i5/i7 CPU |
| Memory | E-34(4)：DDR3L SODIMM x1，Max 8GB E-34(6/7/8)：DDR4 SODIMM x2，Max 32GB |
| Network | 2 x GbE RJ45 Intel i211/i210 |

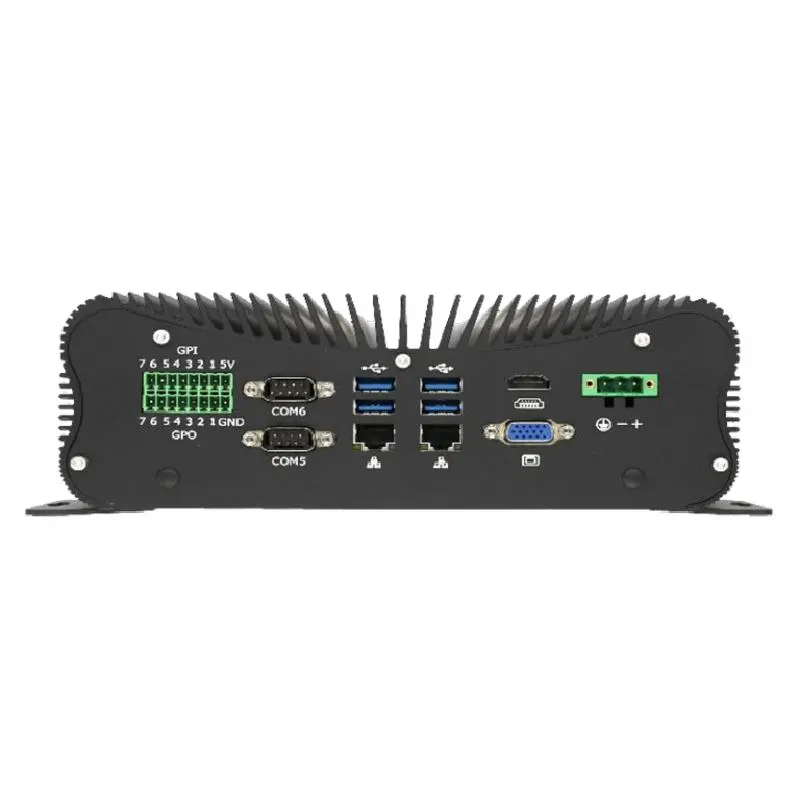

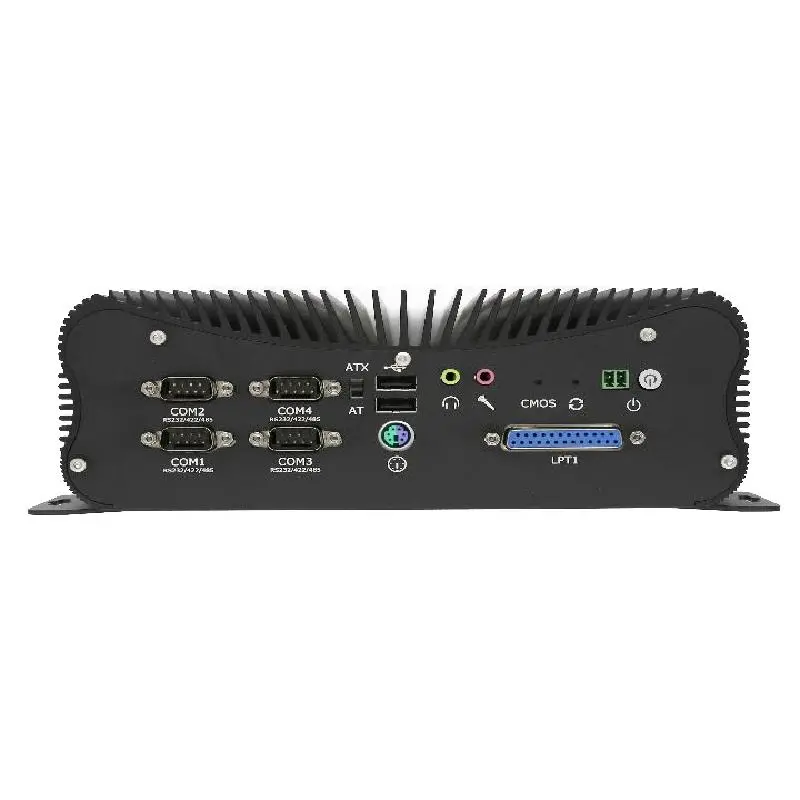

| I/O | 4 x USB3.0，2 x USB2.0 6 x DB9 COM（4 * RS485/RS422） 1 x LPT 1 x HDMI，1 x VGA 1 x PS2 14 x GPIO 1 x Power Button, 1 x Reset Button，1 x Clear CMOS Button 1 x 3pin,support 9-36V input 1 x Headphone jack，1 x microphone 1 x Dip switch，Support ATX/AT boot mode selection 2 x antenna ports, for WIFI/3G/4G |
| storage | 1x MSATA 1x HDD/SSD 1x M.2 NVME 2280（仅EPC-312-G678） |
| Expansion slots | Mini-PCIe x 1 half card, supports WIFI and Bluetooth Mini-PCIe x 1 full card (with SIM card holder), support 3G/4G module, WIFI Bluetooth Expansion IO x 1, support LPC, USB, PCIE |
| other | Support watchdog, one-key restore, diskless boot |
| Support system | Windows 7/8/10，WES 7/10，LINUX |
| structure | |
| Material | aluminum |
| Installation | Support desktop and wall-mounted |
| size | 249 x 150 x 86 mm |
| weight | 2.2KG |
| Usage Environment | |
| Operating temperature | -20℃ to +60℃ |
| Storage temperature | -30℃ to +70℃ |
| Storage humidity | 10%~90% @30℃,No condensation |
| power supply | |
| Power Input | 9-36V |
Optional Configuration
| Material Code | describe |
| EPC-312-G4/4020 | E-34-G4 | I3 4020U | DDR3L SODIMM x1 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM | 1xPower Adapter |
| EPC-312-G4/4200 | E-34-G4 | I5 4200U | DDR3L SODIMM x1 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM | 1xPower Adapter |
| EPC-312-G4/4300 | E-34-G4 | I5 4300U | DDR3L SODIMM x1 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM | 1xPower Adapter |
| EPC-312-G4/4500 | E-34-G4 | I7 4500U | DDR3L SODIMM x1 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM | 1xPower Adapter |
| EPC-312-G4/4650 | E-34-G4 | I7 4650U | DDR3L SODIMM x1 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM | 1xPower Adapter |
| EPC-312-G678/6157 | E-34-G678 | I3-6157U | DDR4 SODIMM x2 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM |1xPower Adapter |
| EPC-312-G678/6200 | E-34-G678 | I5-6200U | DDR4 SODIMM x2 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM |1xPower Adapter |
| EPC-312-G678/6360 | E-34-G678 | I5-6360U | DDR4 SODIMM x2 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM |1xPower Adapter |
| EPC-312-G678/6567 | E-34-G678 | I7-6567U | DDR4 SODIMM x2 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM |1xPower Adapter |
| EPC-312-G678/7020 | E-34-G678 | I3-7020U | DDR4 SODIMM x2 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM |1xPower Adapter |
| EPC-312-G678/7100 | E-34-G678 | I3-7100U | DDR4 SODIMM x2 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM |1xPower Adapter |
| EPC-312-G678/7200 | E-34-G678 | I5-7200U | DDR4 SODIMM x2 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM |1xPower Adapter |
| EPC-312-G678/7267 | E-34-G678 | I5-7267U | DDR4 SODIMM x2 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM |1xPower Adapter |
| EPC-312-G678/7500 | E-34-G678 | I7-7500U | DDR4 SODIMM x2 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM |1xPower Adapter |
| EPC-312-G678/7567 | E-34-G678 | I7-7567U | DDR4 SODIMM x2 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM |1xPower Adapter |
| EPC-312-G678/8350 | E-34-G678 | I5-8350U | DDR4 SODIMM x2 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM |1xPower Adapter |
| EPC-312-G678/8550 | E-34-G678 | I7-8550U | DDR4 SODIMM x2 | 4 x USB3.0，2 x USB2.0 | 2x LAN | 6 x COM |1xPower Adapter |
Note: Customized services can be provided according to customer needs

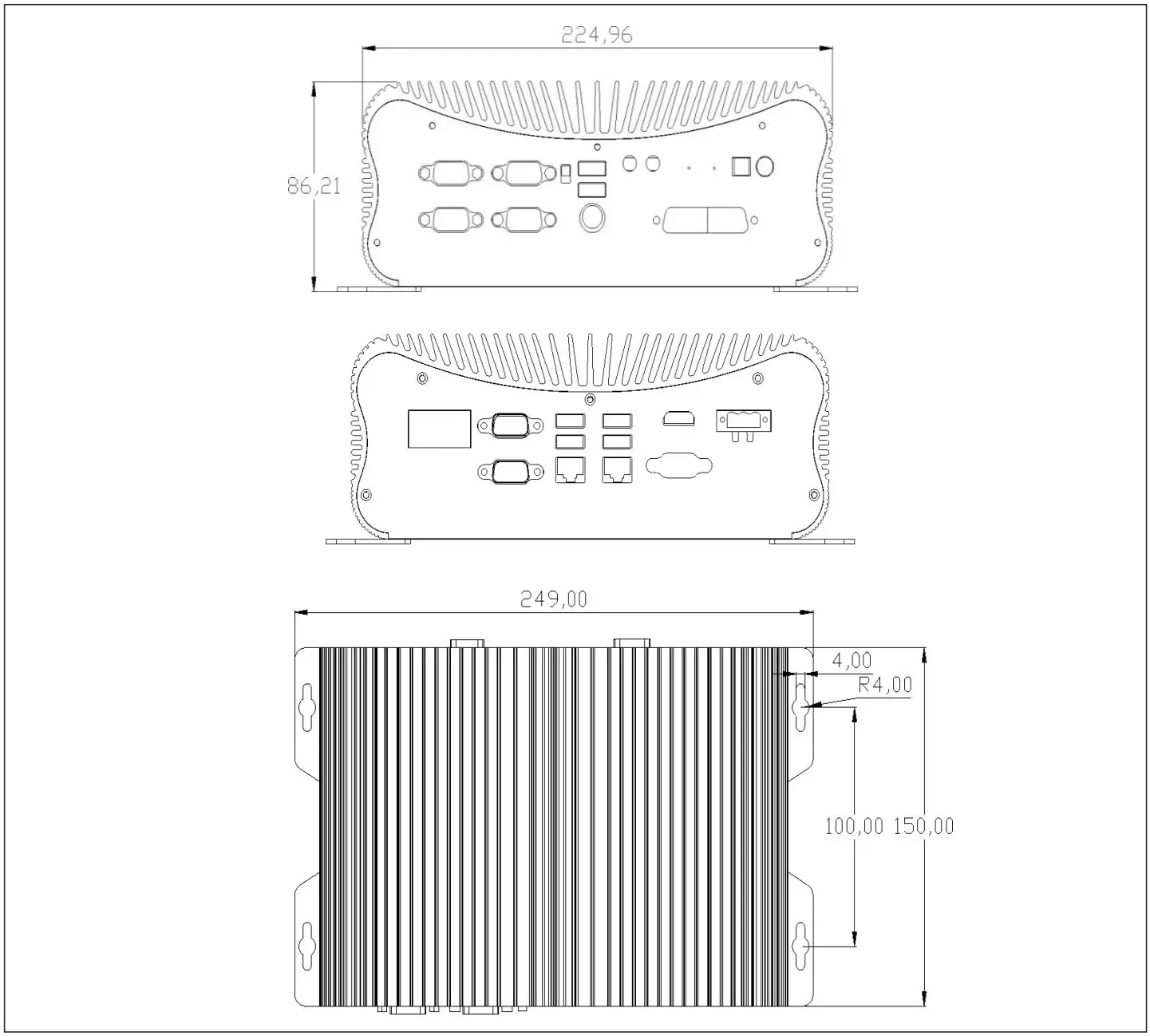

Size:
