| Model | E10 |
| CPU | Integrated Celeron N100 0.8 GHz quad-core processor |
| Memory | 1*SO DIMM slot, single-channel 4800 MHz DDR5 memory Maximum support 16GB |
| Storage | 1*SATA3.0 hard disk interface and power supply interface 1*M2 key-M2280 adaptive slot |
| Expansion Bus | 1*2 button E2230 supports wireless network/Bluetooth |
| Network | 2*i226 network cards, can be used with I0 board to expand 4*i226 network ports |

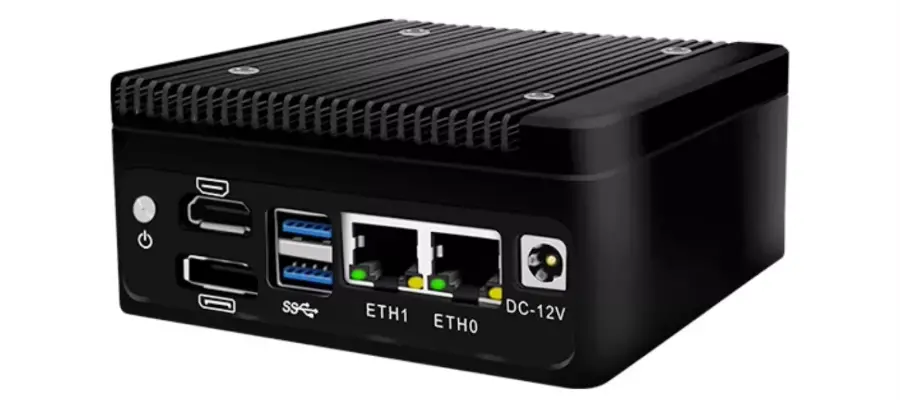

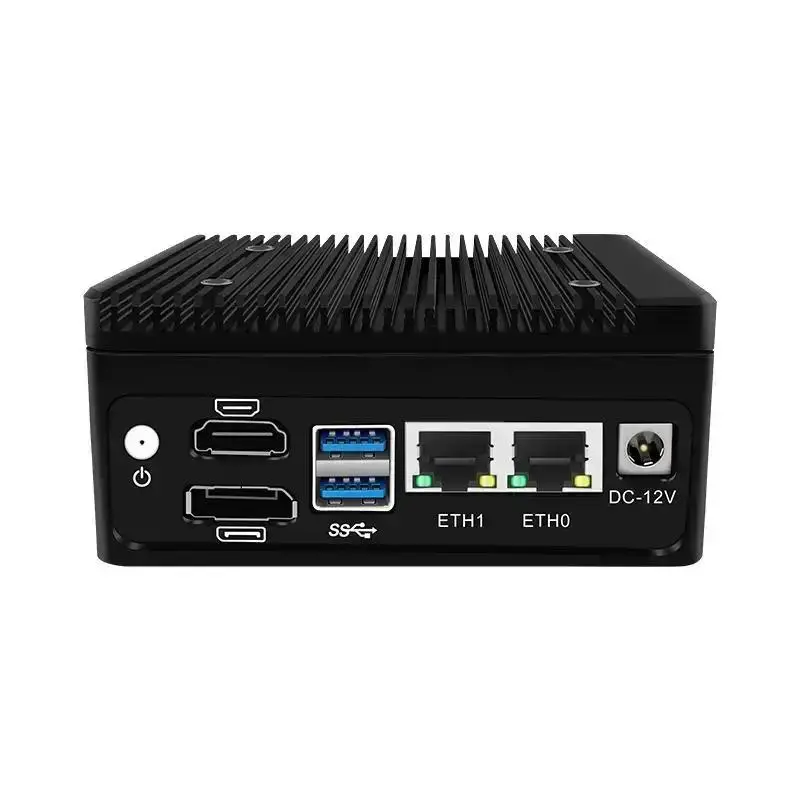

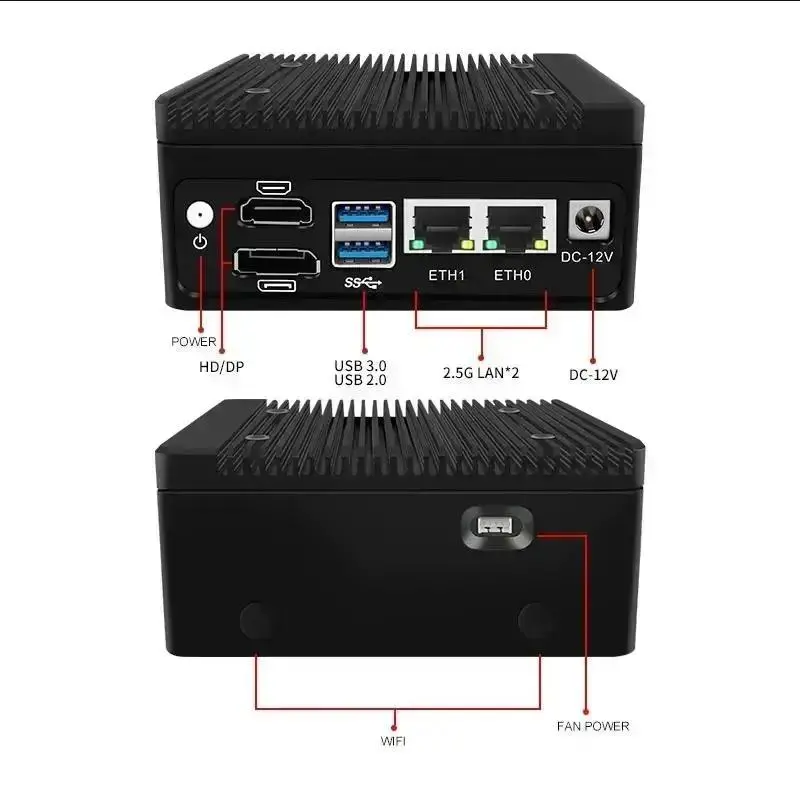

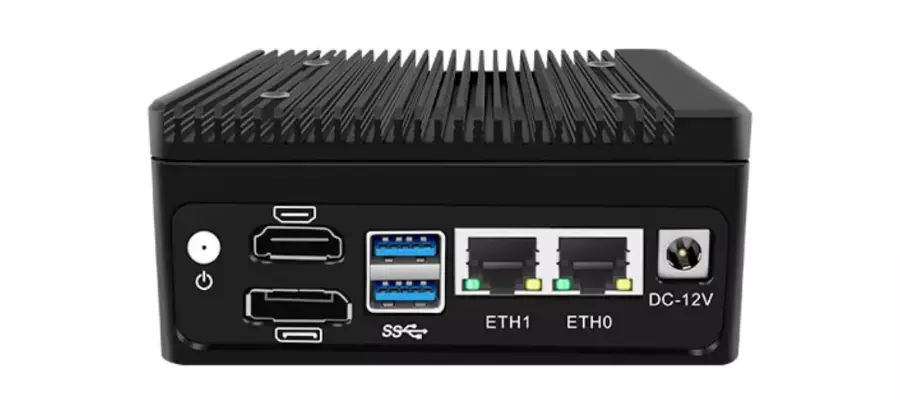

| Front I/O | 2*2.5G network ports 1*DC12V 1*USB3.0/1*USB2.0 1*power button |

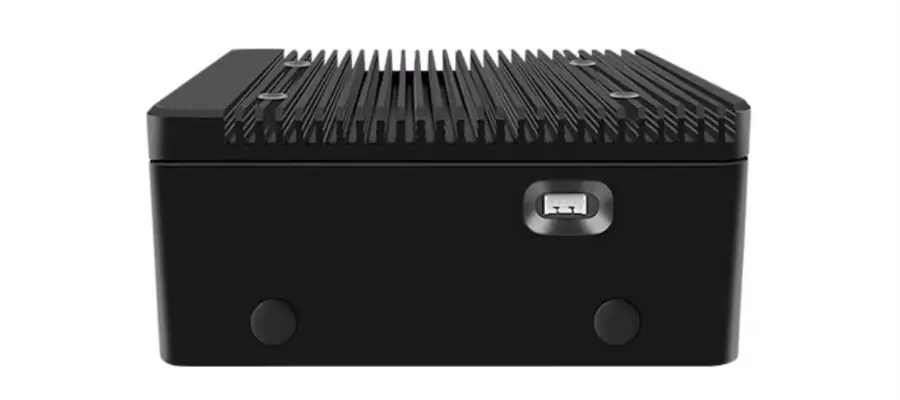

| Rear I/O | 2 x WIFI ports 1 x fan socket |
| Power | DC_12V |

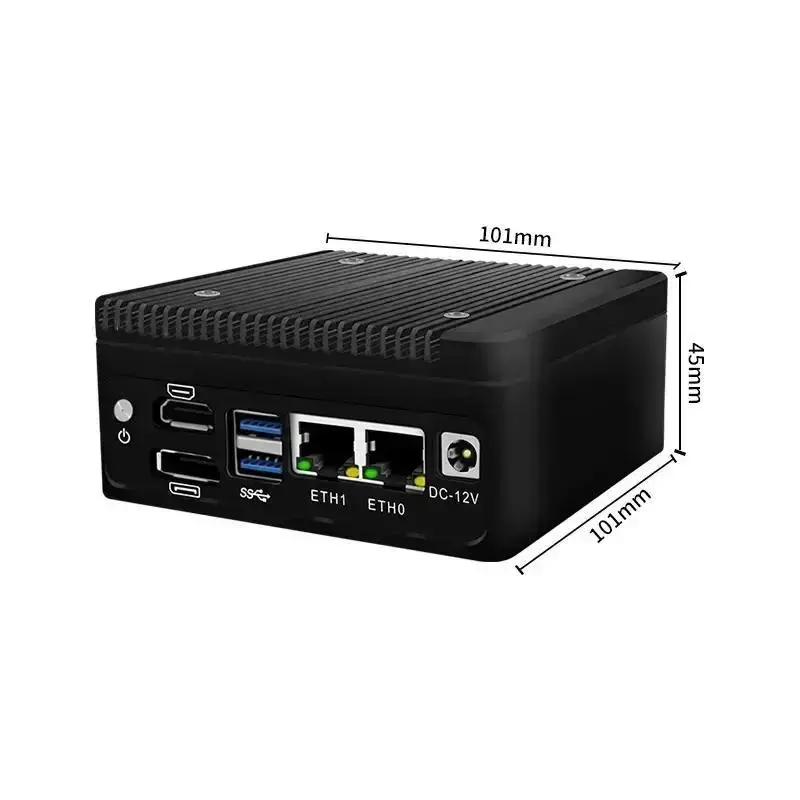

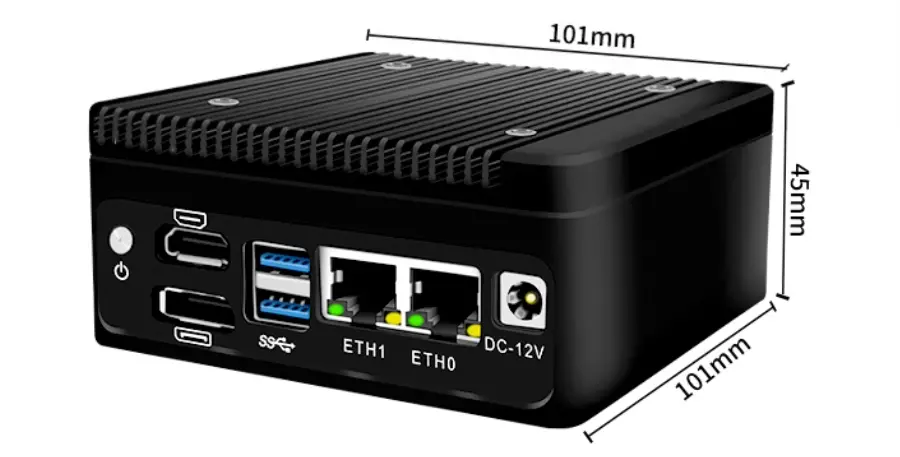

| Dimension | 101X101X45mm |
