Specifications | ||
name | 15.6 inch Industrial Tablet PC | |
processor | Optional Intel® C e l e r o n ®J 190 0or the first4 / 7 / 8 / 1 1Generation C o r ei 3 / i 5 / i 7C P U | |
system memory | One SODIMM slot, maximum support 16GB 1 | |
network | 2 x GbE RJ452 | |
I / Ointerface | 3 x USB2.0, 1 x USB3.0 2 x DB-9 COM1&COM2,RS-232/485 2 x 3-wire COM3&COM4 RS-232/485 Phoenix 2 x 3-wire COM5&COM6 RS-232 Phoenix 1 x Audio Line-out 2 x 8Ω 1W output (optional) 1 x phoenix remote switch can be connected to the optional port 1 x HDMI 1 x 12bit GPIO (optional) | |
storage | 1 x SATA ( 2.5” SATA ) | |
expansion slot | Mini-PCIe x1 half card，support WIFI blue bluetooth | |
watchdog timer | 1~255 seconds programmable setting | |
support system structure | Windows® 7 /8/10, WES 7, LINUX | |
material | aluminum | |
installation method | VESA 75/ panel mount | |
size | 318.8 x 245.0 x 54.5mm | |
weight use environment | TBD | |
Operating temperature | 0°C ~ 60°C | |
storage temperature | - 30°C ~ 70°C | |
storage humidity power supply | 10~90% @30°C, non-condensing | |
power input display screen | DC 9 ~ 36V 2-pin Phoenix terminal | |
LCD type | 12.1" TFT-LCD | |
resolution | 1024 x 768 | |
maximum color | 16.2M | |
brightness | 500 cd/m² | |
Viewing angle ( CR>=10 ) | ~ 85° (H), -85~85° (V) | |
backlight | led | |
Backlight life ( hours ) touch screen | 30,000 | |
type | 5 -wire resistive | 10 point capacitive screen |
Transmittance | 78% | more than 85% |
service life | 10 million clicks with 250 grams of strength | Hardness 7H |

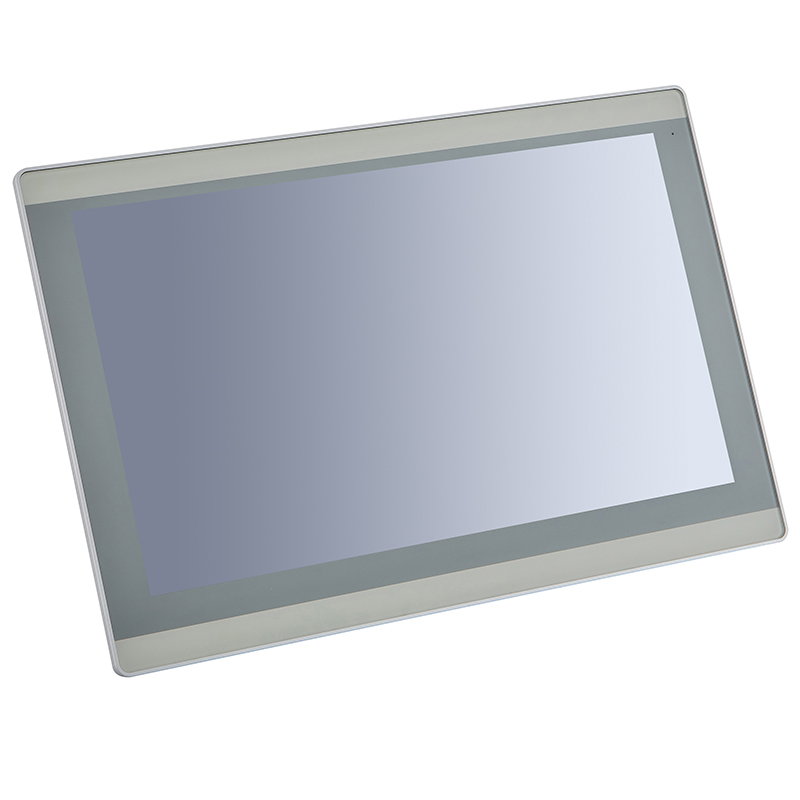

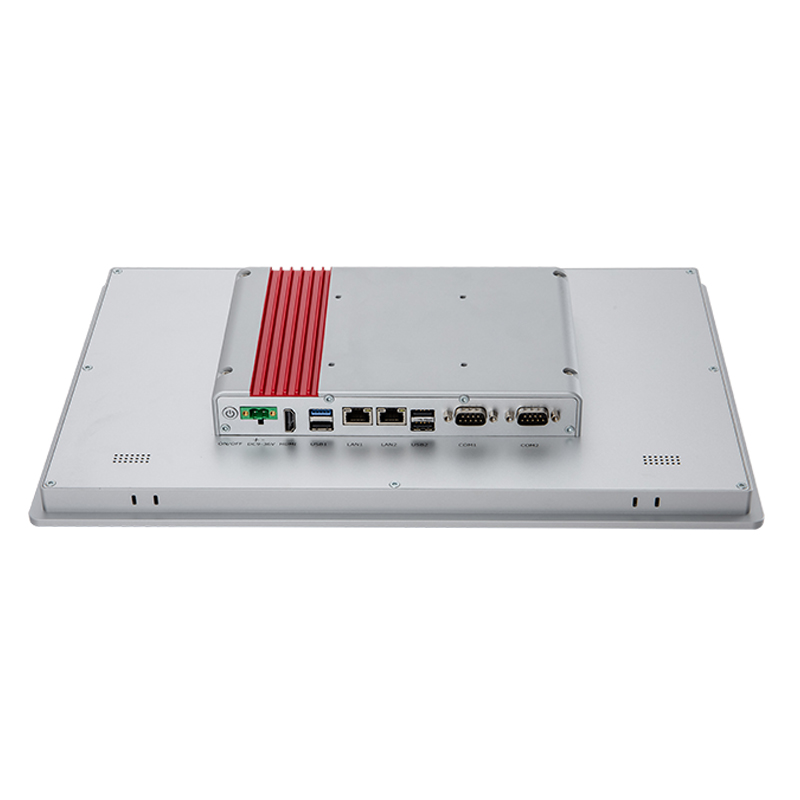

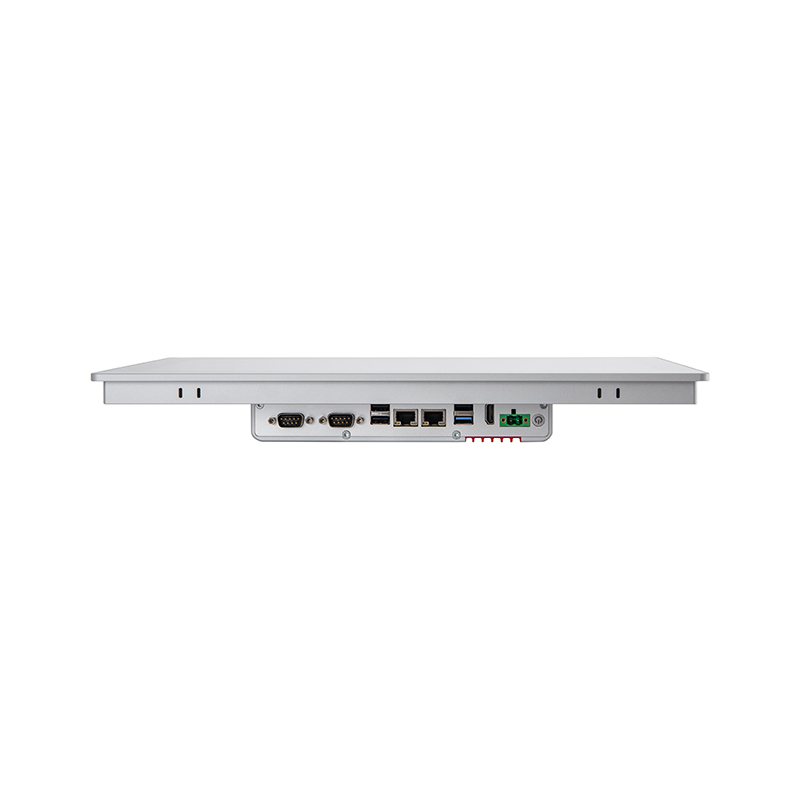

15.6 inch industrial panel pc,industrial all-in-one pc touch screen
