| ROM-2620WD-MDA1E | ||
| Processor | CPU | NXP i.MX 8ULP Cortex-A35 Dual core |
| Processor | MCU | Linear/ Dust Network ARM Cortex-M3 Processor |
| Ethernet | Chipset | 1 x NXP i.MX 8ULP integrated RMII |
| Ethernet | Speed | 10/100 Mbps |
| Memory | Technology | LPDDR4 2000MT/s |
| Memory | Capacity | on-board 1G/2G |
| Memory | Flash | 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information |
| Display | LVDS/MIPI-DSI | 1 x 4 lane MIPI-DSI or 1 x Dual channel LVDS |
| Display | Graphic Engine | GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. |
| RTC | RTC | Yes |
| Security | TPM | 2.0 |
| Audio | Interface | Mic-in, Line-out |
| I/O | USB | 1 USB 2.0, 1 USB2.0 OTG |
| I/O | M.2 | 1 M.2 Key E Connector (USB, UART, SDIO Option) |
| I/O | COM Port | 2 (1 x RS232, 1 x RS232/ 422/ 485) |
| I/O | Console Port | 1 |
| I/O | GPIO | 8 |
| I/O | PWM | 2 |
| I/O | I2C | 2 by Pin Header |
| I/O | Camera Input | 1 x 4-Lane MIPI-CSI2 |
| Power Consumption | Max. | 1.62W |
| Power | Power Supply Voltage | 12V |
| Mechanical and Environmental | Operating Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Operating System | Linux | Yocto Linux |

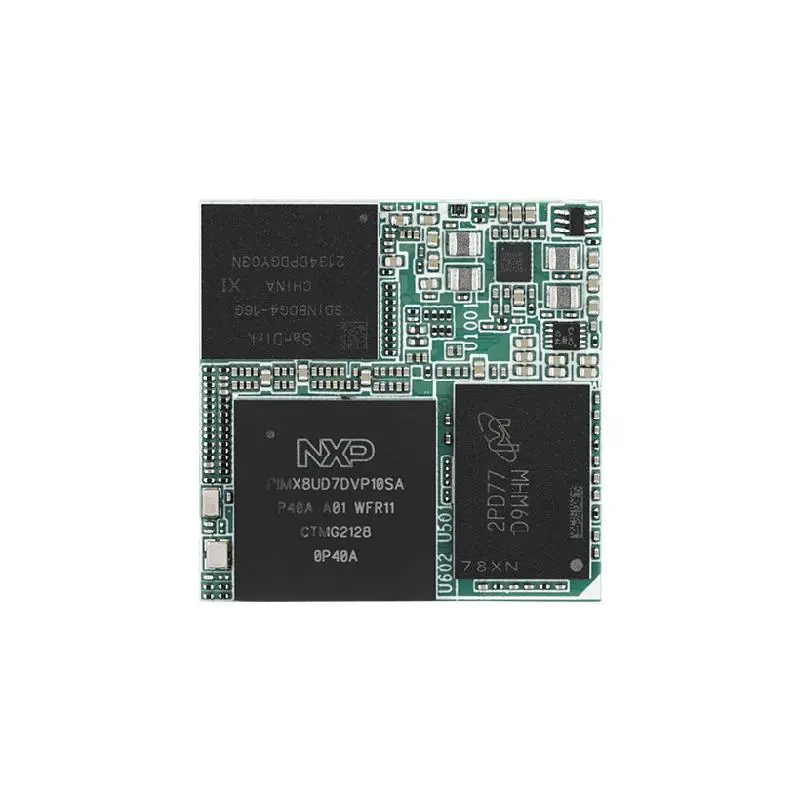

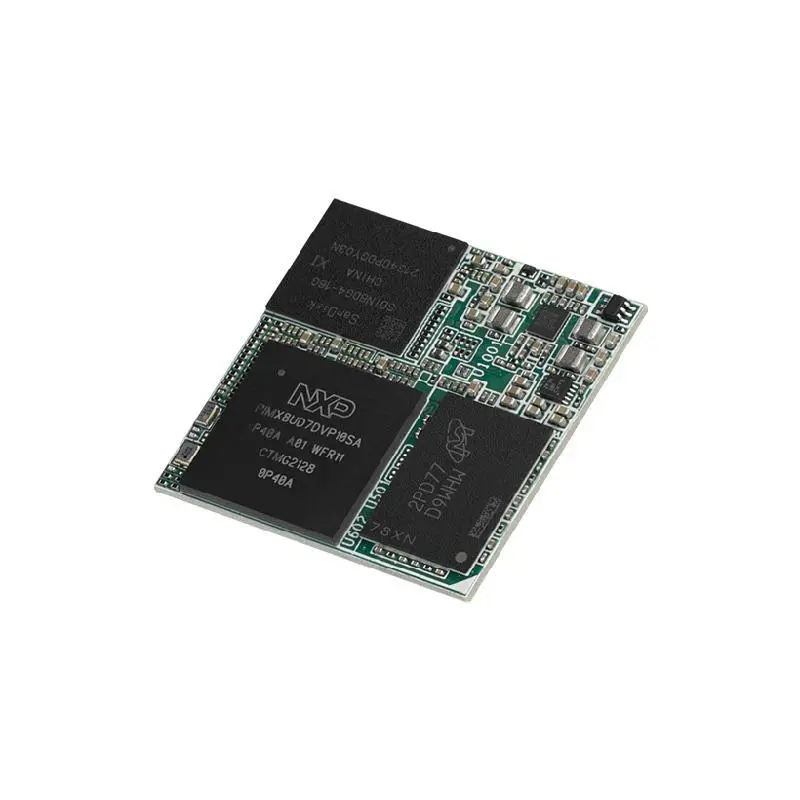

Advantech ROM-2620 NXP i.MX 8ULP Cortex®-A35 OSM 1.1 Computer-on-Module
