Advantech ROM-7420 NXP ARM Cortex-A9 i.MX6 Qseven Module - industrial computer

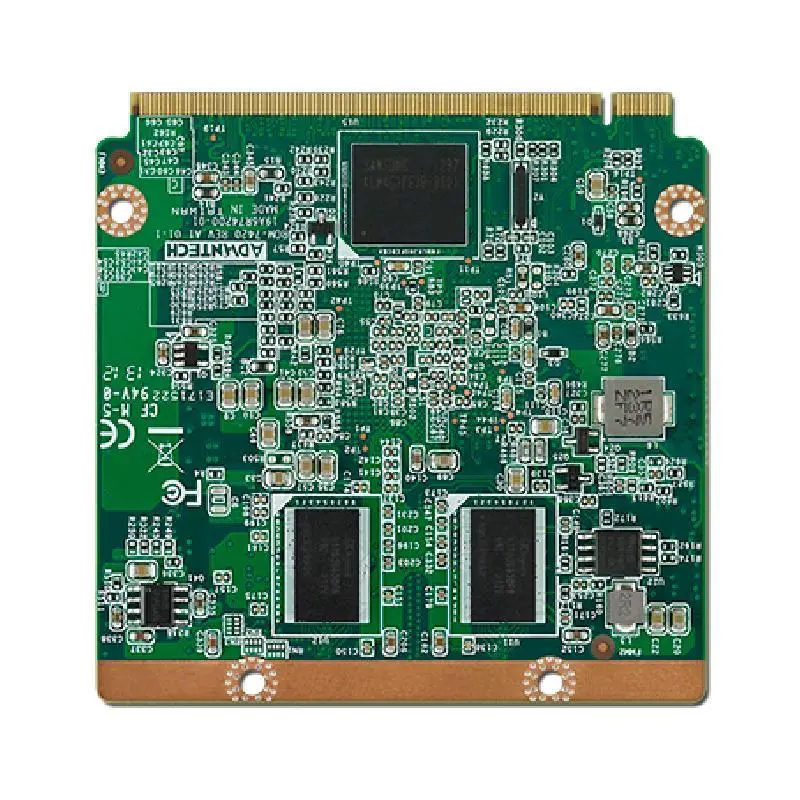

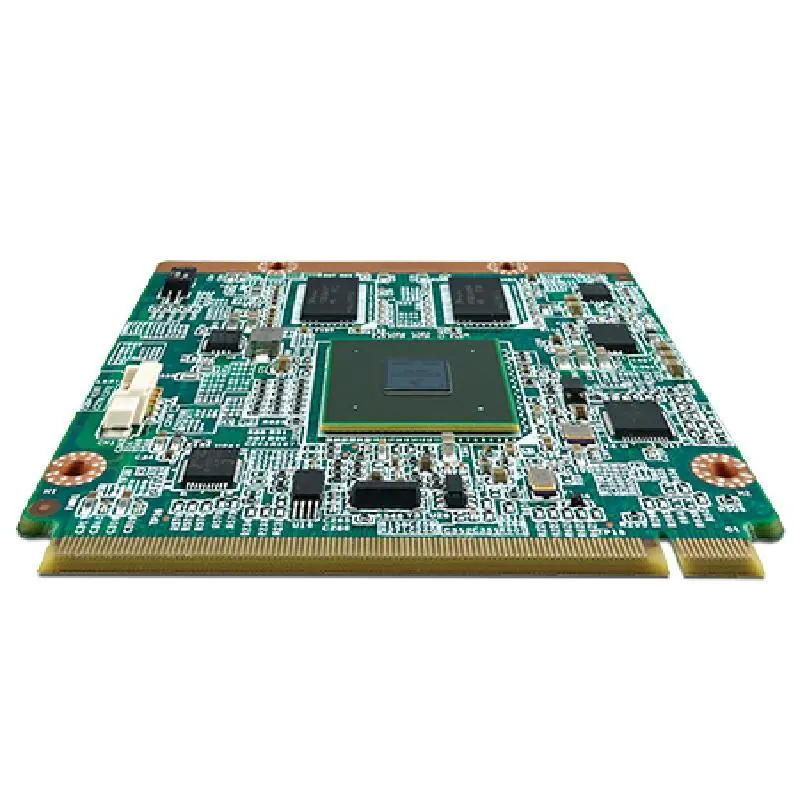

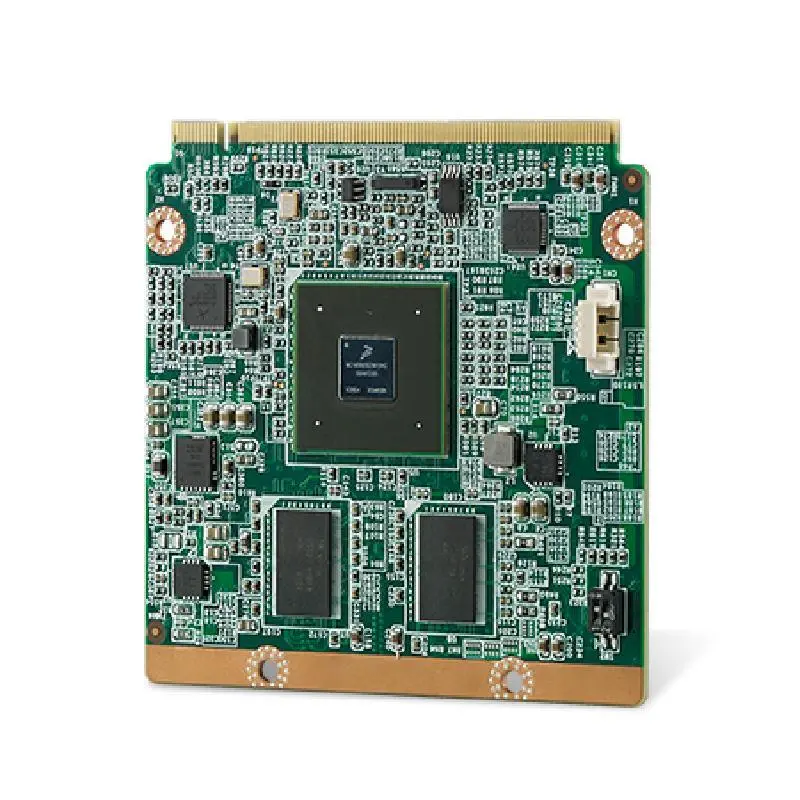

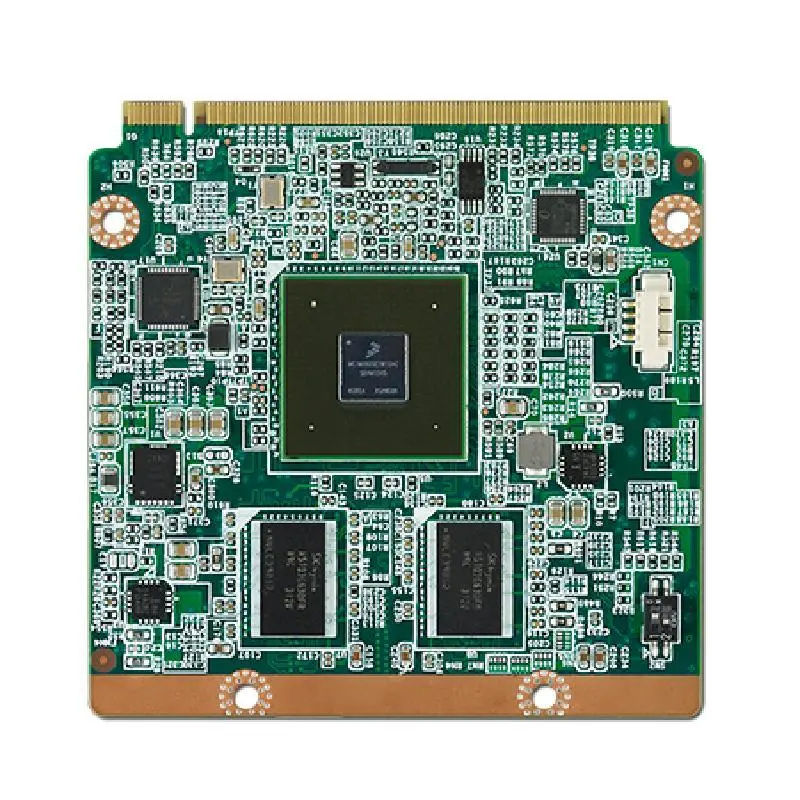

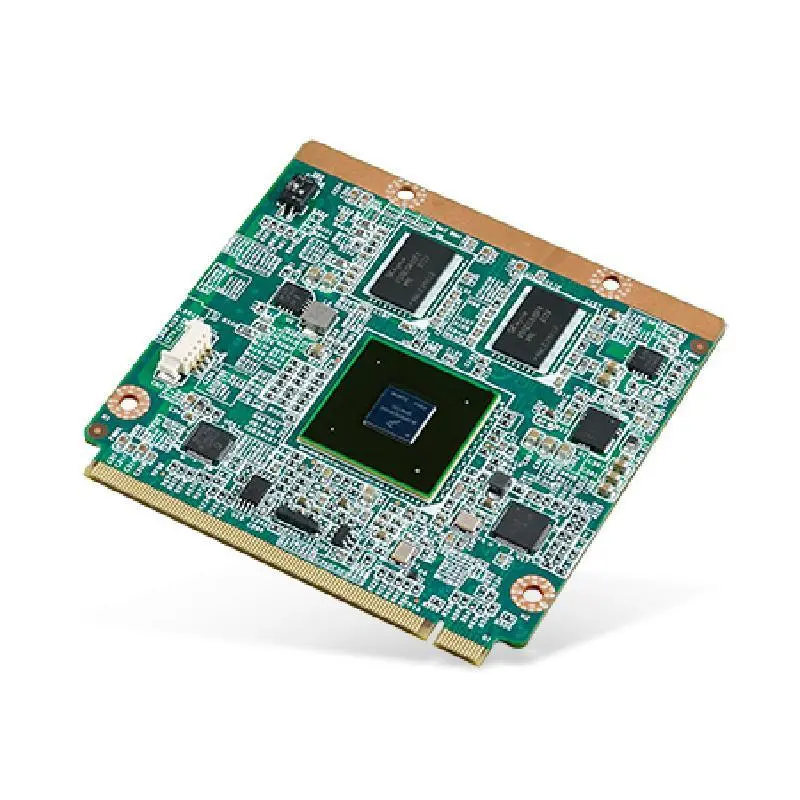

Advantech ROM-7420 NXP ARM Cortex-A9 i.MX6 Qseven Module

NXP ARM Cortex™-A9 i.MX6 Dual 1 GHz high performance processor

Onboard DDR3 1 GB

Onboard eMMC NAND Flash 16 GB

Supports OpenGL ES 2.0 and OpenVG™ 1.1 hardware accelerators, full HD 1080p video codec

VGA, HDMI, 24bit LVDS

2 CAN, 4 UART, 2 I2C, 8 GPIO

2 USB, 1 SD/eMMC

1 10/100/1000 Mbps Ethernet; 1 PCIe x 1, Gen 2

Optional thermal solution
