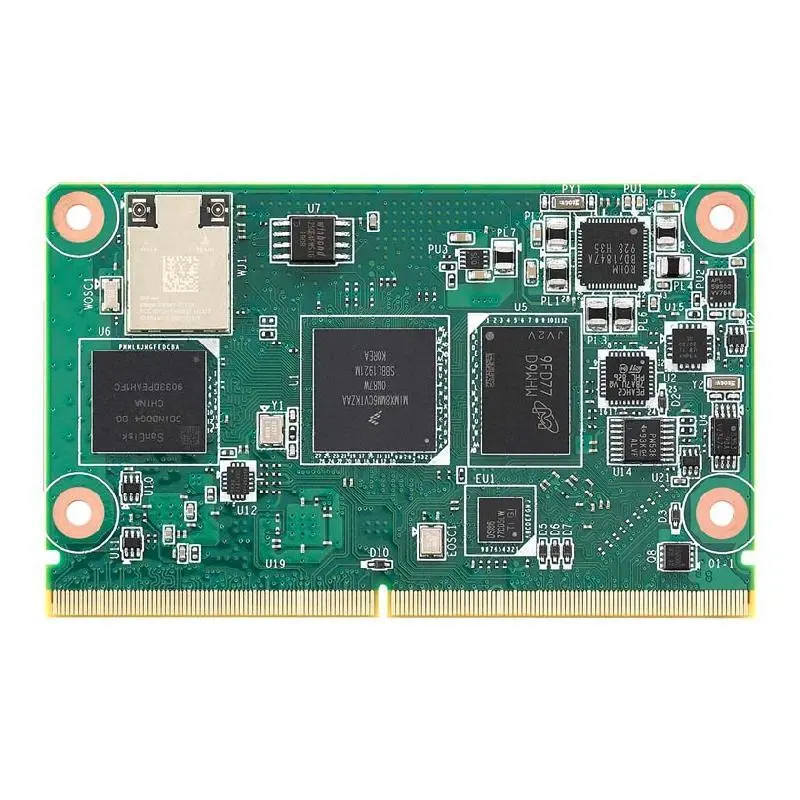

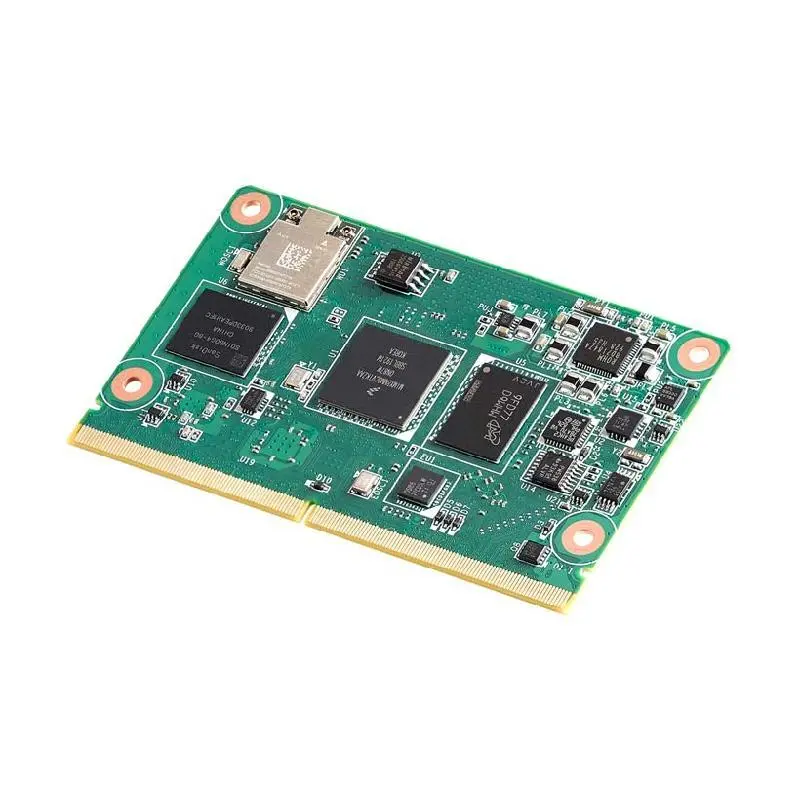

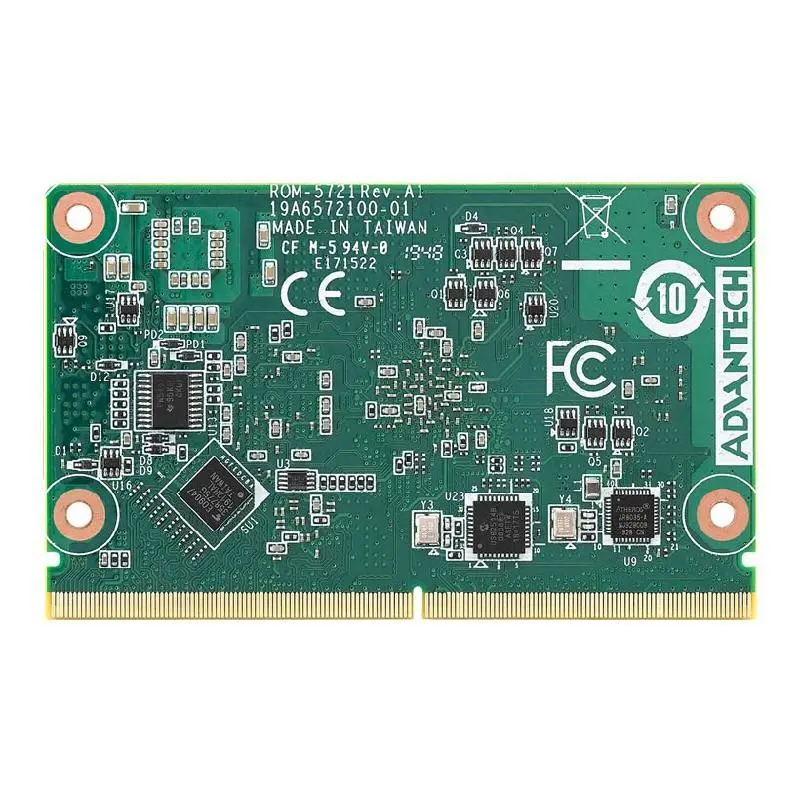

Advantech ROM-5721 NXP i.MX8M Mini Cortex®-A53 SMARC 2.0/2.1 Computer-on-Module

NXP i.MX 8M Mini processor with up to 4 Arm Cortex A53 cores

Onboard 2GB LPDDR4 memory and eMMC 8GB

1 x Dual channel LVDS; 1 x 4 lane MIPI-CSI

4 x USB2.0, 1 x USB 2.0 OTG, 4 x UART, 4 x I2C, 12 x GPIO, 1 x PCIe2.0, 1x Gigabit LAN

Support OpenGL ES 2.0/1.1 by hardware accelerators

Low power consumption design

		ROM-5721CQ-REA2E	ROM-5721CD-RDA2E	ROM-5721CS-RDA2E	ROM-5721WQ-QEA2E	ROM-5721WD-QDA2E	ROM-5721WS-QDA2E
Processor	CPU	NXP ARM® Cortex®-A53 i.MX8M Mini Quad	NXP ARM® Cortex®-A53 i.MX8M Mini Dual	NXP ARM® Cortex®-A53 i.MX8M Mini Solo	NXP ARM® Cortex®-A53 i.MX8M Mini Quad	NXP ARM® Cortex®-A53 i.MX8M Mini Dual	NXP ARM® Cortex®-A53 i.MX8M Mini Solo
Memory	Max. Capacity	2GB	2GB	1GB	2GB	2GB	1GB
Display	LVDS/MIPI-DSI	1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS	1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS	1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS	1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS	1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS	1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS
