| ROM-5620WU-OEA1E | ||
| Memory | Technology | Onboard LPDDR4-2400 |
| Memory | Capacity | On-board LPDDR4 2GB |
| Processor | CPU | NXP ARM® Cortex®-A35 i.MX 8X Quad Plus |
| Memory | Flash | 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information |
| Display | LVDS | 2 single channel LVDS(1080p) or 2 4-lane MIPI DSI |
| Display | Graphic Engine | Vivante GC7000 Lite. Support OpenGL ES 1.1, 2.0, 3.0, 3.1, Open CL 1.2, and Vulkan |
| Display | H/W Video Codec | Decoder: H.265(4K30) & H.264(1080p60), Encoder: H.264(1080p30) |
| Ethernet | Chipset | 2 x NXP i.MX 8X integrated RGMII |
| Watchdog Timer | WatchDog Timer | 1~6553s, default 60s, power on/off 1s |
| I/O | SATA | N/A |
| I/O | USB | 1 USB 3.0, 1 USB 2.0 Host, 1 USB 2.0 OTG |
| I/O | Audio | 2 x I2S |
| I/O | SPDIF | N/A |
| I/O | SDIO | 1x |
| I/O | Serial port | 3 UART(1 x 4-wire, 2 x 2-wire) |
| I/O | SPI Bus | 2 SPI |
| I/O | CAN | 2 |
| I/O | GPIO | 12 |
| I/O | I2C Bus | 4 I2C |
| I/O | Camera Input | 1 x 4-Lane MIPI-CSI2 |
| Power | Power Supply Voltage | 4.75~5.25V |
| Environment | Operational Temperature | -40° C ~ 85° C |
| Physical | Dimension (mm) | 82 x 50 mm |
| Operating System | Linux | Yocto Linux & Android |
| Certification | EMC | CE/FCC Class B |

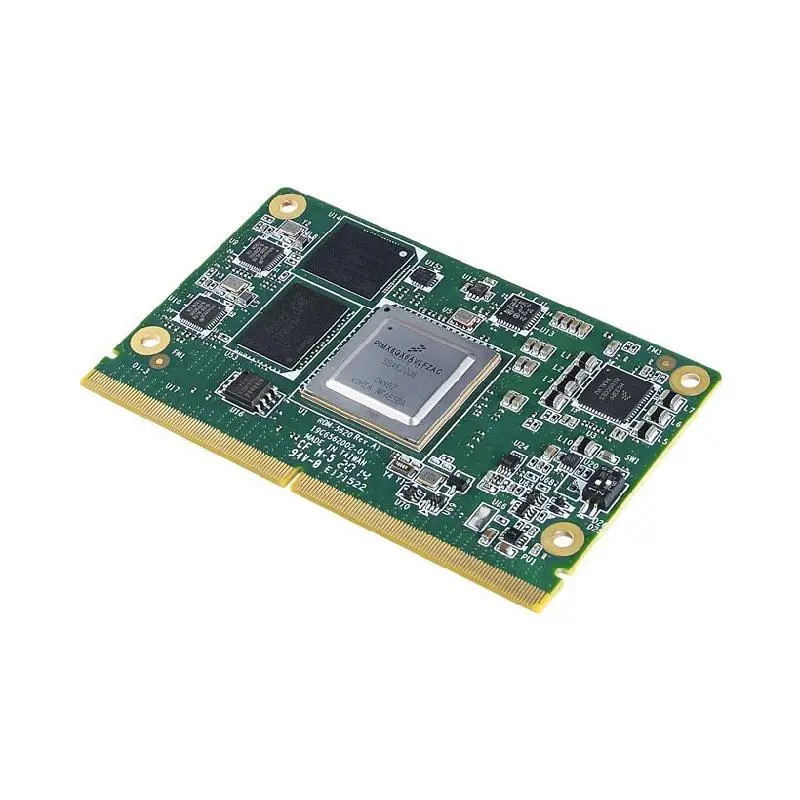

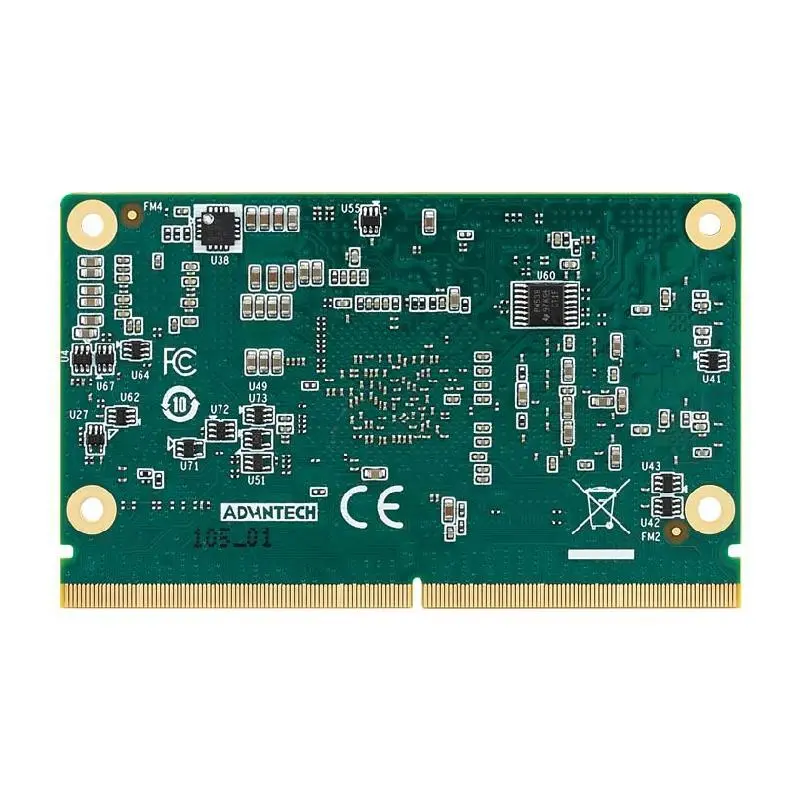

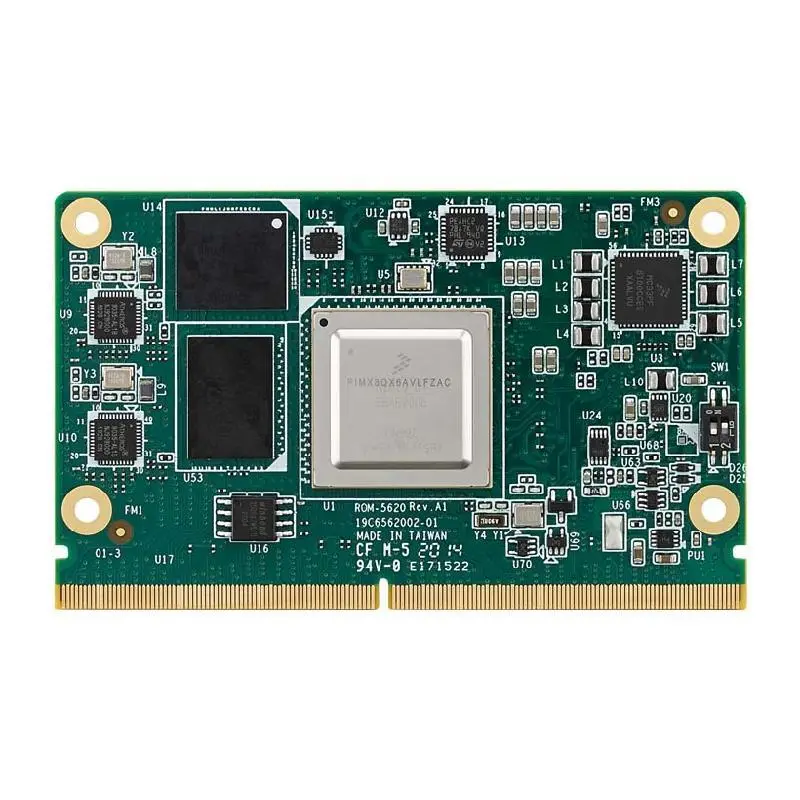

Advantech ROM-5620 NXP i.MX8X Cortex®-A35 SMARC 2.0/2.1 Computer-on-Module
