| RSB-3810CO-FCA1E | RSB-3810CO-FUA1E | RSB-3810WO-FCA1E | ||
| Processor | CPU | MediaTek Genio 1200 | MediaTek Genio 1200 | MediaTek Genio 1200 |
| Memory | Technology | LPDDR4 4000MT/s | LPDDR4 4000MT/s | LPDDR4 4000MT/s |
| Memory | RAM | 8GB | 8GB | 8GB |
| Memory | Flash | 16/32 GB eMMC NAND Flash for O.S. and boot loader, 8 MB SPI NOR Flash | 16/32 GB eMMC NAND Flash for O.S. and boot loader, 8 MB SPI NOR Flash | 16/32 GB eMMC NAND Flash for O.S. and boot loader, 8 MB SPI NOR Flash |
| Graphics | HDMI | 1 HDMI 2.0, 4K60 | 1 HDMI 2.0, 4K60 | 1 HDMI 2.0, 4K60 |
| Display | LVDS/MIPI-DSI | 1 dual channel LVDS | 1 dual channel LVDS | 1 dual channel LVDS |
| Display | Graphic Engine | GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. | GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. | GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. |
| Display | H/W Video Codec | Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265 | Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265 | Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265 |
| Ethernet | Chipset | RTL8153 | RTL8153 | RTL8153 |
| Watchdog Timer | WatchDog Timer | 1~6553s, default 60s, power on/off 1s | 1~6553s, default 60s, power on/off 1s | 1~6553s, default 60s, power on/off 1s |
| Audio | Interface | Mic-in, Line-out | Mic-in, Line-out | Mic-in, Line-out |
| I/O | USB | 1 USB 3.2 Gen1 By 1, 1 USB 2.0 | 1 USB 3.2 Gen1 By 1, 1 USB 2.0 | 1 USB 3.2 Gen1 By 1, 1 USB 2.0 |
| I/O | M.2 | 1 M.2 2230 Key E Slot / 1 M.2 3052 Key B Slot | 1 M.2 2230 Key E Slot / 1 M.2 3052 Key B Slot | 1 M.2 2230 Key E Slot / 1 M.2 3052 Key B Slot |
| I/O | COM Port | 1 (RS232/422/485) | 1 (RS232/422/485) | 1 (RS232/422/485) |
| I/O | TPM | TPM 2.0 | TPM 2.0 | TPM 2.0 |
| I/O | Reset Button | 1 | 1 | 1 |
| I/O | UIO40-Express | 1 USB3.2 Gen1 By 1, 3 USB2.0, 10 GPIO, 2 UART, 1 CANbus, 1 I2C | 1 USB3.2 Gen1 By 1, 3 USB2.0, 10 GPIO, 2 UART, 1 CANbus, 1 I2C | 1 USB3.2 Gen1 By 1, 3 USB2.0, 10 GPIO, 2 UART, 1 CANbus, 1 I2C |
| I/O | Camera Input | 3 4-Lane MIPI-CSI2 | 3 4-Lane MIPI-CSI2 | 3 4-Lane MIPI-CSI2 |
| Indicator | LED | 1 Power LED, 1 Programmable LED | 1 Power LED, 1 Programmable LED | 1 Power LED, 1 Programmable LED |
| Environment | Operational Temperature | 0 ~ 60 °C / -40 ~ 80 °C | 0 ~ 60 °C / -40 ~ 80 °C | 0 ~ 60 °C / -40 ~ 80 °C |
| Operating System | Android | Android 11 | Android 11 | Android 11 |
| Operating System | Linux | Ubuntu 22.04.2 | Ubuntu 22.04.2 | Ubuntu 22.04.2 |

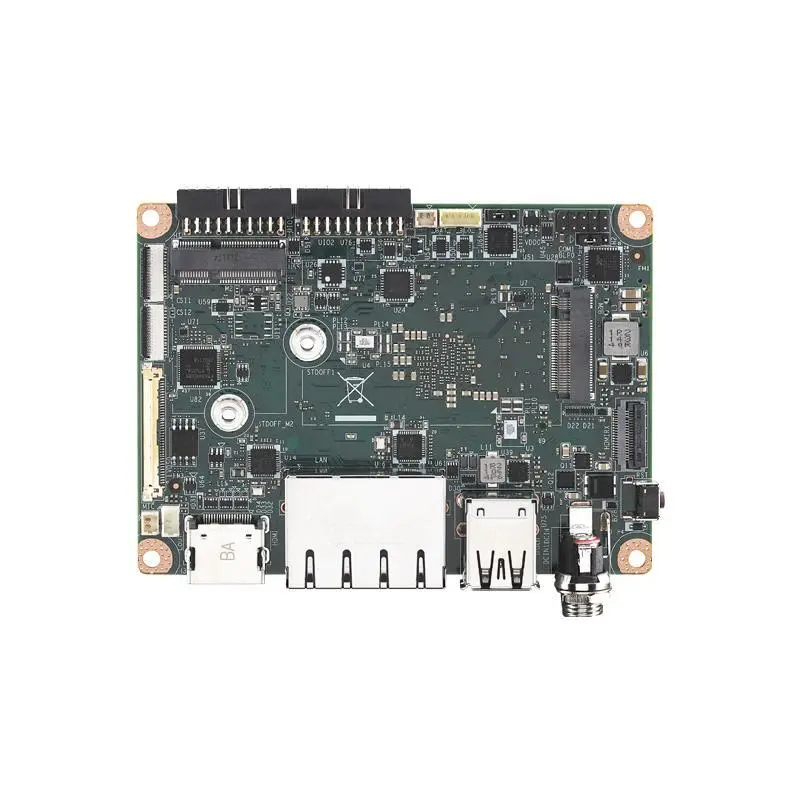

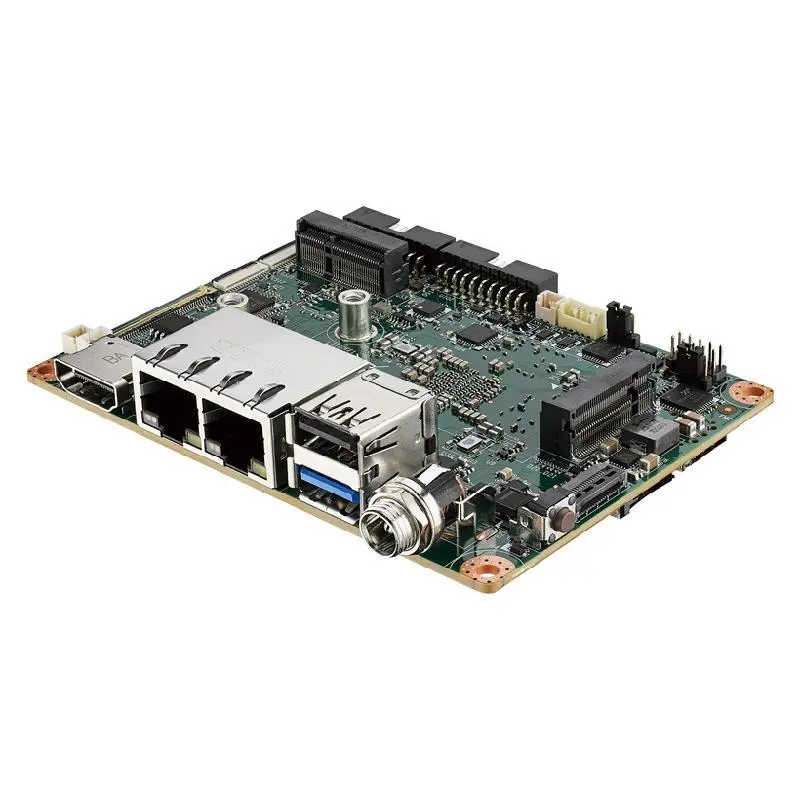

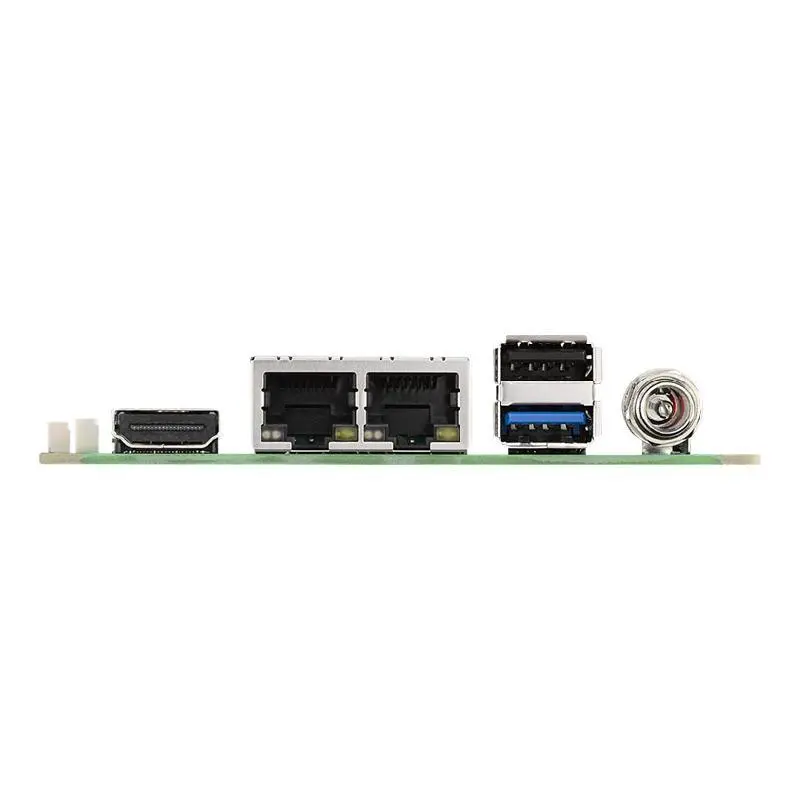

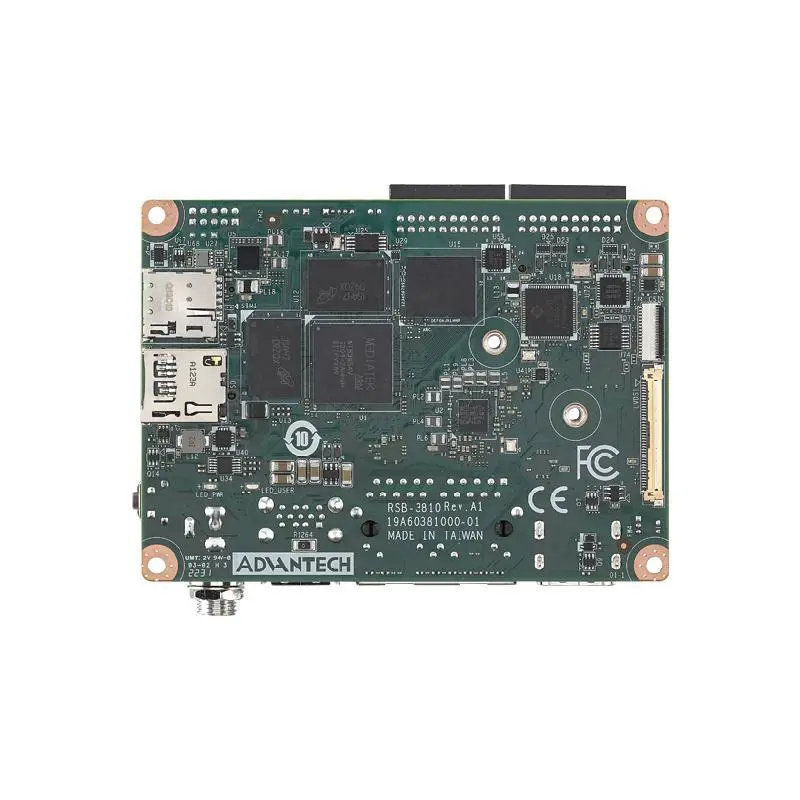

Advantech RSB-3810 MediaTek Genio 1200 Cortex A78 & A55 2.5" SBCwith UIO40-Express
