| RSB-3720CQ-ACA2E | RSB-3720WQ-ACA2E | RSB-3720CD-BCA2E | RSB-3720WD-BCA2E | ||
| Processor | CPU | NXP ARM® Cortex®-A53 i.MX 8M Plus Quad | NXP ARM® Cortex®-A53 i.MX 8M Plus Quad | NXP ARM® Cortex®-A53 i.MX 8M Plus Dual | NXP ARM® Cortex®-A53 i.MX 8M Plus Dual |
| Memory | Technology | LPDDR4 4000MT/s | LPDDR4 4000MT/s | LPDDR4 4000MT/s | LPDDR4 4000MT/s |
| Memory | Capacity | Onboard 6GB | Onboard 6GB | Onboard 4GB | Onboard 4GB |
| Memory | Flash | 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information | 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information | 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information | 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information |
| AI Engine | NPU | 2.3 TOP/s Neural Network Performance | 2.3 TOP/s Neural Network Performance | 2.3 TOP/s Neural Network Performance | 2.3 TOP/s Neural Network Performance |
| Graphics | HDMI | 1 HDMI port, HDMI 2.0 for HD video playback, 3840x2160@30Hz | 1 HDMI port, HDMI 2.0 for HD video playback, 3840x2160@30Hz | 1 HDMI port, HDMI 2.0 for HD video playback, 3840x2160@30Hz | 1 HDMI port, HDMI 2.0 for HD video playback, 3840x2160@30Hz |
| Display | LVDS/MIPI-DSI | 1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS | 1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS | 1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS | 1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS |
| Display | Graphic Engine | GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. | GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. | GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. | GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. |
| Display | H/W Video Codec | Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265 | Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265 | Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265 | Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265 |
| Ethernet | Chipset | 2 x NXP i.MX8M Plus integrated RGMII | 2 x NXP i.MX8M Plus integrated RGMII | 2 x NXP i.MX8M Plus integrated RGMII | 2 x NXP i.MX8M Plus integrated RGMII |
| Watchdog Timer | WatchDog Timer | 1~6553s, default 60s, power on/off 1s | 1~6553s, default 60s, power on/off 1s | 1~6553s, default 60s, power on/off 1s | 1~6553s, default 60s, power on/off 1s |
| Audio | Interface | Mic-in, Line-out | Mic-in, Line-out | Mic-in, Line-out | Mic-in, Line-out |
| I/O | USB | 1 USB 3.2 Gen1 By 1, 1 USB 2.0 | 1 USB 3.2 Gen1 By 1, 1 USB 2.0 | 1 USB 3.2 Gen1 By 1, 1 USB 2.0 | 1 USB 3.2 Gen1 By 1, 1 USB 2.0 |
| I/O | CAN | 1 CAN-FD | 1 CAN-FD | 1 CAN-FD | 1 CAN-FD |
| I/O | Mini-PCIe (Internal) | 1 (full-size for optional expansion modules) | 1 (full-size for optional expansion modules) | 1 (full-size for optional expansion modules) | 1 (full-size for optional expansion modules) |
| I/O | M.2 | 1 x M.2 1630/2230 E-Key for wireless module | 1 x M.2 1630/2230 E-Key for wireless module | 1 x M.2 1630/2230 E-Key for wireless module | 1 x M.2 1630/2230 E-Key for wireless module |
| I/O | COM Port | 1 (1 x RS232/ 422/ 485) | 1 (1 x RS232/ 422/ 485) | 1 (1 x RS232/ 422/ 485) | 1 (1 x RS232/ 422/ 485) |
| I/O | TPM | TPM 2.0 | TPM 2.0 | TPM 2.0 | TPM 2.0 |
| I/O | Reset Button | 1 | 1 | 1 | 1 |
| I/O | UIO40-Express | 1 USB3.2 Gen1 By 1, 3 USB2.0, 10 GPIO, 2 UART, 1 CANbus, 1 I2C | 1 USB3.2 Gen1 By 1, 3 USB2.0, 10 GPIO, 2 UART, 1 CANbus, 1 I2C | 1 USB3.2 Gen1 By 1, 3 USB2.0, 10 GPIO, 2 UART, 1 CANbus, 1 I2C | 1 USB3.2 Gen1 By 1, 3 USB2.0, 10 GPIO, 2 UART, 1 CANbus, 1 I2C |
| I/O | Camera Input | 2 4-Lane MIPI-CSI | 2 4-Lane MIPI-CSI | 2 4-Lane MIPI-CSI | 2 4-Lane MIPI-CSI |
| Indicator | LED | 1 Power LED, 1 Programmable LED | 1 Power LED, 1 Programmable LED | 1 Power LED, 1 Programmable LED | 1 Power LED, 1 Programmable LED |
| Environment | Operational Temperature | 0~60°C (32~140°F) | -40~85C (-40~185° F) | 0~60°C (32~140°F) | -40~85C (-40~185° F) |
| Operating System | Linux | Yocto Linux | Yocto Linux | Yocto Linux | Yocto Linux |

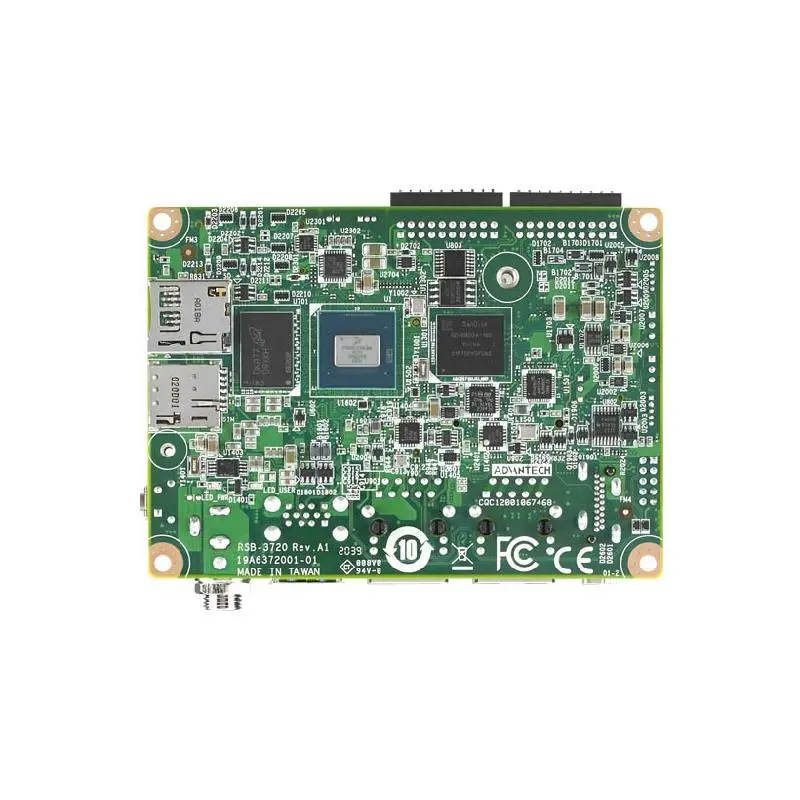

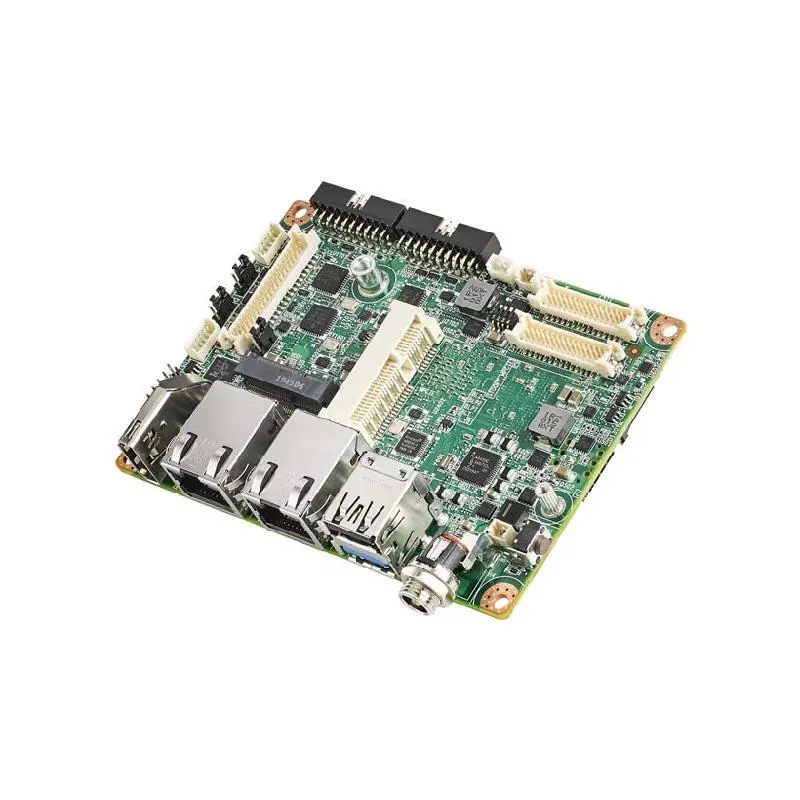

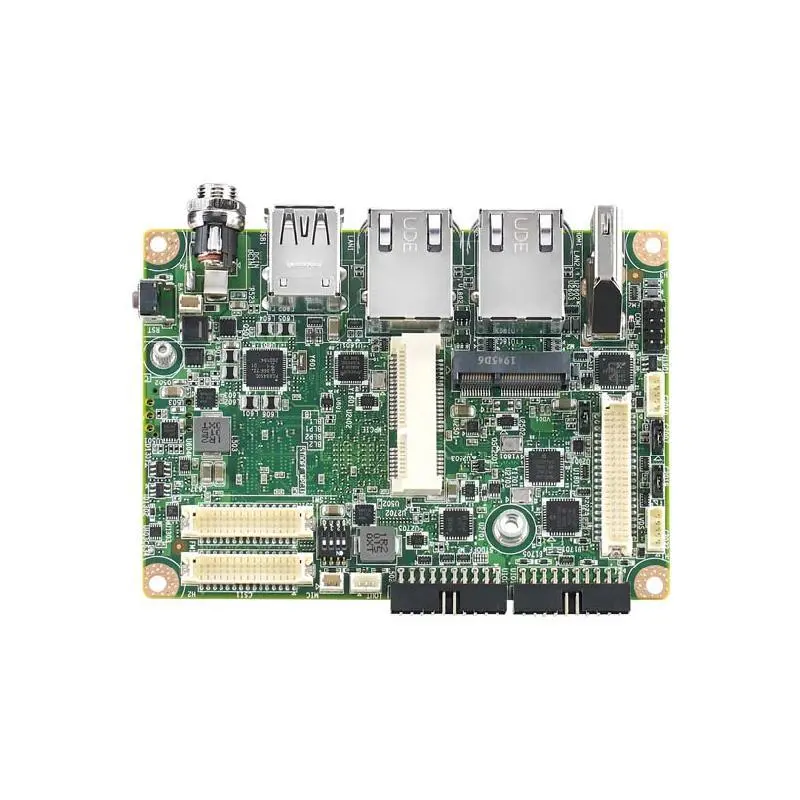

Advantech RSB-3720 NXP i.MX8M Plus Cortex®-A53 2.5" SBC with UIO40-Express
