EPC-R7300IJ-ALA1NN | EPC-R7300IJ-ALA180 | EPC-R7300IH-ALA1NN | EPC-R7300IV-ALA1NN | EPC-R7300IF-ALA1NN | EPC-R7300IT-ALA1NN | ||
Display | HDMI | 1 | 1 | 1 | 1 | 1 | 1 |
Network | LAN | 2 GbE | 2 GbE | 2 GbE | 2 GbE | 2 GbE | 2 GbE |

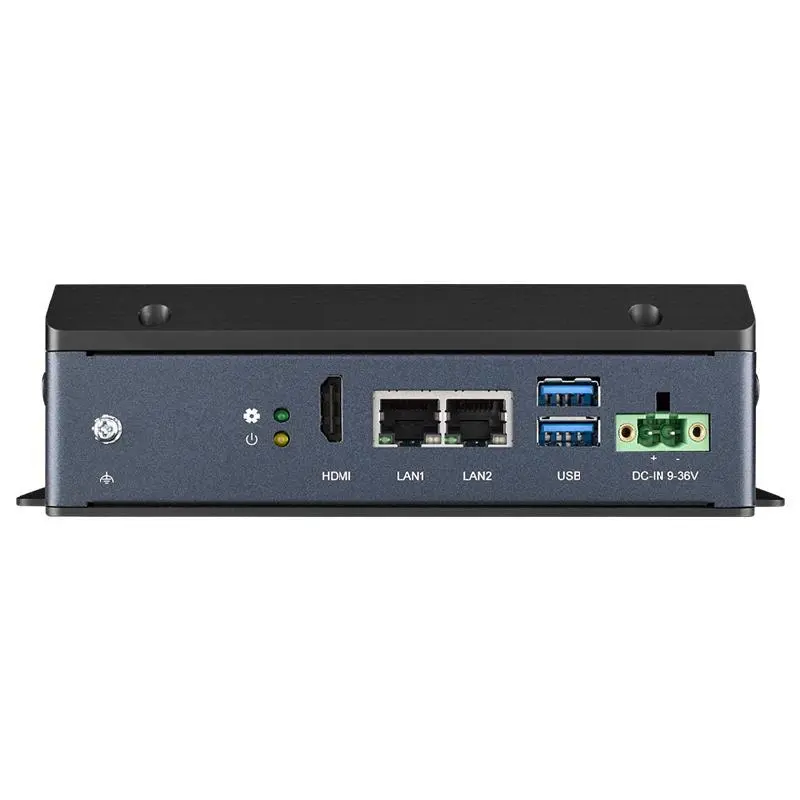

Front I/O Interface | USB | 2 USB3.0 | 2 USB3.0 | 2 USB3.0 | 2 USB3.0 | 2 USB3.0 | 2 USB3.0 |
Storage | M.2 | 0 | 0 | 1 x M.2 2280 (M Key), 128GB built-in | 1 x M.2 2280 (M Key), 128GB built-in | 1 x M.2 2280 (M Key), 128GB built-in | 1 x M.2 2280 (M Key), 128GB built-in |
I/O | LAN | - | 4 x LAN + 1 x WAN | - | - | - | - |
Processor | CPU | - | - | NVIDIA Jetson Orin NX-16GB | NVIDIA Jetson Orin NX-8GB | NVIDIA Jetson Orin Nano-8GB | NVIDIA Jetson Orin Nano-4GB |
Operating System | Ubuntu | - | - | V | V | V | V |

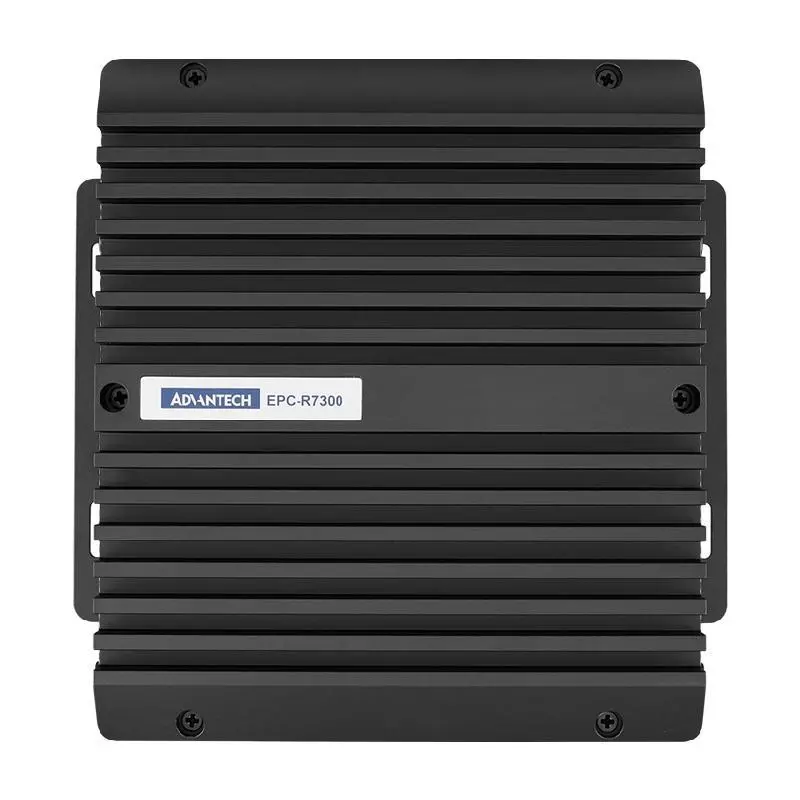

Advantech EPC-R7300 An industrial barebones PC for the NVIDIA® Jetson Orin™ NX and Jetson Orin™ Nano systems-on-modules delivers 20–100 TOPS of AI performance.
NVIDIA Jetson Module Compatible: Jetson Orin™ NX 8GB/16GB and Nano 4GB/8GB
Industrial fanless barebones PC with dimensions of 152×173×50 mm
Versatile wireless/storage expansions with M.2 B key, M.2 E key, and M.2 key M socket

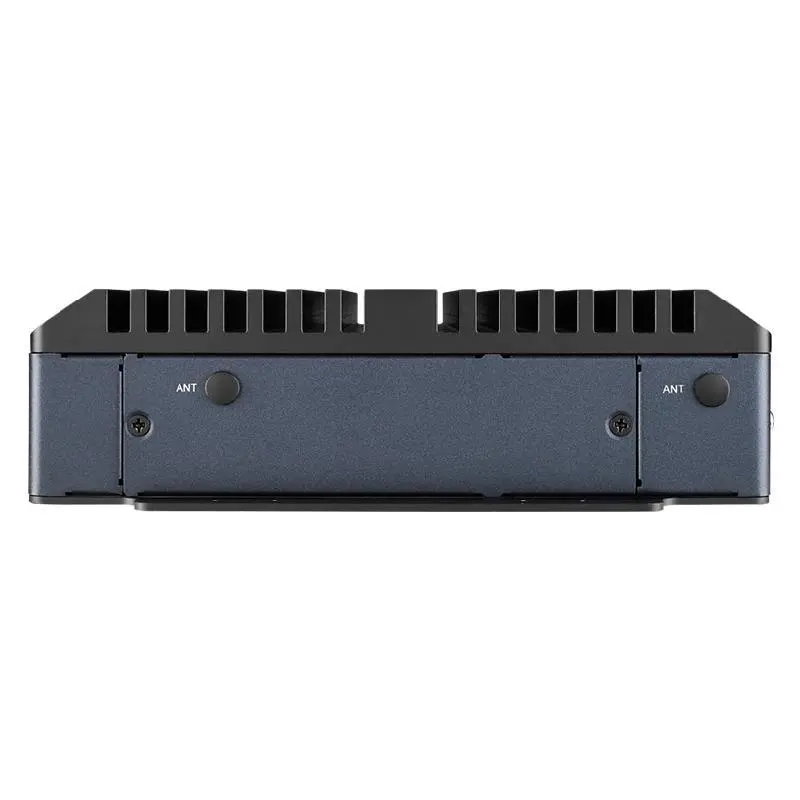

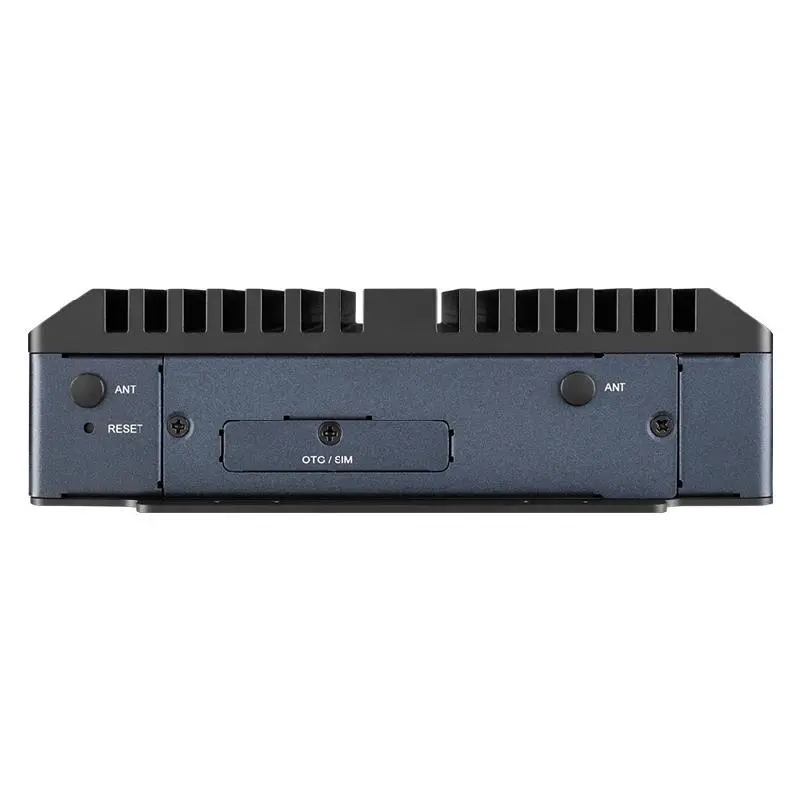

Five rear I/O configurations available for different requirements
Rugged barebones PC chassis supports a wide operating temperature range, wide power input range, and vibration tolerance (-20 ~ 60 ºC / -4 ~ 140 ºF / 9 ~ 36 VDC / 3.0 Grms)
NVIDIA JetPack 5.1 support
The ROS2 Suite supports robotics development
