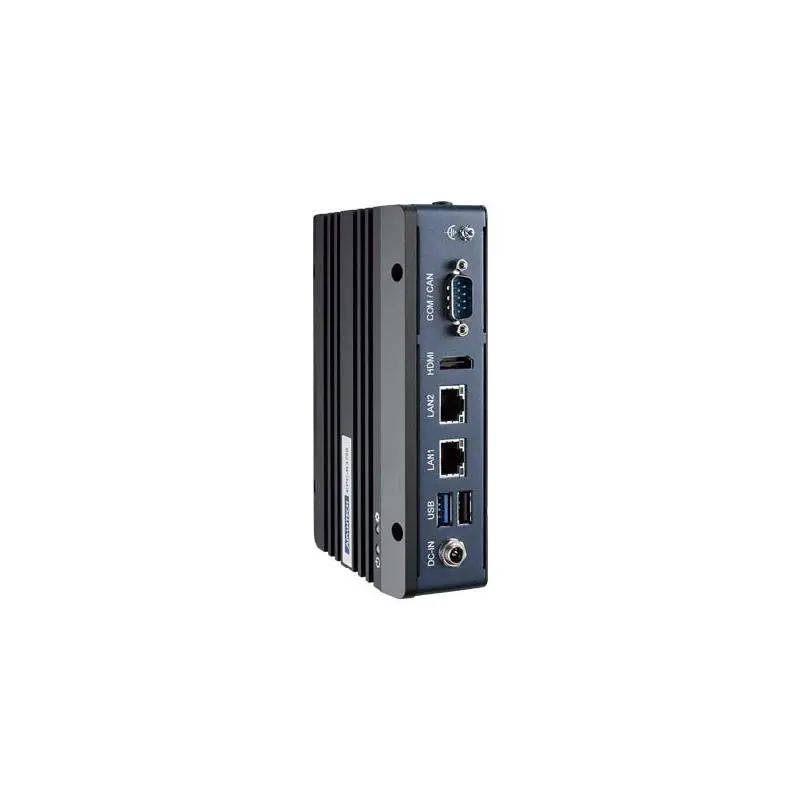

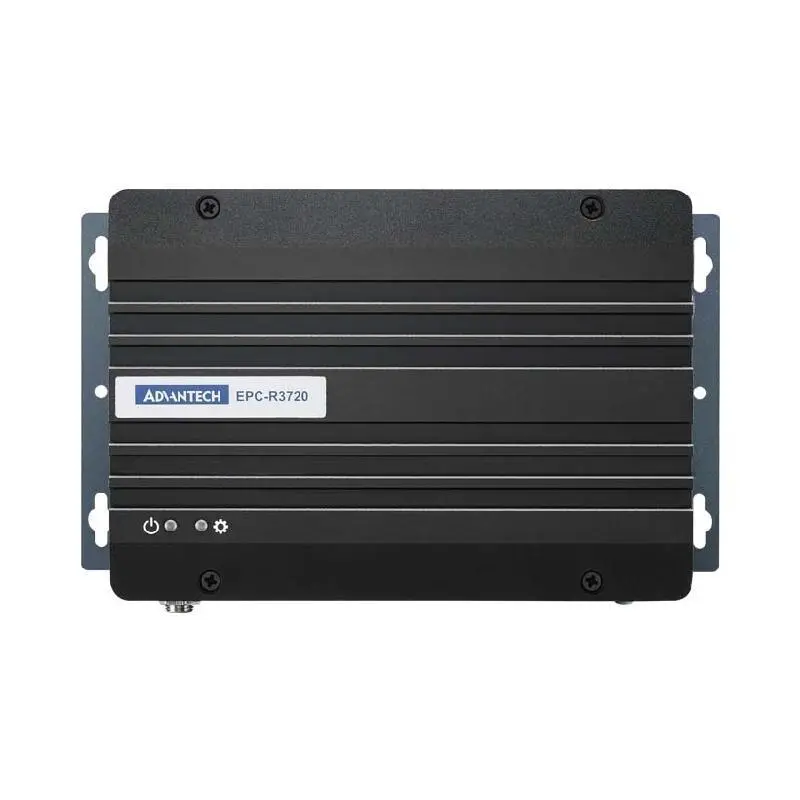

Advantech EPC-R3720 NXP i.MX8MPlus Cortex-A53 Edge AI Box Computer

    NXP i.MX8M Plus Cortex-A53 Quad/Dual up to 1.8GHz

    On-board LPDDR4 6 GB, 4000MT/s memory

    HDMI up to 3840 x 2160 at 30Hz resolution

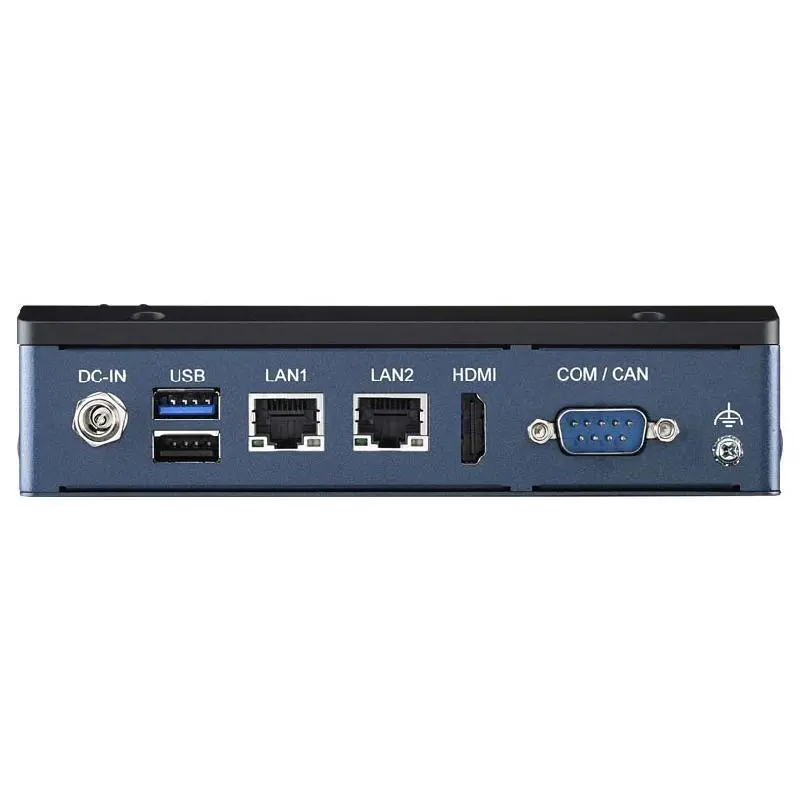

    Dual GbE LAN, 1 USB2.0 and 1 USB 3.2 Gen 1

    1 Micro SD Socket & 1 Nano SIM Slot

    1 mini-PCIe for 3G/4G, 1 M.2 2230 Key E Slot

    Supports Windows 10 IoT Enterprise on Arm, Yocto Linux and Android BSP

    4 Kinds of Rear I/O for Each Vertical Focus: IEM, Self Service, Automation and Networking

EPC-R3720IQ-ALA200 EPC-R3720IQ-ALA220 EPC-R3720IQ-ALA240 EPC-R3720IQ-ALA260 EPC-R3720IQ-ALA10B EPC-R3720IQ-ALA12B EPC-R3720IQ-ALA14B EPC-R3720IQ-ALA16B
Processor CPU NXP ARM® Cortex®-A53 i.MX 8M Plus Quad NXP ARM® Cortex®-A53 i.MX 8M Plus Quad NXP ARM® Cortex®-A53 i.MX 8M Plus Quad NXP ARM® Cortex®-A53 i.MX 8M Plus Quad NXP ARM® Cortex®-A53 i.MX 8M Plus Quad NXP ARM® Cortex®-A53 i.MX 8M Plus Quad NXP ARM® Cortex®-A53 i.MX 8M Plus Quad NXP ARM® Cortex®-A53 i.MX 8M Plus Quad
Memory Technology LPDDR4 4000MT/s LPDDR4 4000MT/s LPDDR4 4000MT/s LPDDR4 4000MT/s LPDDR4 4000MT/s LPDDR4 4000MT/s LPDDR4 4000MT/s LPDDR4 4000MT/s
Memory Capacity Onboard 6GB Onboard 6GB Onboard 6GB Onboard 6GB Onboard 6GB Onboard 6GB Onboard 6GB Onboard 6GB
Memory Flash 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information
AI Engine NPU 2.3 TOP/s Neural Network Performance 2.3 TOP/s Neural Network Performance 2.3 TOP/s Neural Network Performance 2.3 TOP/s Neural Network Performance 2.3 TOP/s Neural Network Performance 2.3 TOP/s Neural Network Performance 2.3 TOP/s Neural Network Performance 2.3 TOP/s Neural Network Performance
Display HDMI Up to 3840 x 2160 at 30Hz Up to 3840 x 2160 at 30Hz Up to 3840 x 2160 at 30Hz Up to 3840 x 2160 at 30Hz Up to 3840 x 2160 at 30Hz Up to 3840 x 2160 at 30Hz Up to 3840 x 2160 at 30Hz Up to 3840 x 2160 at 30Hz
Display LVDS/MIPI-DSI 1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS 1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS 1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS 1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS 1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS 1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS 1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS 1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS
Display Graphic Engine GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP.
Display H/W Video Codec Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265 Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265 Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265 Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265 Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265 Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265 Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265 Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265
Ethernet Chipset 2 x NXP i.MX8M Plus integrated RGMII 2 x NXP i.MX8M Plus integrated RGMII 2 x NXP i.MX8M Plus integrated RGMII 2 x NXP i.MX8M Plus integrated RGMII 2 x NXP i.MX8M Plus integrated RGMII 2 x NXP i.MX8M Plus integrated RGMII 2 x NXP i.MX8M Plus integrated RGMII 2 x NXP i.MX8M Plus integrated RGMII
I/O USB 1 USB 3.2 Gen1 By 1, 1 USB 2.0 1 USB 3.2 Gen1 By 1, 1 USB 2.0 1 USB 3.2 Gen1 By 1, 1 USB 2.0 1 USB 3.2 Gen1 By 1, 1 USB 2.0 1 USB 3.2 Gen1 By 1, 1 USB 2.0 1 USB 3.2 Gen1 By 1, 1 USB 2.0 1 USB 3.2 Gen1 By 1, 1 USB 2.0 1 USB 3.2 Gen1 By 1, 1 USB 2.0
I/O CAN 1 CAN-FD 1 CAN-FD 1 CAN-FD 1 CAN-FD 1 CAN-FD 1 CAN-FD 1 CAN-FD 1 CAN-FD

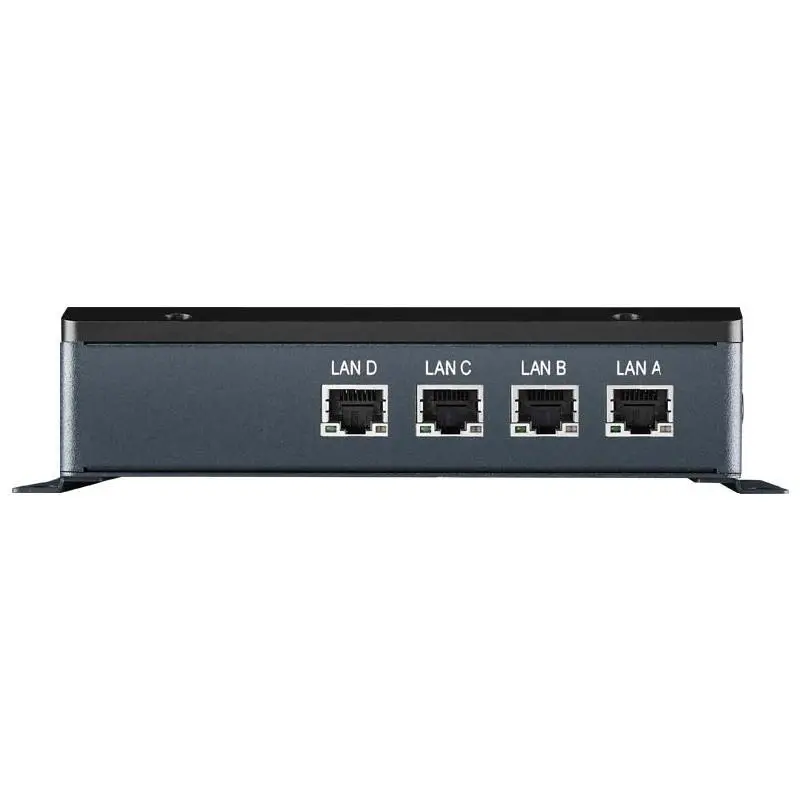

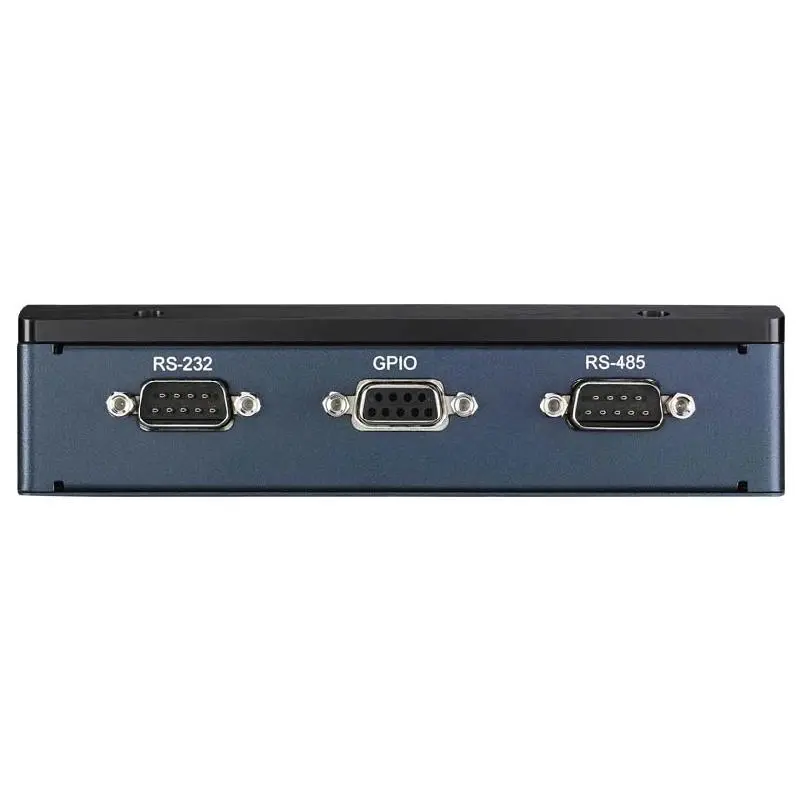

I/O UIO40-Express 1 RS-232, 4DI/4DO, 1 RS-485 2 RS-232, 2 USB2.0, 1 GbE LAN 2 RS-232, 1 CANbus 4 GbE LAN Hub 1 RS-232, 4DI/4DO, 1 RS-485 2 RS-232, 2 USB2.0, 1 GbE LAN 2 RS-232, 1 CANbus 4 GbE LAN Hub
Indicator LED 1 Power LED, 1 Programmable LED 1 Power LED, 1 Programmable LED 1 Power LED, 1 Programmable LED 1 Power LED, 1 Programmable LED 1 Power LED, 1 Programmable LED 1 Power LED, 1 Programmable LED 1 Power LED, 1 Programmable LED 1 Power LED, 1 Programmable LED
Operating System Linux Yocto Linux Yocto Linux Yocto Linux Yocto Linux Yocto Linux Yocto Linux Yocto Linux Yocto Linux
Operating System Windows 10 IoT Enterprise - - - - - - - -
