| ROM-DB5901-SWA1 | ||
| Certification | EMC | CE, FCC Class B |
| Display | HDMI | 1 HDMI TypeA |
| Environment | Humidity | 0% ~ 90% relative humidity, non-condensing |
| I/O | Audio | 1 1/8 Audio Jack (I2S HD Audio) |
| I/O | CAN | 2 CAN 2.0B ports, Differential mode +5V |
| I/O | GPIO | 12 GPIO Ports |
| I/O | I2C Bus | 1 I2C pin header |
| I/O | SATA | 1 SATAII Connector (with SATA-DOM support) |
| I/O | SATA Power | 1 |
| I/O | SDIO | 1 SD card slot |
| Physical | Dimension (mm) | 305 x 244 mm (12" x 9.6") |
| Power | Power Supply Voltage | +12V |
| Expansion Interface | PCIe | 3 PCIE x 1 |
| I/O | Serial port | 2 x 4-wires RS232/422/485, 2 x 2-wires RS232 Pin Headers |
| I/O | SPI Bus | 1 x SPI Pin Header, 1 x ESPI Pin Header |
| I/O | USB | 1 x USB Type C Connector (USB 3.0, Output: 5V/9V/12V@3A, Input: 12V/15V/20V@3A), 1 x Micro USB Type AB (USB 2.0 OTG), 1 x USB Type A Stacking Connector (USB 3.0 & USB 2.0 Host), 2 x USB 2.0 Pin Headers |
| Power | Power Type | 3 Power Inputs (+12V DC, Type C, Lithium-ion Battery Power Input) |
| Form Factor | Form Factor | SMARC2.0 |
| I/O | Button | 4 |
| I/O | Camera Input | 1 x 4-lane MIPI CSI, 1 x 2-lane MIPI CSI |
| Display | LVDS | 2 Single channel 24-bit LVDS |
| Environment | Operational Temperature | -40° C ~ 85° C |
| Ethernet | Speed | 2 x 10/100/1000Mbps |
| Display | DP/HDMI | 1DP and HDMI |
| Display | LVDS/MIPI-DSI | 2 x single channel 24-bit LVDS or 2 x 4-Lane MIPI-DSI |

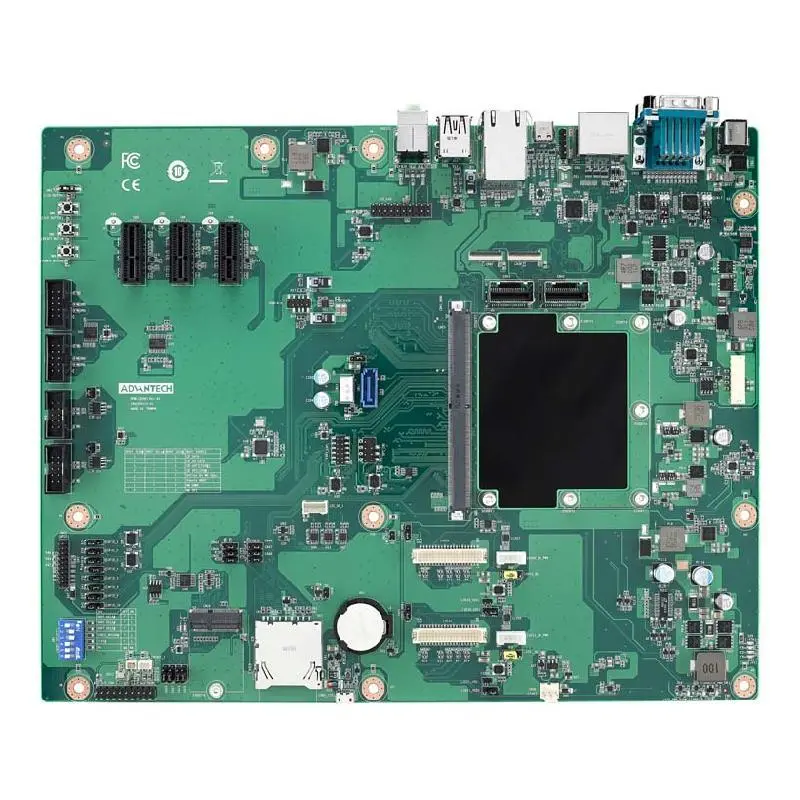

Advantech ROM-DB5901 Development Board for RISC SMARC v2.0 Module ATX Type
