| ROM-DB7500-SCA1E | ||
| Form Factor | Form Factor | Advantech Q7 CPU Module Series |
| Memory | EEPROM | Onbard 4MB EEPROM |
| Display | LVDS | 2 24-bit LVDS, 1024 x 768 |
| Display | HDMI | 1 HDMI TypeA |
| Display | VGA | 1 D-Sub 15 with female connector |
| Ethernet | Speed | 1 RJ45 |
| I/O | USB | 2 USB 2.0 Type A (Host), 1 mini USB(OTG), 1 USB pin header (4 pin) |
| I/O | SDIO | 1 SD card slot |
| I/O | Serial port | 4 UART Pin header |
| I/O | CAN | 2 CAN 2.0B ports, Differential mode +5V |
| Expansion Interface | PCIe | 1 PCIe x1 |
| Expansion | SD Socket | 1 SD card slot |
| Expansion | SIM Socket | 1 SIM slot |
| Power | Power Supply Voltage | +12V |
| Power | Power Type | DC-in |
| Environment | Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Environment | Humidity | 0% ~ 90% relative humidity, non-condensing |
| Physical | Dimension (mm) | 170x170mm |
| Certification | EMC | CE/FCC Class B |

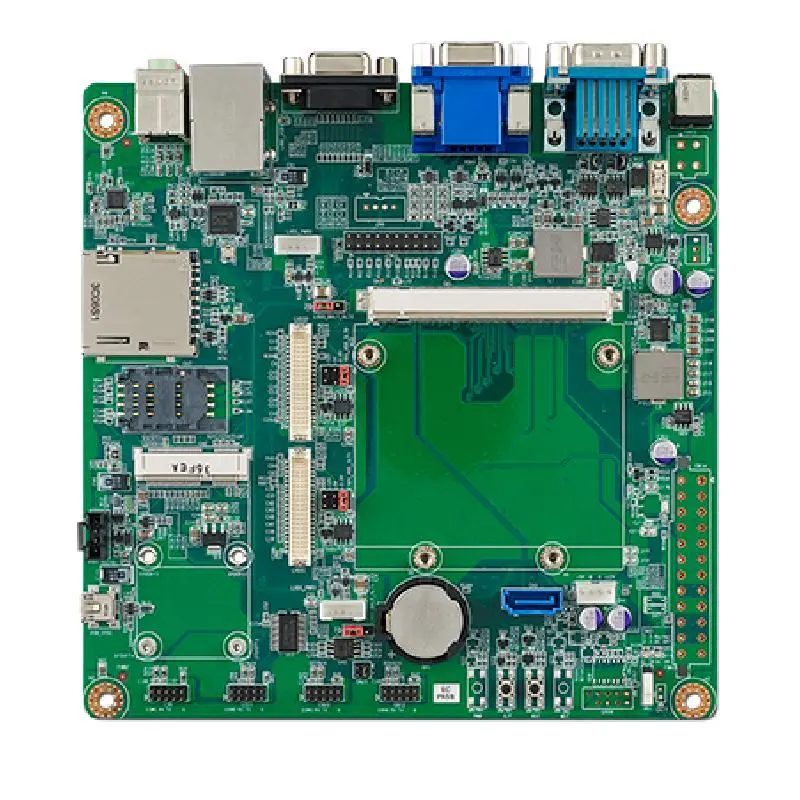

Advantech ROM-DB7500 Development board for RISC Qseven Module
