| ROM-DB3900-SWA1E | ||
| Form Factor | Form Factor | Advantech RTX 2.0 CPU Module series |
| Memory | Flash | Onboard 4GB eMMC |
| Memory | EEPROM | Onbard 4MB EEPROM |

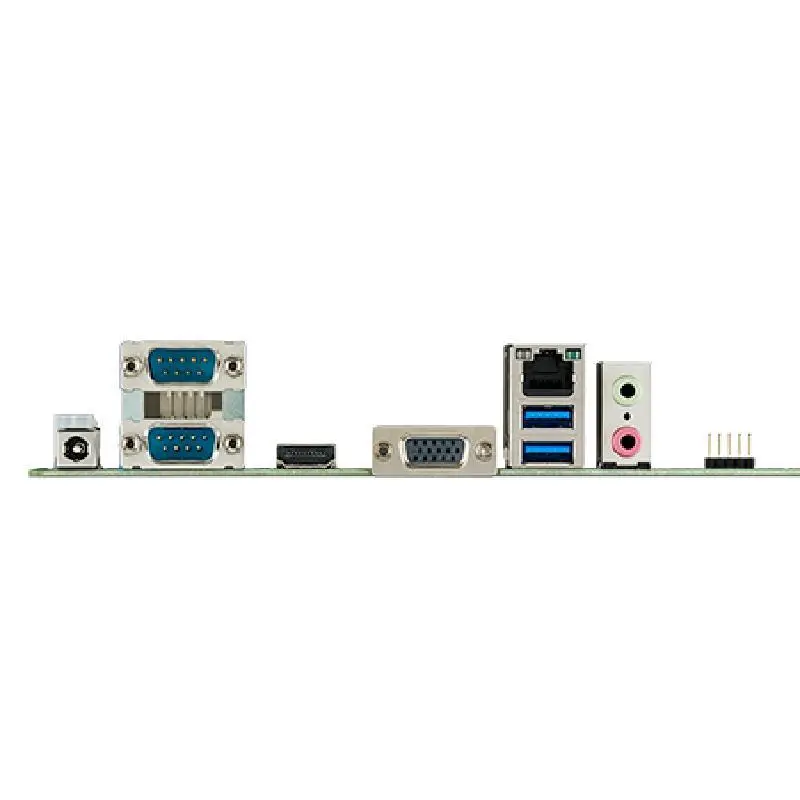

| Display | LVDS | 1 Single 24-bit LVDS |
| Display | HDMI | 1 HDMI TypeA |
| Display | VGA | 1 D-Sub 15 with female connector |
| Ethernet | Speed | 1 RJ45 |
| Watchdog Timer | WatchDog Timer | TBD |
| I/O | SATA | 1 SATAII Connector (with SATA-DOM support) |
| I/O | SATA Power | 1 |
| I/O | USB | 1 USB mini-A (OTG)1 Double USB type A (Host)1 USB 3.0 connector (Reserve) |
| I/O | Audio | 1 1/8 Audio Jack (I2S HD Audio) |
| I/O | SPDIF | 1 SPDIF Pin header |
| I/O | SDIO | 1 SD card slot |
| I/O | Serial port | 2 DB9, 2 pin header |
| I/O | SPI Bus | 2 SPI pin header |
| I/O | CAN | 2 CAN 2.0B ports, Differential mode +5V |
| I/O | GPIO | 10 GPIO Ports |
| I/O | I2C Bus | 1 I2C pin header |
| I/O | Camera Input | 2 MIPI connectors |
| I/O | Button | 4 |
| Expansion Interface | PCIe | 1 PCIe x1 |
| Expansion | SD Socket | 1 SD card slot |
| Expansion | SIM Socket | 1 SIM slot |
| Power | Power Supply Voltage | +12V |
| Power | Power Type | 4 Power Inputs (+12V DC-Jack, +12V 4pin, ATX power, +12V battery) |
| Environment | Operational Temperature | -40~85C (-40~185° F) |
| Environment | Humidity | 0% ~ 90% relative humidity, non-condensing |
| Physical | Dimension (mm) | 305 x 244 mm (12" x 9.6") |
| Certification | EMC | CE/FCC |

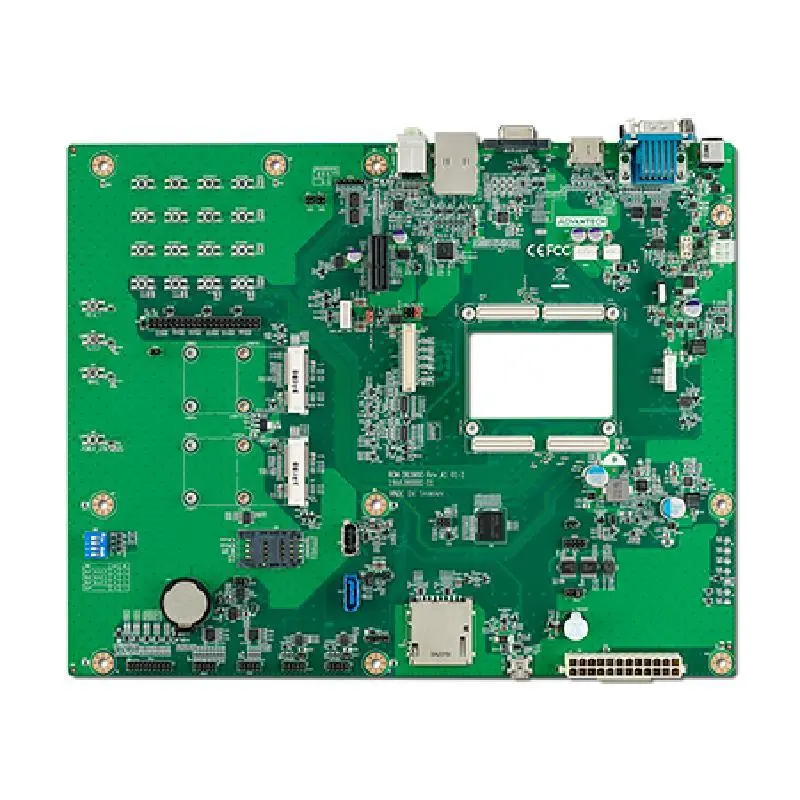

Advantech ROM-DB3900 Development board for RISC RTX2.0 Module
