| EPC-R3720IQ-AWA12B | ||
| Processor | CPU | NXP ARM® Cortex®-A53 i.MX 8M Plus Quad |
| Memory | Technology | LPDDR4 4000MT/s |
| Memory | Capacity | Onboard 6GB |
| Memory | Flash | 16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR for board information |
| AI Engine | NPU | 2.3 TOP/s Neural Network Performance |
| Display | HDMI | Up to 3840 x 2160 at 30Hz |
| Display | LVDS/MIPI-DSI | 1 4-Lane MIPI-DSI or 2 Single Ch. LVDS or 1 Dual Ch. LVDS |
| Display | Graphic Engine | GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. |
| Display | H/W Video Codec | Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/HighEncoder: 1080p60 AVC/H.264, HEVC/H.265 |
| Ethernet | Chipset | 2 x NXP i.MX8M Plus integrated RGMII |
| I/O | USB | 1 USB 3.2 Gen1 By 1, 1 USB 2.0 |
| I/O | CAN | 1 CAN-FD |
| I/O | UIO40-Express | 2 RS-232, 2 USB2.0, 1 GbE LAN |
| Indicator | LED | 1 Power LED, 1 Programmable LED |
| Operating System | Windows 10 | V |

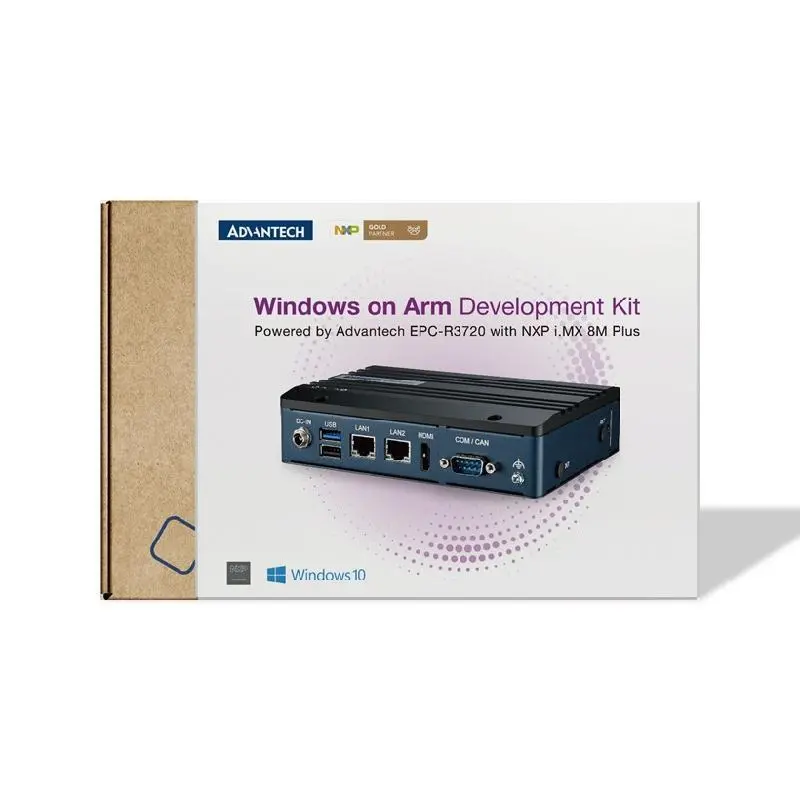

Advantech EPC-R3720 Windows On Arm Development Kit EPC-R3720 w/ UIO-4032 and Windows On Arm
