| SOM-E780S64-U0A1 | SOM-E780S16-H0A1 | ||
| Form Factor | Form Factor | COM-HPC Size E | COM-HPC Size E |
| Form Factor | Pin-out Type | COM-HPC Server | COM-HPC Server |
| Processor | CPU | AMD EPYC™ 7713P | AMD EPYC™ 7313P |
| Processor | Core Number | 64 | 16 |
| Processor | Thread | 128 | 32 |
| Processor | Base Frequency | 2.0 GHz | 3.0 GHz |
| Processor | Max Turbo Frequency | 3.675 GHz | 3.7 GHz |
| Processor | CPU TDP | 225W | 155W |
| Processor | BIOS | AMI UEFI 128 Mbit | AMI UEFI 128 Mbit |
| Memory | Technology | DDR4 3200 MHz | DDR4 3200 MHz |
| Memory | Socket | 4 x LRDIMM | 4 x LRDIMM |
| Memory | Max. Capacity | 512GB | 512GB |
| Memory | ECC Support | Yes | Yes |
| Expansion | PCI Express x 16 | 4 | 4 |
| Expansion | PCI Express x 1 | 14 | 14 |
| Serial Bus | SMBus | Yes | Yes |
| Serial Bus | I2 C Bus | Yes | Yes |
| Ethernet | Controller | intel I225 | intel I225 |
| Ethernet | Speed | 10/100/1000/2500 Mbps | 10/100/1000/2500 Mbps |
| Storage | SATA | 2 x SATAIII | 2 x SATAIII |
| I/O | USB 3.2 | 4 | 4 |
| I/O | USB2.0 | 4 | 4 |
| I/O | SPI Bus | 1 | 1 |
| I/O | GPIO | 12 | 12 |
| I/O | LPC | 1 | 1 |
| I/O | Watchdog timer | 65536 level, 0 ~ 65535 sec | 65536 level, 0 ~ 65535 sec |
| I/O | COM Port | 2 | 2 |
| I/O | TPM | TPM 2.0 | TPM 2.0 |
| I/O | Smart Fan | 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board | 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board |
| Power | Power Type | ATX: Vin, VSB; AT: Vin | ATX: Vin, VSB; AT: Vin |
| Power | Power Supply Voltage | Vin: 12V (± 5%); VSB: 5V (± 5%), RTC Battery: 2.0V ~ 3.3V | Vin: 12V (± 5%); VSB: 5V (± 5%), RTC Battery: 2.0V ~ 3.3V |
| Environment | Operating Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Storage Temperature | 0 ~ 60℃ | 0 ~ 60℃ |
| Environment | Humidity | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing |
| Environment | Vibration Resistance | 3.5 Grms | 3.5 Grms |
| Mechanical | Dimensions | 200 x 160 mm | 200 x 160 mm |

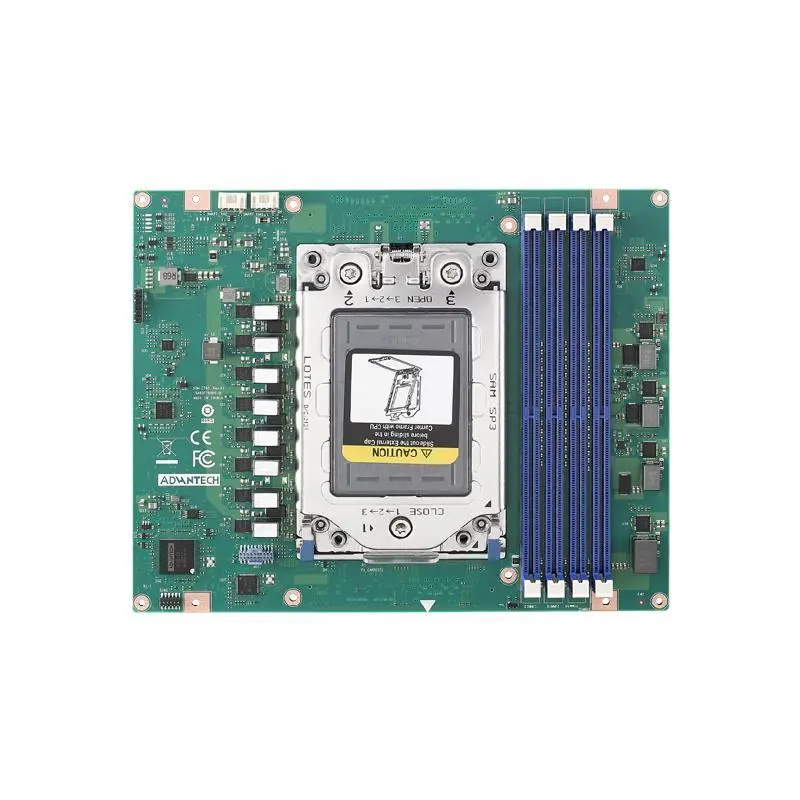

Advantech SOM-E780 AMD EPYC™ 7003 COM-HPC® Server Size E module with proprietary pinout
