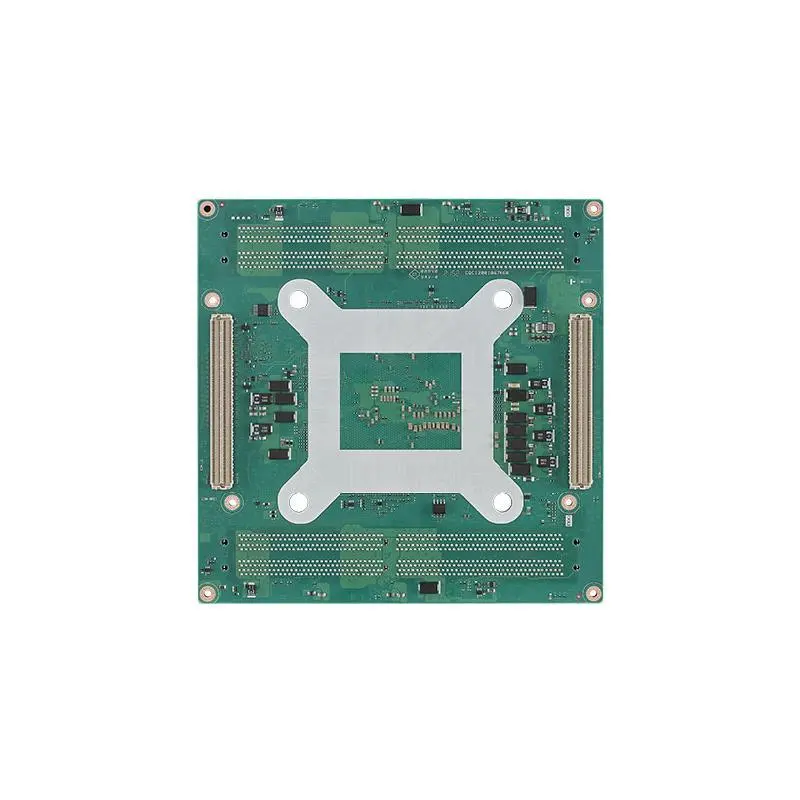

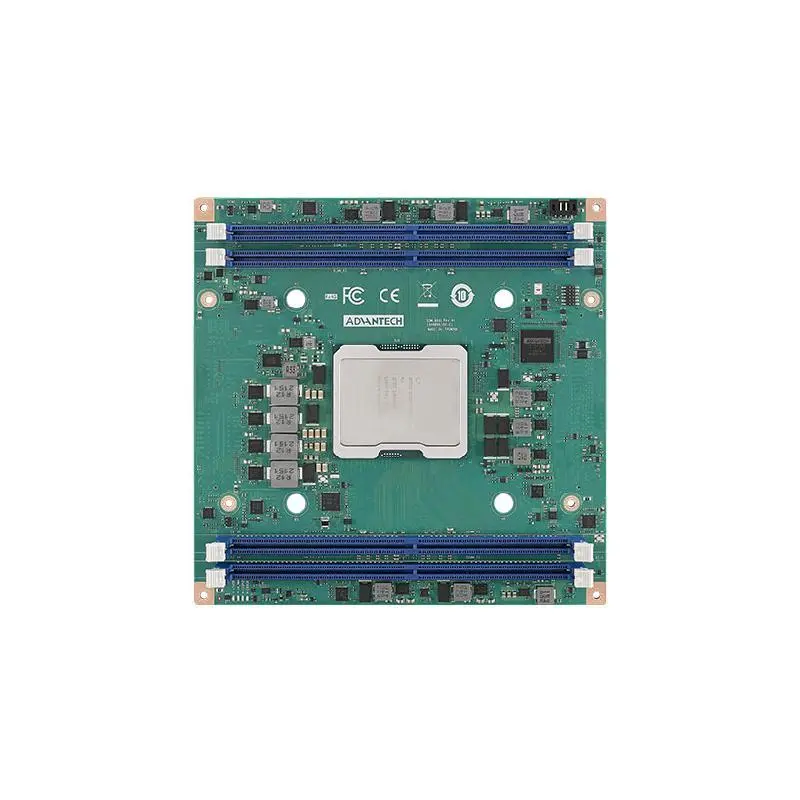

Advantech SOM-D580 Intel® Xeon® D-2700 Processor (Ice Lake-D HCC) COM-HPC® Server Size D Module - industrial computer

Advantech SOM-D580 Intel® Xeon® D-2700 Processor (Ice Lake-D HCC) COM-HPC® Server Size D Module

COM-HPC® Server Size D Module

Intel® Xeon® D-2700 processors

Up to 20 Cores, 30MB LLC Cache, 118W TDP

Quad channel DDR4-3200 RDIMM/LRDIMM up to 512GB (Both ECC & Non-ECC)

32 x PCIe Gen 4, 17 x PCIe Gen 3, 4 x 25GBASE-KR, IPMB

Supports iManager, Embedded Software APIs, and WISE-DeviceOn
