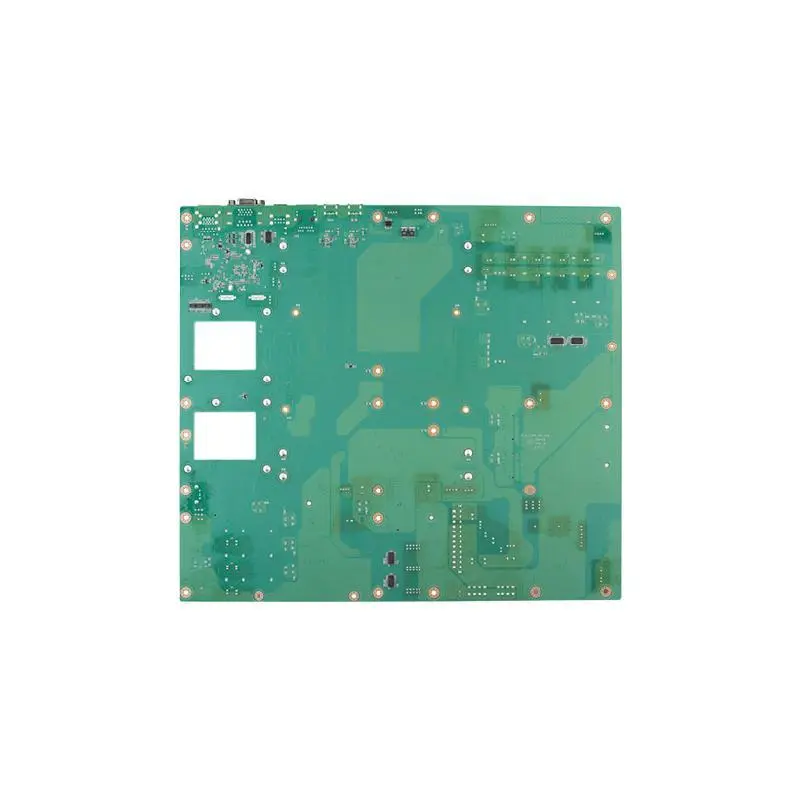

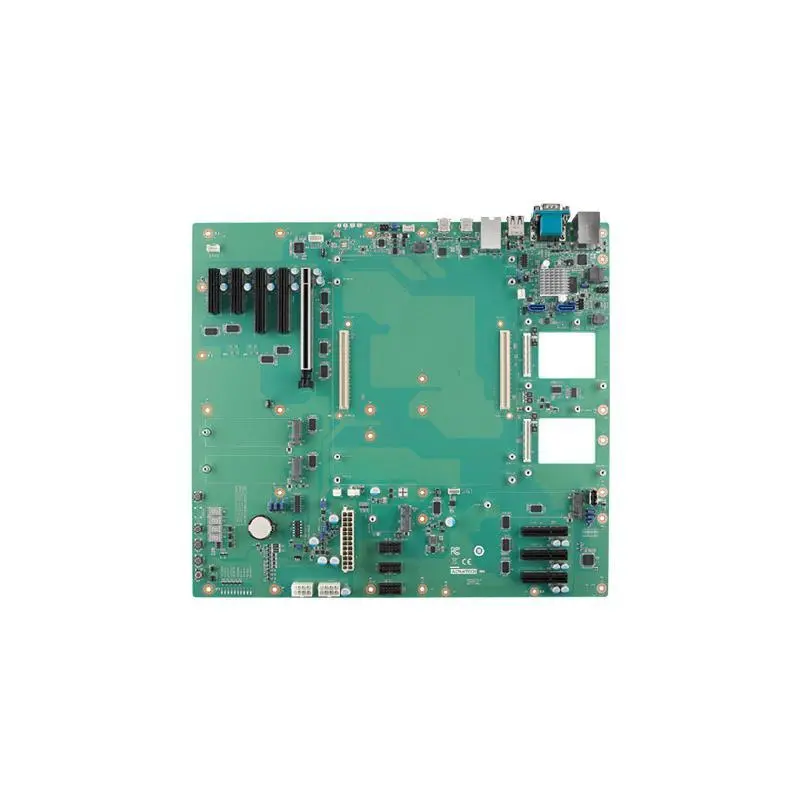

Advantech SOM-DH5000 Development Board for COM-HPC® Server pin-out & Size D/E Modules

PICMG COM-HPC Server pinout

COM-HPC Size D and E compatible

Rich extension: 1 PCIe x16, 2 PCIe x8, 5 PCIe x4

Integrated BMC supports VGA, Dedicated NIC for IPMI, iKVM

10/25 Gigabit Ethernet support by OCP mezzanine card

Visible Debug Utility: BIOS 80 Port and Power State

Inquiry

Description
