| SOM-A350C7H-S4A1 | ||
| Processor | CPU | Intel® Core™ Ultra 7 155H |
| Processor | Base Frequency | 1.4GHz/0.9GHz |
| Processor | Max Turbo Frequency | 4.8GHz/3.8GHz |
| Processor | Core Number | Up to 16C |
| Processor | LLC | 24MB |
| Processor | TDP | 45W |
| Processor | CPU TDP | 20W-45W |
| Processor | BIOS | AMI UEFI 256 Mbit |
| Memory | Technology | DDR5 |
| Memory | Max Speed | 5600 MT/s |
| Memory | Max. Capacity | Up to 96GB |
| Memory | Channel/ Socket | Dual Channels / 2 Sockets |
| Memory | ECC Support | Yes |
| Graphics | Controller | Intel® Xe LPG |
| Graphics | EU | 128 |
| Graphics | Max. Frequency | 2.25GHz |
| Graphics | 3D/HW Acceleration | HW Encode: Supports AVC/H264, JPEG, HEVC/H265, VP9 and AV1.HW Decode: Supports MPEG2, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9 and AV1 |
| Serial Bus | SMBus | Yes |
| Serial Bus | I2 C Bus | Yes |
| I/O | SATA | - |
| I/O | USB 4 | Up to 2 ports, Co-lay with DDI, Support by SOM-MZ20 |
| I/O | USB 3.2 | 2 |
| I/O | USB2.0 | 8 |
| I/O | GPIO | 8-bit |
| I/O | Audio | HD Audio Interface |
| I/O | Watchdog timer | 65536 level, 0 ~ 65535 sec |
| I/O | COM Port | 2 (2-wire) |
| I/O | TPM | TPM 2.0 |
| I/O | Smart Fan | 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board |
| Power | Power Type | ATX: Vin, VSB; AT: Vin |
| Environment | Operational Temperature | 0~60°C (32~140°F) |
| Environment | Storage Temperature | - 40 ~ 85° C (-40 ~185° F) |
| Environment | Humidity | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing |
| Environment | Vibration Resistance | 3.5 Grm (Non-Operation Mode) |

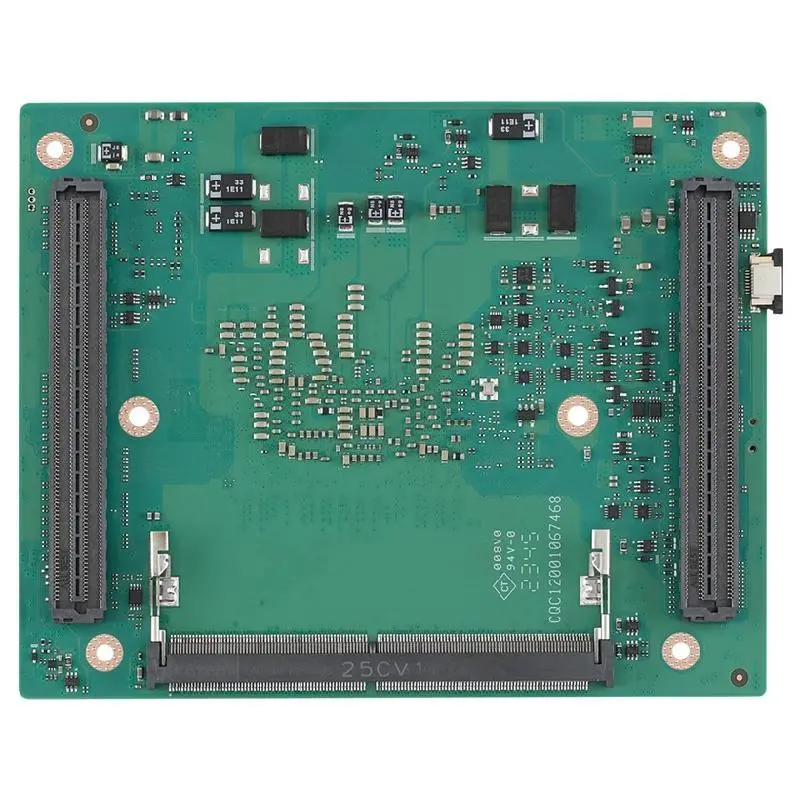

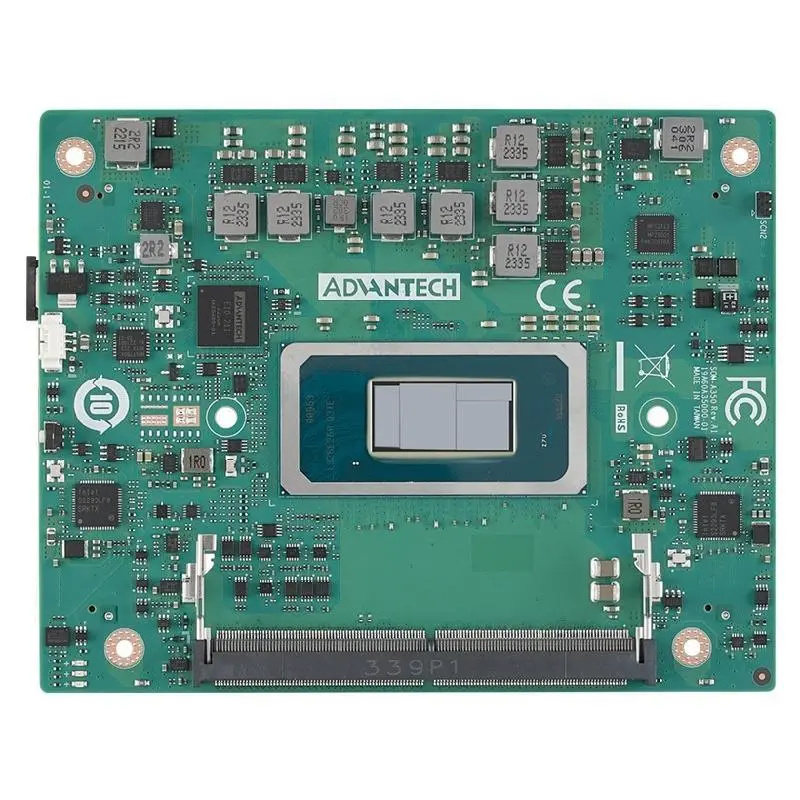

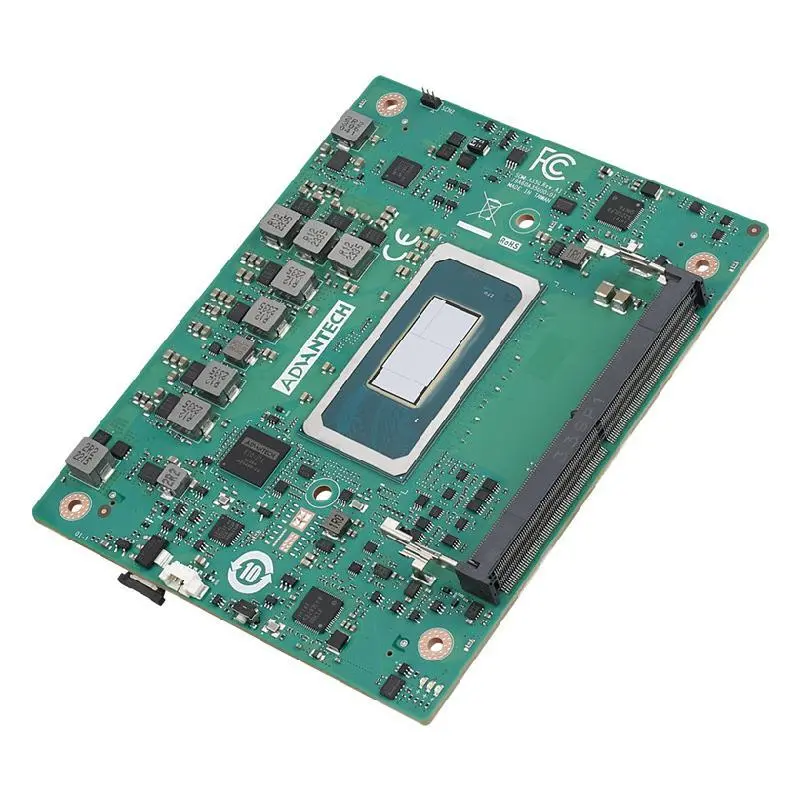

Advantech SOM-A350 14th Gen Intel® Core™ processors (Meteor Lake) CPU, COM-HPC Client Size A Module
