| SOM-6872VC-U9A2 | SOM-6872VC-U1A2 | SOM-6872VC-U9A1 | SOM-6872VCA-U9A1 | SOM-6872VC-H0A1 | SOM-6872VC-S7A1 | SOM-6872VC-U1A1 | ||
| Form Factor | Form Factor | COM Express Compact Module | COM Express Compact Module | COM Express Compact Module | COM Express Compact Module | COM Express Compact Module | COM Express Compact Module | COM Express Compact Module |
| Form Factor | Pin-out Type | COM Express R3.0 Type 6 compatible | COM Express R3.0 Type 6 compatible | COM Express R3.0 Type 6 compatible | COM Express R3.0 Type 6 compatible | COM Express R3.0 Type 6 compatible | COM Express R3.0 Type 6 compatible | COM Express R3.0 Type 6 compatible |
| Processor | CPU | AMD Ryzen™ Embedded V2748 | AMD Ryzen™ Embedded V2516 | AMD Ryzen™ Embedded V2748 | AMD Ryzen™ Embedded V2748 | AMD Ryzen™ Embedded V2546 | AMD Ryzen™ Embedded V2718 | AMD Ryzen™ Embedded V2516 |
| Processor | Core Number | 8 | 6 | 8 | 8 | 6 | 8 | 6 |
| Processor | Thread | 16 | 12 | 16 | 16 | 12 | 16 | 12 |
| Processor | Base Frequency | 2.9 GHz | 2.1 GHz | 2.9 GHz | 2.9 GHz | 3.0 GHz | 1.7 GHz | 2.1 GHz |
| Processor | Max Turbo Frequency | 4.25 GHz | 3.95 GHz | 4.25 GHz | 4.25 GHz | 3.95 GHz | 4.15 GHz | 3.95 GHz |
| Processor | CPU TDP | 35-54W | 10-25W | 35-54W | 35-54W | 35-54W | 10-25W | 10-25W |
| Memory | Technology | DDR4 3200 MHz | DDR4 3200 MHz | DDR4 3200 MHz | DDR4 3200 MHz | DDR4 3200 MHz | DDR4 3200 MHz | DDR4 3200 MHz |
| Processor | LLC | 8MB | 8MB | 8MB | 8MB | 8MB | 8MB | 8MB |
| Memory | Max. Capacity | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) |
| Memory | ECC Support | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM for Dual Channel | 2 x 260 Pin DDR4 SO-DIMM for Dual Channel | 2 x 260 Pin DDR4 SO-DIMM for Dual Channel | 2 x 260 Pin DDR4 SO-DIMM for Dual Channel | 2 x 260 Pin DDR4 SO-DIMM for Dual Channel | 2 x 260 Pin DDR4 SO-DIMM for Dual Channel | 2 x 260 Pin DDR4 SO-DIMM for Dual Channel |
| Graphics | Controller | AMD Radeon Graphics Vega GPU | AMD Radeon Graphics Vega GPU | AMD Radeon Graphics Vega GPU | AMD Radeon Graphics Vega GPU | AMD Radeon Graphics Vega GPU | AMD Radeon Graphics Vega GPU | AMD Radeon Graphics Vega GPU |
| Graphics | Max. Frequency | 1.6 GHz | 1.6 GHz | 1.6 GHz | 1.6 GHz | 1.6 GHz | 1.6 GHz | 1.6 GHz |
| Graphics | Graphic Memory | Shared Memory | Shared Memory | Shared Memory | Shared Memory | Shared Memory | Shared Memory | Shared Memory |
| Graphics | 3D/HW Acceleration | VCN2.2 (H.264/AVC HW 8b | H.265/HEVC HW 8/10b | VP9 HW 8/10b) | VCN2.2 (H.264/AVC HW 8b | H.265/HEVC HW 8/10b | VP9 HW 8/10b) | VCN2.2 (H.264/AVC HW 8b | H.265/HEVC HW 8/10b | VP9 HW 8/10b) | VCN2.2 (H.264/AVC HW 8b | H.265/HEVC HW 8/10b | VP9 HW 8/10b) | VCN2.2 (H.264/AVC HW 8b | H.265/HEVC HW 8/10b | VP9 HW 8/10b) | VCN2.2 (H.264/AVC HW 8b | H.265/HEVC HW 8/10b | VP9 HW 8/10b) | VCN2.2 (H.264/AVC HW 8b | H.265/HEVC HW 8/10b | VP9 HW 8/10b) |
| Display | VGA | N/A | N/A | 1920 x 1200 at 60Hz | 1920 x 1200 at 60Hz | 1920 x 1200 at 60Hz | 1920 x 1200 at 60Hz | 1920 x 1200 at 60Hz |
| Display | LVDS | N/A | N/A | N/A | 2 channels 18/24-bit, up to 1920 x 1200 @ 60Hz | N/A | N/A | N/A |
| Display | eDP* | eDP 1.3 4096 x 2160 @ 60Hz | eDP 1.3 4096 x 2160 @ 60Hz | eDP 1.3 4096 x 2160 @ 60Hz | N/A | eDP 1.3 4096 x 2160 @ 60Hz | eDP 1.3 4096 x 2160 @ 60Hz | eDP 1.3 4096 x 2160 @ 60Hz |
| Display | DDI (HDMI/DVI/DisplayPort) | 3 DDI ports support configurable HDMI/DisplayPort | 3 DDI ports support configurable HDMI/DisplayPort | 2 DDI ports support configurable HDMI/DisplayPort (option to have 3rd DDI port by disabling VGA) | 2 DDI ports support configurable HDMI/DisplayPort (option to have 3rd DDI port by disabling VGA) | 2 DDI ports support configurable HDMI/DisplayPort (option to have 3rd DDI port by disabling VGA) | 2 DDI ports support configurable HDMI/DisplayPort (option to have 3rd DDI port by disabling VGA) | 2 DDI ports support configurable HDMI/DisplayPort (option to have 3rd DDI port by disabling VGA) |
| Display | DP/HDMI | DisplayPort 1.4(4096 x 2160 @ 60Hz), HDMI 2.1(4096 x 2160 @ 60Hz) | DisplayPort 1.4(4096 x 2160 @ 60Hz), HDMI 2.1(4096 x 2160 @ 60Hz) | DisplayPort 1.4(4096 x 2160 @ 60Hz), HDMI 2.1(4096 x 2160 @ 60Hz) | DisplayPort 1.4(4096 x 2160 @ 60Hz), HDMI 2.1(4096 x 2160 @ 60Hz) | DisplayPort 1.4(4096 x 2160 @ 60Hz), HDMI 2.1(4096 x 2160 @ 60Hz) | DisplayPort 1.4(4096 x 2160 @ 60Hz), HDMI 2.1(4096 x 2160 @ 60Hz) | DisplayPort 1.4(4096 x 2160 @ 60Hz), HDMI 2.1(4096 x 2160 @ 60Hz) |
| Display | Multiple Display | Up to 4 independent displays | Up to 4 independent displays | Up to 4 independent displays | Up to 4 independent displays | Up to 4 independent displays | Up to 4 independent displays | Up to 4 independent displays |
| Expansion | PCI Express x 8 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Expansion | PCI Express x 1 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Expansion | Audio Interface | HD Audio | HD Audio | HD Audio | HD Audio | HD Audio | HD Audio | HD Audio |
| Expansion | LPC | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Ethernet | Controller | Intel i210 | Intel i210 | Intel i210 | Intel i210 | Intel i210 | Intel i210 | Intel i210 |
| Ethernet | Speed | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Serial Bus | SMBus | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Serial Bus | I2 C Bus | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Storage | SATA | 2 x SATA3 (max data transfer rate 6.0 Gb/s) | 2 x SATA3 (max data transfer rate 6.0 Gb/s) | 2 x SATA3 (max data transfer rate 6.0 Gb/s) | 2 x SATA3 (max data transfer rate 6.0 Gb/s) | 2 x SATA3 (max data transfer rate 6.0 Gb/s) | 2 x SATA3 (max data transfer rate 6.0 Gb/s) | 2 x SATA3 (max data transfer rate 6.0 Gb/s) |
| I/O | USB 3.2 | 4 | 4 | 2 | 2 | 2 | 2 | 2 |
| I/O | USB2.0 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| I/O | SPI Bus | Support SPI BIOS EEPROM | Support SPI BIOS EEPROM | Support SPI BIOS EEPROM | Support SPI BIOS EEPROM | Support SPI BIOS EEPROM | Support SPI BIOS EEPROM | Support SPI BIOS EEPROM |
| I/O | GPIO | 8-bit GPIO | 8-bit GPIO | 8-bit GPIO | 8-bit GPIO | 8-bit GPIO | 8-bit GPIO | 8-bit GPIO |
| I/O | Watchdog timer | 65536 level, 0 ~ 65535 sec | 65536 level, 0 ~ 65535 sec | 65536 level, 0 ~ 65535 sec | 65536 level, 0 ~ 65535 sec | 65536 level, 0 ~ 65535 sec | 65536 level, 0 ~ 65535 sec | 65536 level, 0 ~ 65535 sec |
| I/O | COM Port | 2 (2-wire) | 2 (2-wire) | 2 (2-wire) | 2 (2-wire) | 2 (2-wire) | 2 (2-wire) | 2 (2-wire) |
| I/O | TPM | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| I/O | Smart Fan | 2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board | 2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board | 2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board | 2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board | 2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board | 2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board | 2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board |
| Power | Power Type | ATX: Vin, VSB; AT: Vin | ATX: Vin, VSB; AT: Vin | ATX: Vin, VSB; AT: Vin | ATX: Vin, VSB; AT: Vin | ATX: Vin, VSB; AT: Vin | ATX: Vin, VSB; AT: Vin | ATX: Vin, VSB; AT: Vin |
| Power | Supply Voltage | Vin: 8.5V ~ 20V; VSB: 4.75V ~ 5.25 V, RTC Battery: 2.0V ~ 3.3V | Vin: 8.5V ~ 20V; VSB: 4.75V ~ 5.25 V, RTC Battery: 2.0V ~ 3.3V | Vin: 8.5V ~ 20V; VSB: 4.75V ~ 5.25 V, RTC Battery: 2.0V ~ 3.3V | Vin: 8.5V ~ 20V; VSB: 4.75V ~ 5.25 V, RTC Battery: 2.0V ~ 3.3V | Vin: 8.5V ~ 20V; VSB: 4.75V ~ 5.25 V, RTC Battery: 2.0V ~ 3.3V | Vin: 8.5V ~ 20V; VSB: 4.75V ~ 5.25 V, RTC Battery: 2.0V ~ 3.3V | Vin: 8.5V ~ 20V; VSB: 4.75V ~ 5.25 V, RTC Battery: 2.0V ~ 3.3V |
| Environment | Operating Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Storage Temperature | - 40 ~ 85° C (-40 ~185° F) | - 40 ~ 85° C (-40 ~185° F) | - 40 ~ 85° C (-40 ~185° F) | - 40 ~ 85° C (-40 ~185° F) | - 40 ~ 85° C (-40 ~185° F) | - 40 ~ 85° C (-40 ~185° F) | - 40 ~ 85° C (-40 ~185° F) |
| Environment | Humidity | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing |
| Environment | Vibration Resistance | 3.5 Grms | 3.5 Grms | 3.5 Grms | 3.5 Grms | 3.5 Grms | 3.5 Grms | 3.5 Grms |
| Mechanical | Dimensions | 95 x 95 mm (3.74" x 3.74") | 95 x 95 mm (3.74" x 3.74") | 95 x 95 mm (3.74" x 3.74") | 95 x 95 mm (3.74" x 3.74") | 95 x 95 mm (3.74" x 3.74") | 95 x 95 mm (3.74" x 3.74") | 95 x 95 mm (3.74" x 3.74") |

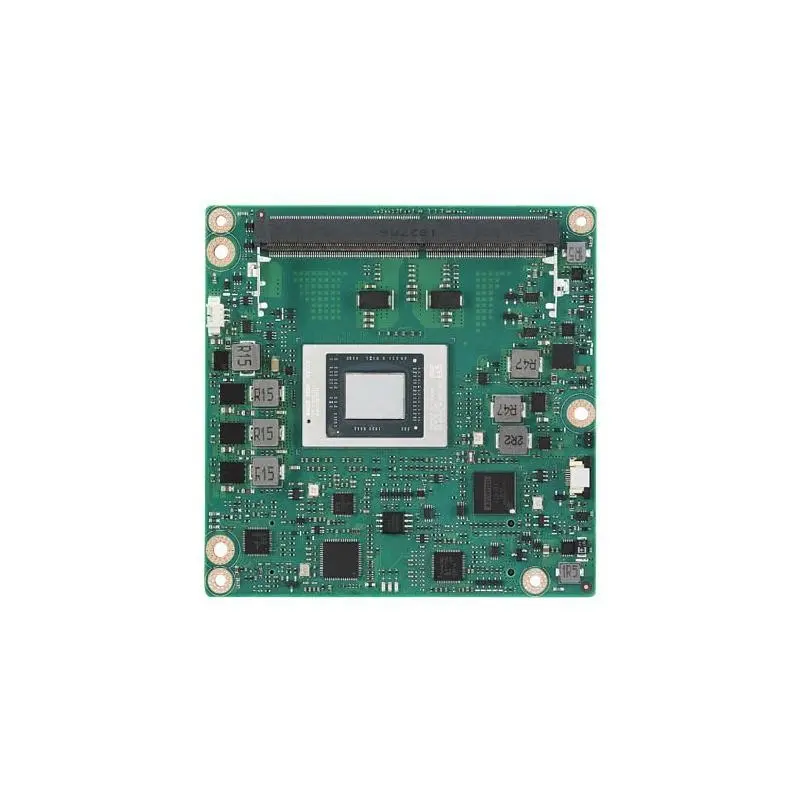

Advantech SOM-6872 AMD Embedded Ryzen V2000 COM Express® Compact Type 6 Module
