| SOM-6883C7A-S8A1 | ||
| Processor | CPU | i7-1185G7E |
| Processor | Core Number | 4 |
| Processor | CPU TDP | Up to 28W |
| Processor | Base Frequency | 1.8GHz |
| Processor | Memory | 1 channel memory down DDR4 3200MT/s 16GB, 1 channel SO-DIMM up to 32GB |
| Display | DDI (HDMI/DVI/DisplayPort) | 3 DDI ports support configurable HDMI/DisplayPort (HDMI 2.0b: 4Kx2K 48-60Hz 24bpp , DisplayPort 1.4: 4096x2304 60Hz 36bpp) |
| Processor | Max Turbo Frequency | 4.4 GHz |
| Display | VGA | 1920 x 1200 at 60Hz |
| I/O | LAN | Intel I225 IT controller ; Speed: 10M / 100M / 1000M / 2.5G speeds (2.5G TSN optional) |
| I/O | PCIe | 5 PCIe x1 (Up to 6 by option) |
| I/O | USB | 4 x USB3.2 Gen2, 8 x USB2.0 |
| Storage | NVMe | NVMe 32GB |
| Display | LVDS | 2 channels 18/24-bit, up to 1920 x 1200 @ 60Hz |
| I/O | SATA | 2 SATA Gen 3 |
| I/O | CANBus | 1 (Optional) |
| I/O | COM Port | 2 (2-wire) |
| I/O Interface | GPIO | 8 bit GPIO |
| I/O | LPC | 1 |
| I/O | SPI Bus | 1 |
| I/O | TPM | TPM 2.0 |
| I/O | Smart Fan | 2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board |
| Environment | Operational Temperature | -40 ~ 85° C (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Power Requirement | Power Type | AT/ATX |

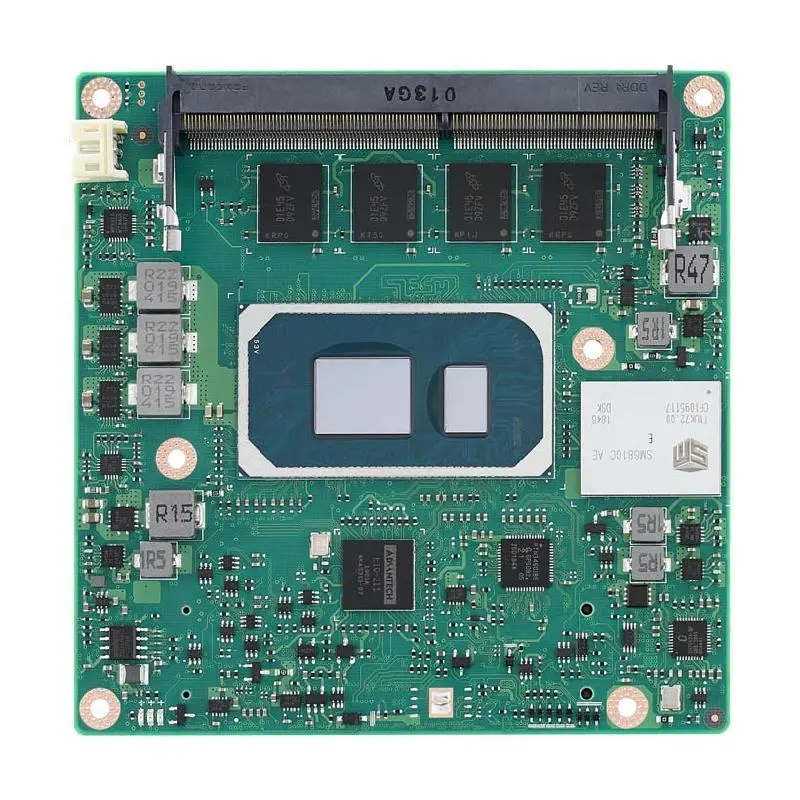

Advantech SOM-6883 11th Gen. Intel® Core™ Processor U-Series (Code Name: Tiger Lake-UP3) COM Express® Compact Type 6
