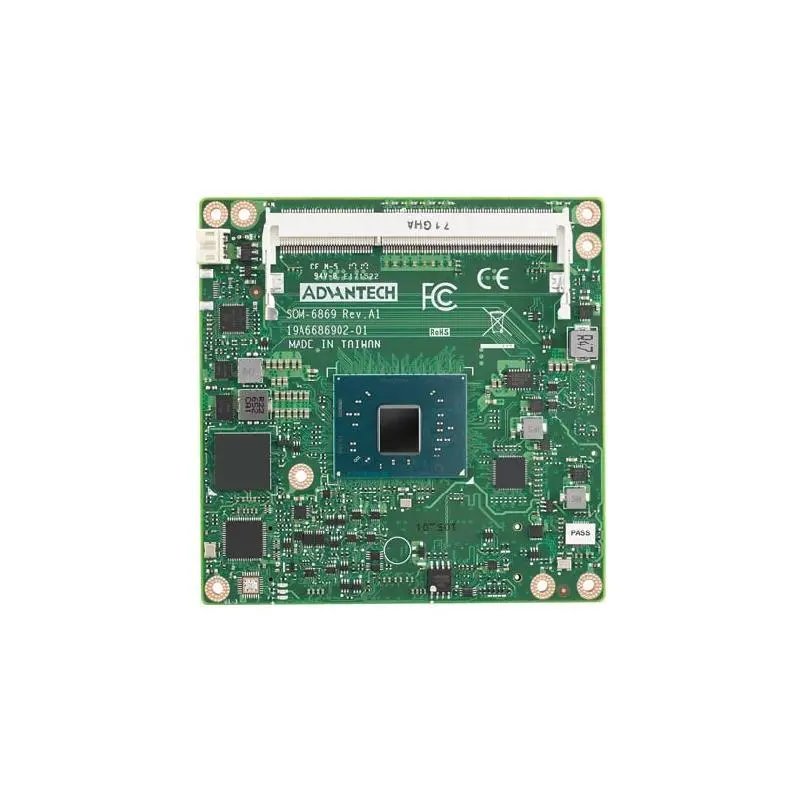

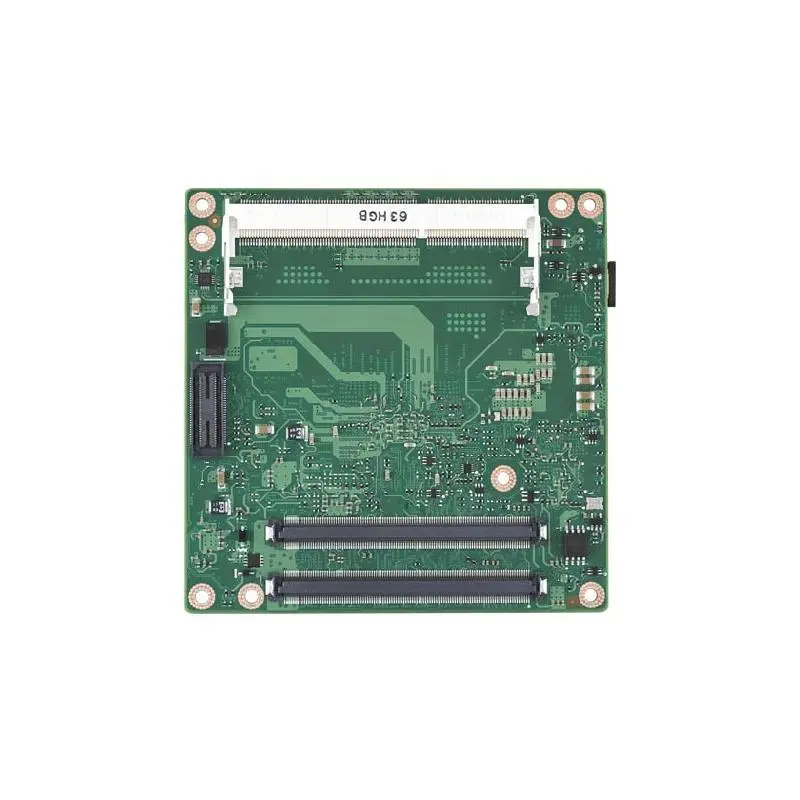

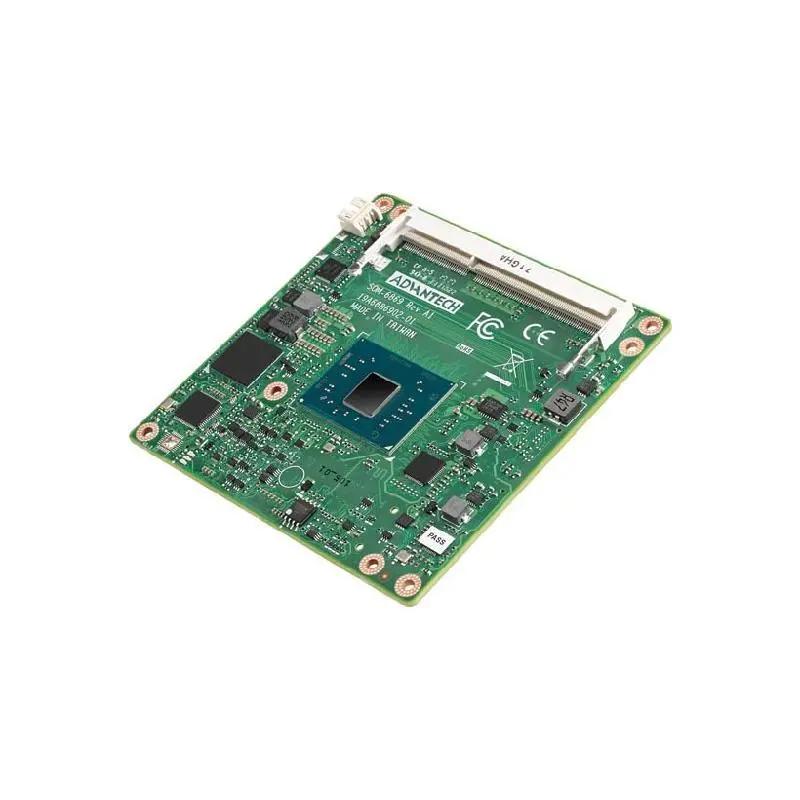

Advantech SOM-6869 Intel® Pentium® N4200, Celeron® N3350, and Atom® E3900 Series COM Express Compact Module Type 6

PICMG COM Express R2.1 Compact Module Type 6 pin out

Intel® Atom™ E3900 & Pentium™ and Celeron™ N Series Processors

Max. 8GB, dual Channel 1866 DDR3L memory (A1: non-ECC ; B1: ECC)

Supports up to 3 simultaneous display: LVDS/eDP, VGA, HDMI/DisplayPort

Supports H.264/AVC, H.265/HEVC, VP9, VP8 HW DECODE

Supports Wide-range opreating temp./wide range power input 4.75 ~ 20 V

iManager, WISE-PaaS/RMM, and Embedded Software APIs
