| SOM-7569BCBCC-S6B1 | ||
| Form Factor | Form Factor | COM Express Mini R2.1 |
| Form Factor | Pin-out Type | Type 10 |
| Processor | CPU | Atom X7-E3950 |
| Processor | Base Frequency | 1.6 GHz |
| Processor | Core Number | 4 |
| Processor | L2 Cache | 2MB |
| Display | Controller | Intel® HD Graphics 505 |
| Memory | Max. Capacity | 4GB |
| Memory | Technology | Single channel, DDR3L up to 1866(non-ECC), up to 1600(ECC) |
| Memory | ECC Support | Yes |
| Storage | eMMC | 32GB |
| Display | LCD (TTL/LVDS/eDP) | LVDS: Single channel 18-bit LVDS up to WXGA 1366 x 768 |
| Display | Multiple Display | LVDS, HDMI/DP |
| Expansion | PCI Express x 1 | 4 PCIe x1 (optional for 1 PCIe x4) |
| Processor | BIOS | AMI UEFI BIOS at 64 Mb |
| Expansion | PCI Express x 4 | option |
| Ethernet | Controller | Intel® i210IT/i210AT |
| Ethernet | Speed | 10/100/1000Mbps |
| I/O | USB2.0 | 2 USB 3.0 / 8 USB 2.0 |
| Power | Power Type | ATX: Vin, VSB; AT: Vin |
| Power | Power Supply Voltage | Vin: 4.75-20V, VSB: 4.75-5.25V |
| Environment | Operational Temperature | 0 ~ 60 °C (32 ~ 140 °F), Extend: -40 ~ 85° C (-40 ~ 185° F) |
| Physical | Dimension (mm) | 84 x 55mm(3.3" x 2.17") |

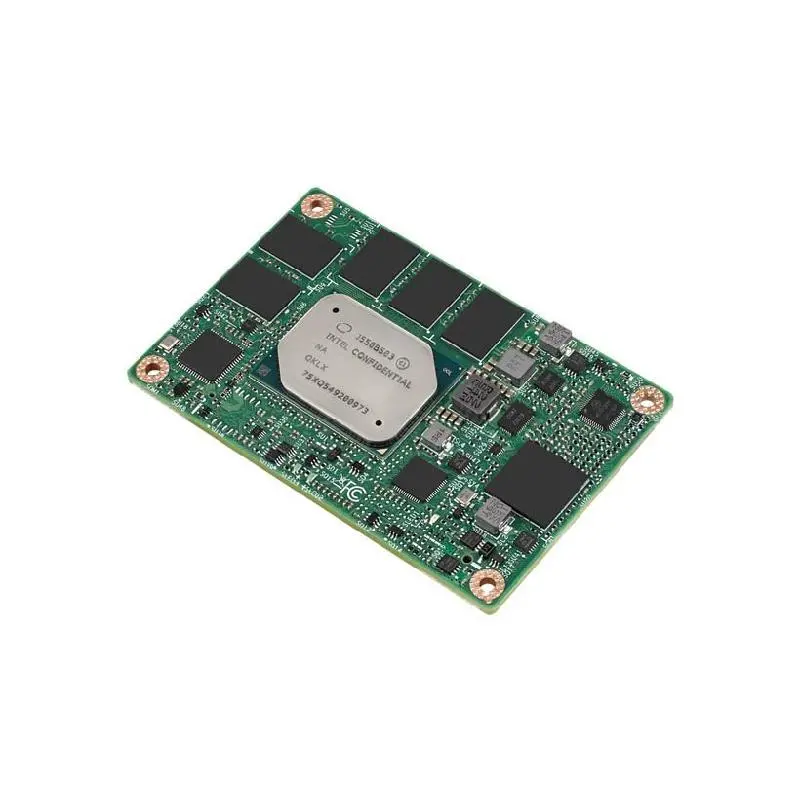

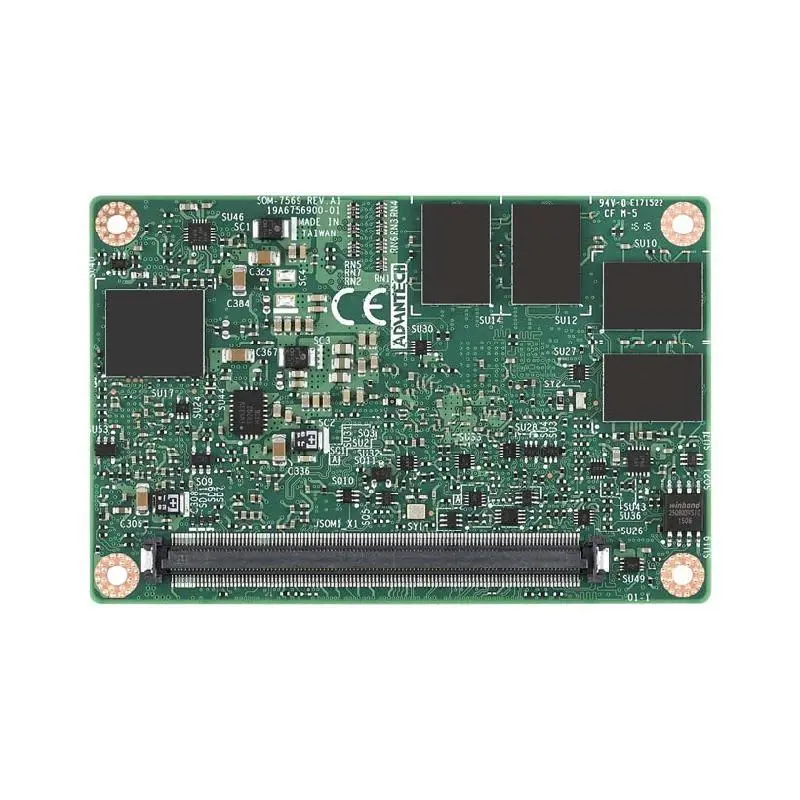

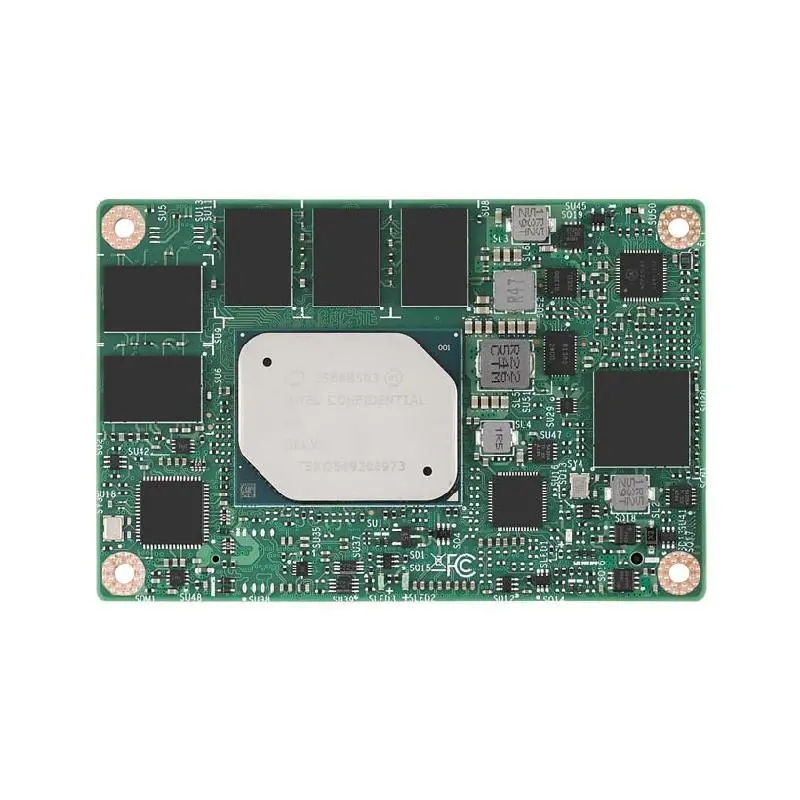

Advantech SOM-7569 Intel® Atom™ E3900 & Pentium® / Celeron® Processor COM-Express Mini Module
