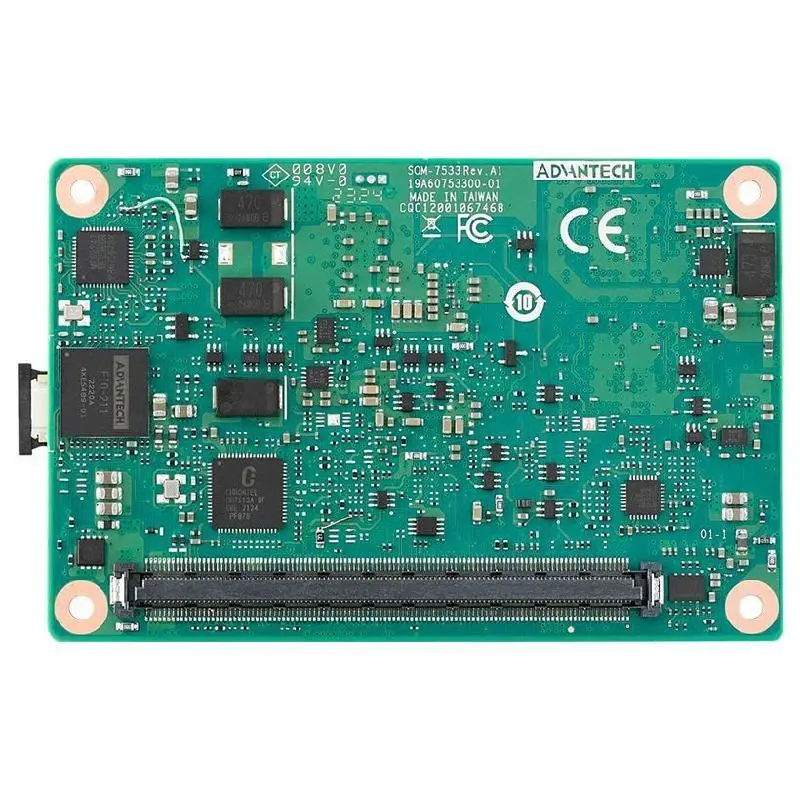

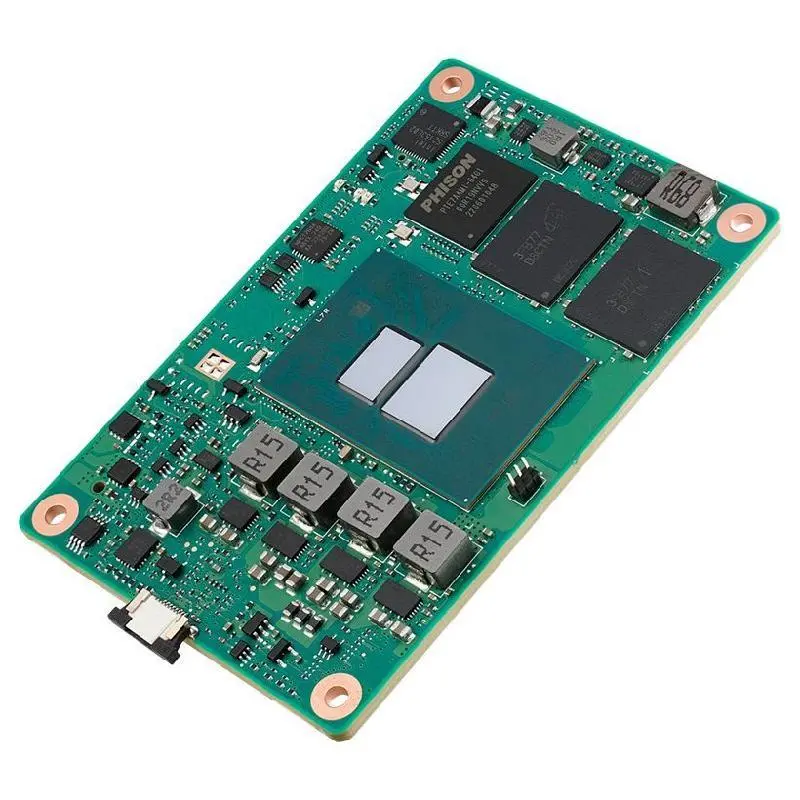

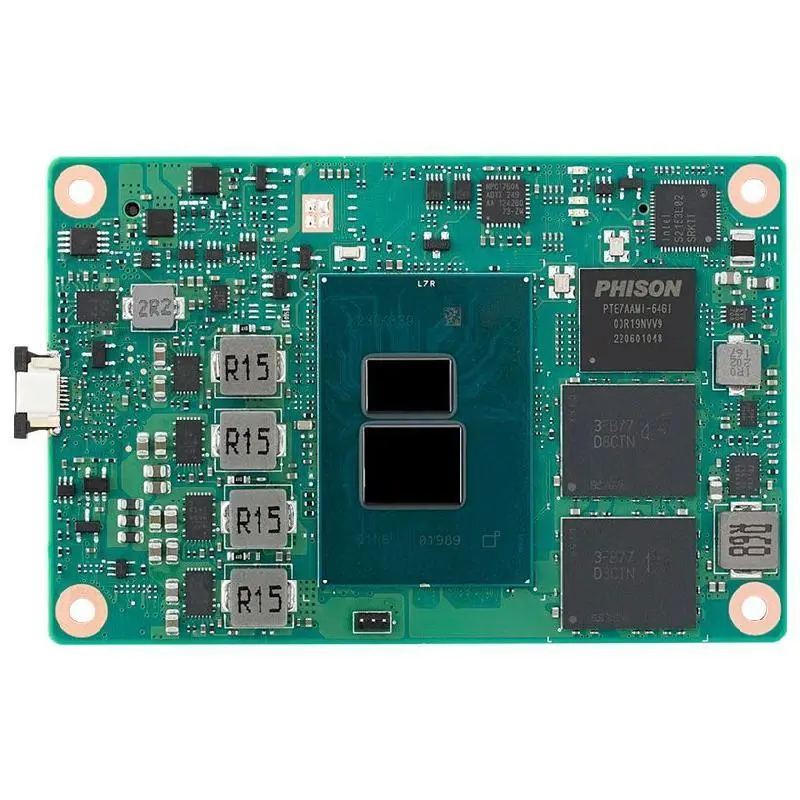

Advantech SOM-7533 Intel® Core™ i3, N series and Atom® x7000 Series Processors (Alder Lake-N/Amston Lake) COM Express® Mini Type 10 Module

    COM Express® R3.1 Mini Module Type 10 Pinout

    Intel® Core™ i3, N series and Atom® x7000 Series Processors

    Single-CH LPDDR5 4800MT/s up to 16GB, support IBECC

    2.5GbE support TSN

    Multiple I/O expansion: PCIe gen3, USB3.2 Gen2, SATA3.0

    On board eMMC (Optional)

    Supports iManager, Embedded Software APIs and Wise-DeviceOn

SOM-7533DCCC-S8A1 SOM-7533CCBC-U0A1 SOM-7533DCBC-S0A1 SOM-7533BCAC-S0A1 SOM-7533CCBC-S5A1 SOM-7533RDCBX-S3A1 SOM-7533RCCBX-S5A1 SOM-7533RBC0X-S0A1
Form Factor Form Factor COM Express Mini COM Express Mini COM Express Mini COM Express Mini COM Express Mini COM Express Mini COM Express Mini COM Express Mini
Form Factor Pin-out Type COM Express R3.1 Type 10 compatible COM Express R3.1 Type 10 compatible COM Express R3.1 Type 10 compatible COM Express R3.1 Type 10 compatible COM Express R3.1 Type 10 compatible COM Express R3.1 Type 10 compatible COM Express R3.1 Type 10 compatible COM Express R3.1 Type 10 compatible
Processor CPU i3-N305 N97 N200 N50 Intel Atom® x7425E Intel Atom® x7835RE Intel Atom® x7433RE Intel Atom® x7211RE
Processor Base Frequency 1 GHz 2.0 GHz 1 GHz 1.0/1.8 GHz 1.5 GHz 1.3GHz 1.5 GHz 1 GHz
Processor Max Turbo Frequency 3.4GHz 3.6GHz 3.7 GHz 3.8 GHz 3.4GHz 3.6GHz 3.4GHz 3.2 GHz
Processor Core Number 8 4 4 2 4 8 4 2
Processor CPU TDP 9/15W 12W 6W 6W 12W 12W 9W 6W
Processor BIOS AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit
Memory Technology LPDDR5 LPDDR5 LPDDR5 LPDDR5 LPDDR5 LPDDR5 LPDDR5 LPDDR5
Memory Max Speed 4800 MT/s 4800 MT/s 4800 MT/s 4800 MT/s 4800 MT/s 4800 MT/s 4800 MT/s 4800 MT/s
Memory Max. Capacity 16 GB 8GB 16 GB 4GB 8GB 16 GB 8GB 4GB
Memory ECC Support Yes Yes Yes Yes Yes Yes Yes Yes
Storage eMMC 64GB 32GB 32GB 16/32/64GB* (Optional) 32GB 32GB 32GB N/A
Graphics Controller Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics
Graphics Base Frequency 600 MHz 850 MHz 450 MHz 1.0 GHz 800 MHz 800 MHz 600 MHz 400MHz
Graphics Max. Frequency 750MHz 1.20 GHz 750MHz 1.25 GHz 1 GHz 1 GHz 800MHz 800MHz
Display DDI (HDMI/DVI/DisplayPort) 1 1 1 1 1 1 1 1
Environment Operational Temperature 0 ~ 60°C 0 ~ 60°C 0 ~ 60°C 0 ~ 60°C 0 ~ 60°C -40° C ~ 85° C -40° C ~ 85° C -40° C ~ 85° C
I/O SMBus Yes Yes Yes Yes Yes Yes Yes Yes
I/O I2C Bus Yes Yes Yes Yes Yes Yes Yes Yes
I/O SATA 2 2 2 2 2 2 2 2
I/O USB 3.2 2 2 2 2 2 2 2 2
I/O USB2.0 8 8 8 8 8 8 8 8
I/O SPI Bus Support SPI BIOS EEPROM Support SPI BIOS EEPROM Support SPI BIOS EEPROM Support SPI BIOS EEPROM Support SPI BIOS EEPROM Support SPI BIOS EEPROM Support SPI BIOS EEPROM Support SPI BIOS EEPROM
I/O GPIO 8-bit 8-bit 8-bit 8-bit 8-bit 8-bit 8-bit 8-bit
I/O Watchdog timer 65536 level, 0 ~ 65535 sec 65536 level, 0 ~ 65535 sec 65536 level, 0 ~ 65535 sec 65536 level, 0 ~ 65535 sec 65536 level, 0 ~ 65535 sec 65536 level, 0 ~ 65535 sec 65536 level, 0 ~ 65535 sec 65536 level, 0 ~ 65535 sec
I/O TPM TPM 2.0 TPM 2.0 TPM 2.0 TPM 2.0 TPM 2.0 TPM 2.0 TPM 2.0 TPM 2.0
I/O CANBus 2 2 2 2 2 2 2 2
Power Power Type ATX: Vin, VSB; AT: Vin ATX: Vin, VSB; AT: Vin ATX: Vin, VSB; AT: Vin ATX: Vin, VSB; AT: Vin ATX: Vin, VSB; AT: Vin ATX: Vin, VSB; AT: Vin ATX: Vin, VSB; AT: Vin ATX: Vin, VSB; AT: Vin
Environment Operating Temperature 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F) -40 ~ 85° C -40 ~ 85° C -40 ~ 85° C
Environment Storage Temperature - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F)
Environment Humidity 40° C @ 95% RH Non-Condensing 40° C @ 95% RH Non-Condensing 40° C @ 95% RH Non-Condensing 40° C @ 95% RH Non-Condensing 40° C @ 95% RH Non-Condensing 40° C @ 95% RH Non-Condensing 40° C @ 95% RH Non-Condensing 40° C @ 95% RH Non-Condensing
Environment Vibration Resistance 3.5 Grms 3.5 Grms 3.5 Grms 3.5 Grms 3.5 Grms 3.5 Grms 3.5 Grms 3.5 Grms
