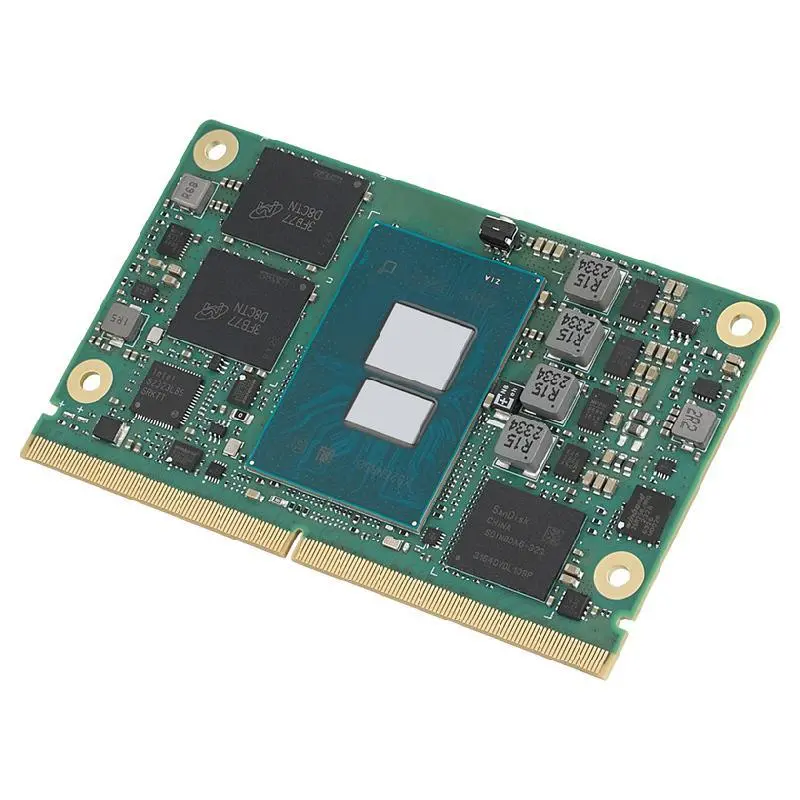

Advantech SOM-2533 Intel® Core™ i3, N series and Atom® x7000 Series Processors (Alder Lake-N/Amston Lake) SMARC Module

    SMARC2.1.1 pinout

    Intel® Core™ i3, N series and Atom® x7000 Series Processors

    Single-CH LPDDR5 4800MT/s up to 16GB, support IBECC

    Dual 2.5GbE LAN, support Ethernet TSN & Wi-Fi TSN

    Multiple I/O expansion: PCIe gen3, USB3.2 Gen2, SATA, CAN-bus

    On board eMMC (Optional)

    Supports iManager, Embedded Software APIs and Wise-DeviceOn

SOM-2533DNCC-S8A1 SOM-2533CCBC-S5A1 SOM-2533CN0C-S8A1 SOM-2533BN0C-U0A1 SOM-2533BN0C-S0A1 SOM-2533AN0C-S0A1 SOM-2533RDCBX-S3A1 SOM-2533RCCBX-S5A1 SOM-2533RBC0X-S0A1
Form Factor Pin-out Type SMARC 2.1.1 SMARC 2.1.1 SMARC 2.1.1 SMARC 2.1.1 SMARC 2.1.1 SMARC 2.1.1 SMARC 2.1.1 SMARC 2.1.1 SMARC 2.1.1
Processor CPU i3-N305 Intel Atom® x7425E i3-N305 N97 N200 N50 Intel Atom® x7835RE Intel Atom® x7433RE Intel Atom® x7211RE
Processor Base Frequency 1.0/1.8 GHz 1.5 GHz 1.0/1.8 GHz 2.0 GHz 1 GHz 1 GHz 1.3GHz 1.5 GHz 1 GHz
Processor Max Turbo Frequency 3.8 GHz 3.4GHz 3.8 GHz 3.6GHz 3.7 GHz 3.4GHz 3.6GHz 3.4GHz 3.2 GHz
Processor Core Number 8 4 8 4 4 2 8 4 2
Processor CPU TDP 9/15W 12W 9/15W 12W 6W 6W 12W 9W 6W
Processor BIOS AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit
Memory Max. Capacity 16 GB 8GB 16 GB 4GB 4GB 4GB 16 GB 8 GB 4GB
Memory RAM 16GB 8GB 8GB 4GB 4GB 4GB 16GB 8GB 4GB
Graphics Controller Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics
Graphics Base Frequency 250MHz 250MHz 250MHz 250MHz 250MHz 250MHz 250MHz 250MHz 400MHz
Graphics Max. Frequency 1.25 GHz 1 GHz 1.25 GHz 1.20 GHz 750MHz 750MHz 1 GHz 800MHz 800MHz
Storage eMMC 64GB 32GB 32GB 32GB 32GB 32GB 32GB 32GB N/A
Display LCD (TTL/LVDS/eDP) LVDS LVDS LVDS LVDS LVDS eDP LVDS LVDS LVDS
I/O SATA 1 1 1 1 1 1 1 1 1
I/O USB2.0 6 6 6 6 6 6 6 6 6
I/O USB 3.2 2 2 2 2 2 2 2 2 2
I/O GPIO 8-bit 8-bit 8-bit 8-bit 8-bit 8-bit 8-bit 8-bit 8-bit
I/O I2C Bus Yes Yes Yes Yes Yes Yes Yes Yes Yes
I/O SMBus Yes Yes Yes Yes Yes Yes Yes Yes Yes
I/O TPM Ftpm Ftpm Ftpm Ftpm Ftpm Ftpm Ftpm Ftpm Ftpm
Ethernet TSN support N/A Yes N/A N/A N/A N/A Yes Yes Yes
Power Power Supply Voltage 4.75~5.25V 4.75~5.25V 4.75~5.25V 4.75~5.25V 4.75~5.25V 4.75~5.25V 4.75~5.25V 4.75~5.25V 4.75~5.25V
Ethernet LAN 2 Ports 2 Ports 2 Ports 2 Ports 2 Ports 1 Port 2 Ports 2 Ports 2 Ports
I/O Interface CAN 2 Ports 2 Ports N/A N/A N/A N/A 2 Ports 2 Ports N/A
Environment Operational Temperature 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F) 0 ~ 60° C (32 ~ 140° F) -40~85C (-40~185° F) -40~85C (-40~185° F) -40~85C (-40~185° F)
Power Power Type ATX: Vin, VSB; AT: Vin ATX: Vin, VSB; AT: Vin ATX: Vin, VSB; AT: Vin ATX: Vin, VSB; AT: Vin ATX: Vin, VSB; AT: Vin ATX: Vin, VSB; AT: Vin ATX: Vin, VSB; AT: Vin ATX: Vin, VSB; AT: Vin ATX: Vin, VSB; AT: Vin
Environment Storage Temperature - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F)
Environment Humidity 40° C @ 95% RH Non-Condensing 40° C @ 95% RH Non-Condensing 40° C @ 95% RH Non-Condensing 40° C @ 95% RH Non-Condensing 40° C @ 95% RH Non-Condensing 40° C @ 95% RH Non-Condensing 40° C @ 95% RH Non-Condensing 40° C @ 95% RH Non-Condensing 40° C @ 95% RH Non-Condensing
Environment Vibration Resistance 3.5 Grms 3.5 Grms 3.5 Grms 3.5 Grms 3.5 Grms 3.5 Grms 3.5 Grms 3.5 Grms 3.5 Grms
Thermal Solution Thermal Solution Passive Passive Passive Passive Passive Passive Active Active Active
