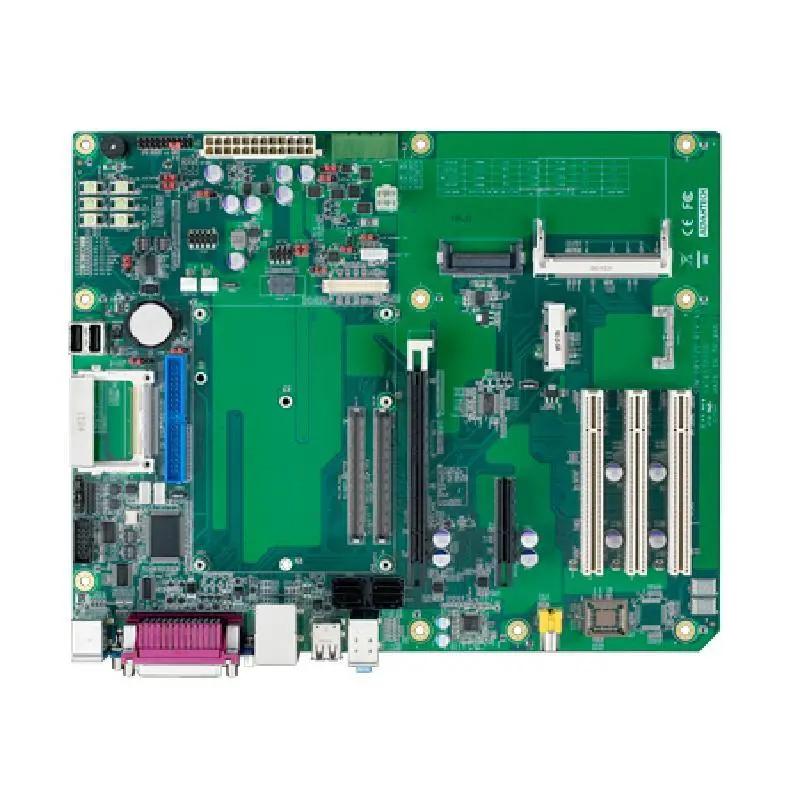

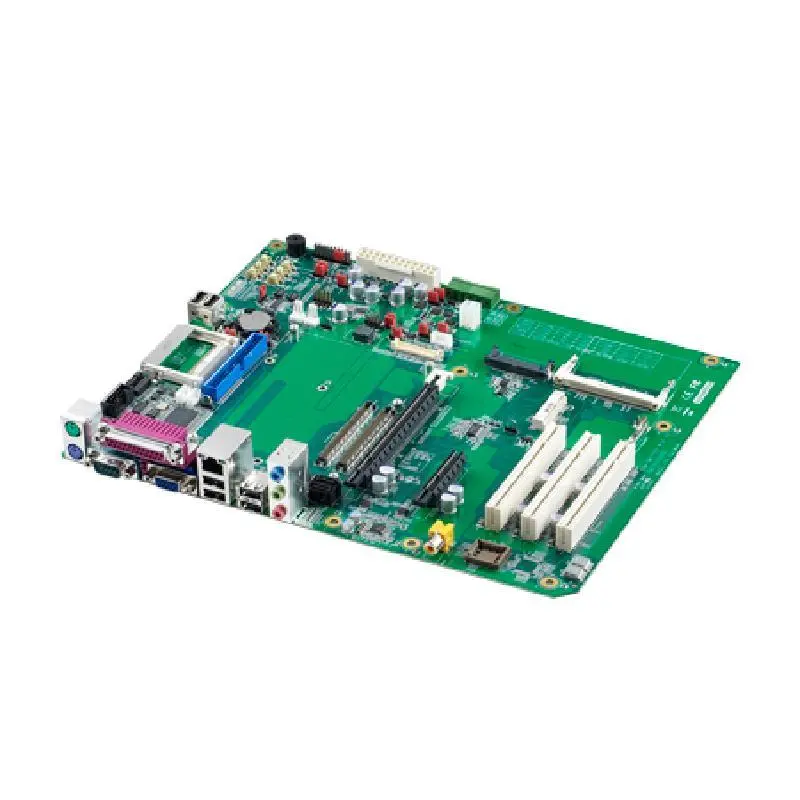

Advantech SOM-DB5720 Development Board for COM Express® R2.1 Type 2 / 1 Modules - industrial computer

Advantech SOM-DB5720 Development Board for COM Express® R2.1 Type 2 / 1 Modules

PICMG COM.0 R2.0 Type 1/2 Pin-out

COM Express® Basic/ Compact/ Mini module

Display Type: VGA, LVDS, HDMI/Display port

Expansion: PCIe x16, PCIe x4, PCIe x1, Mini-PCIe, Express Card, PCI, Mini- PCI, LPC, SMBus, I2C

Visible Debug Utility: BIOS 80 Port and Power State

Inquiry

Description
