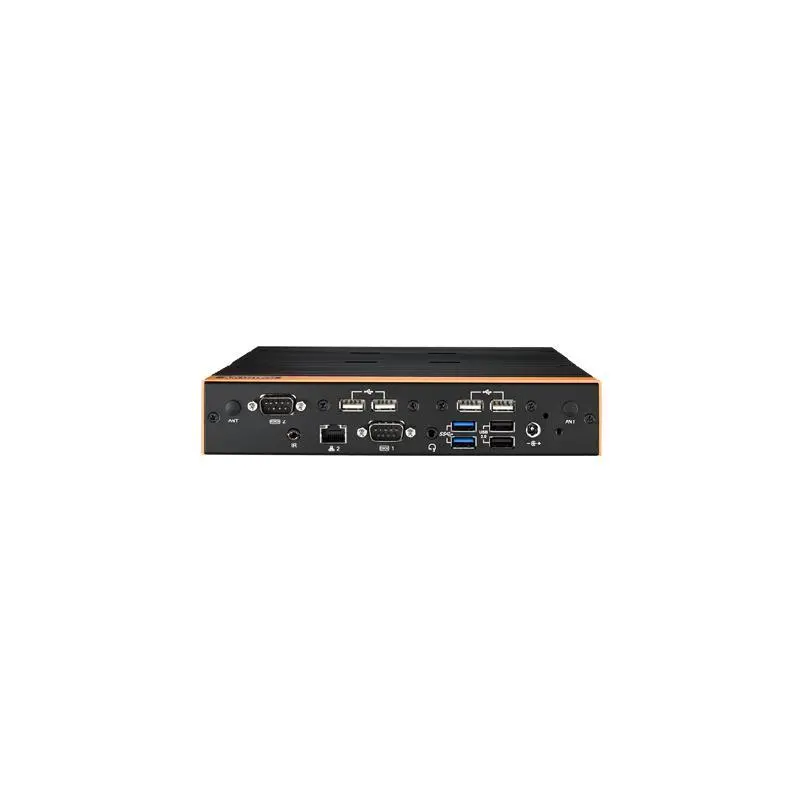

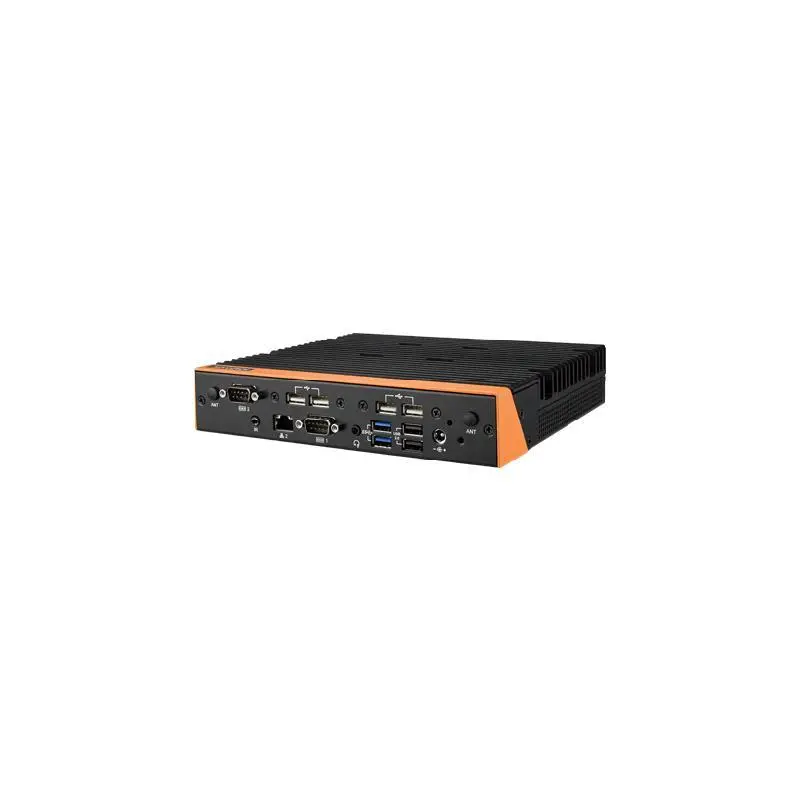

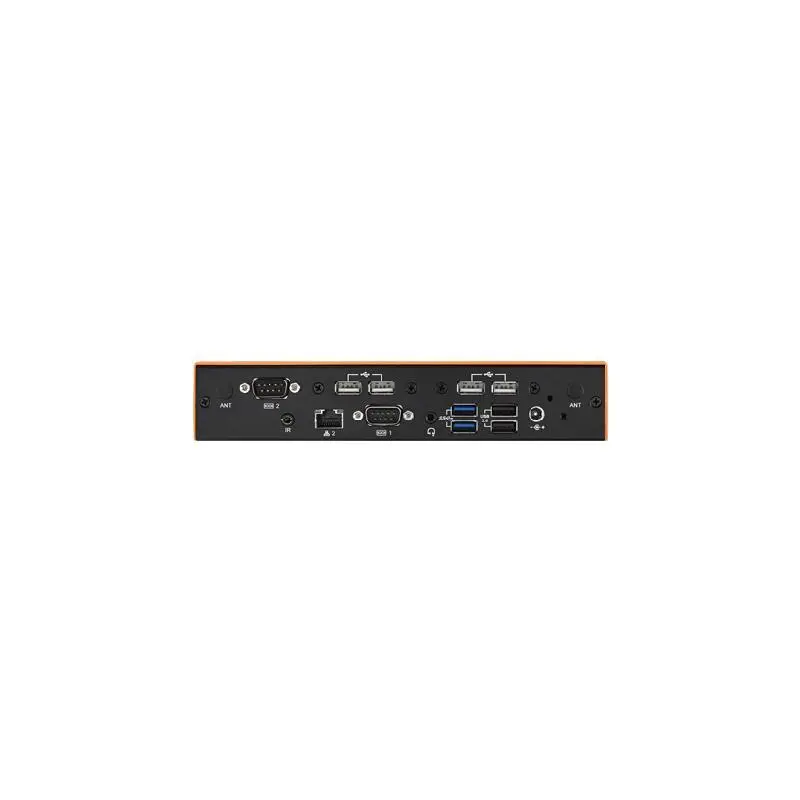

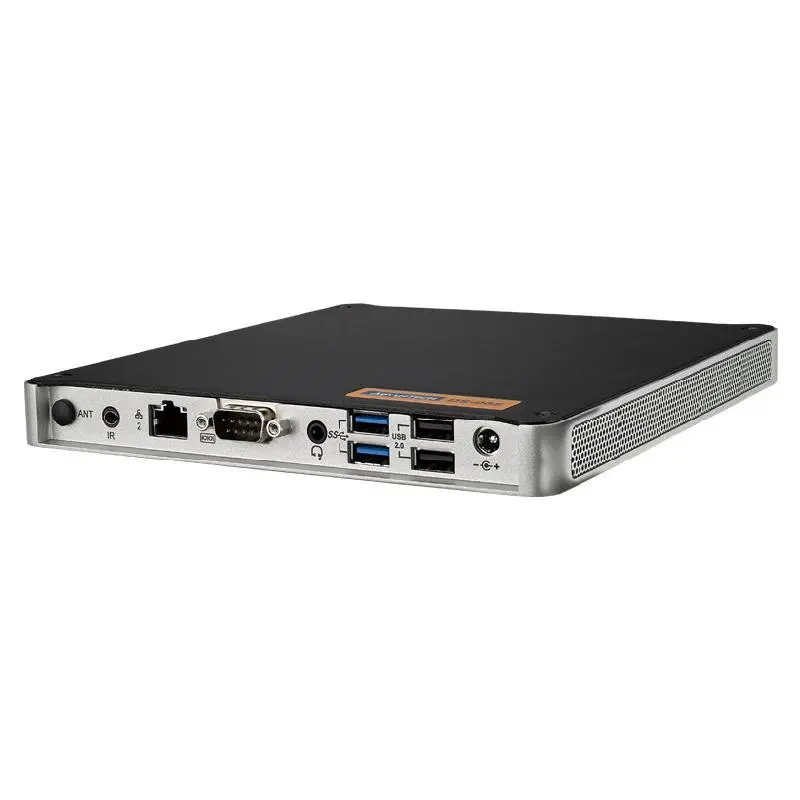

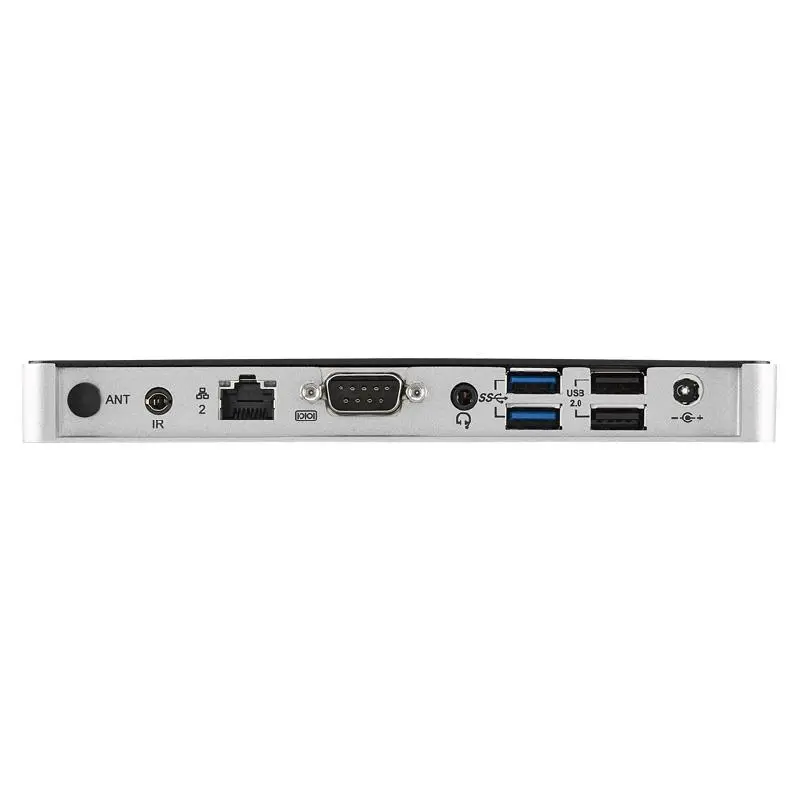

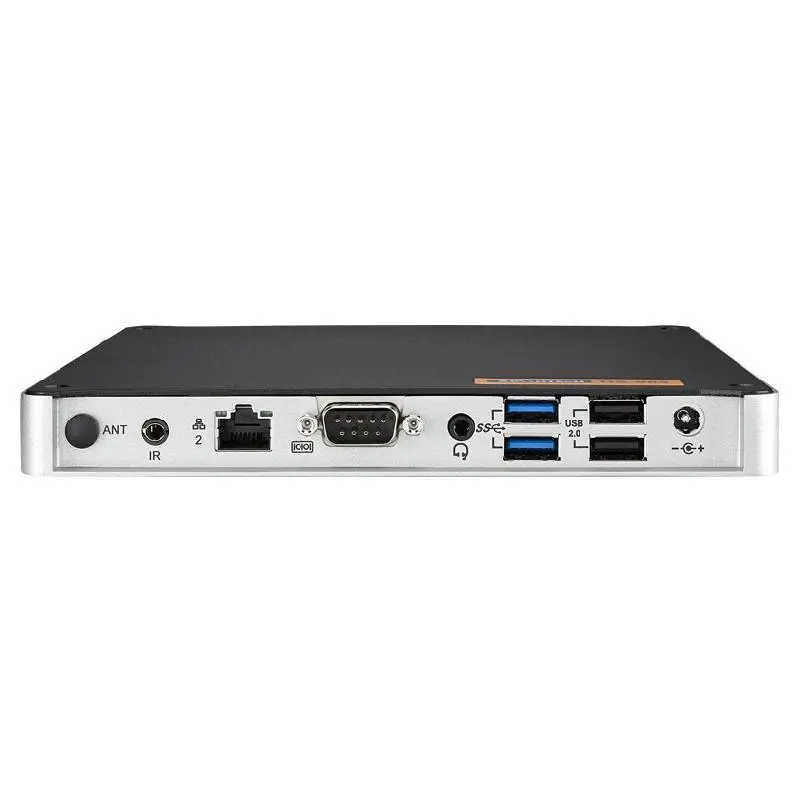

Advantech DS-085 Intel Tiger Lake UP3 Ultra-slim Digital Signage Player

    Power by Intel Tiger Lake UP3 processor

    Powerful graphic engine - Intel iRIS Xe graphics

    19mm-thin chassis ideal for space-limited installation

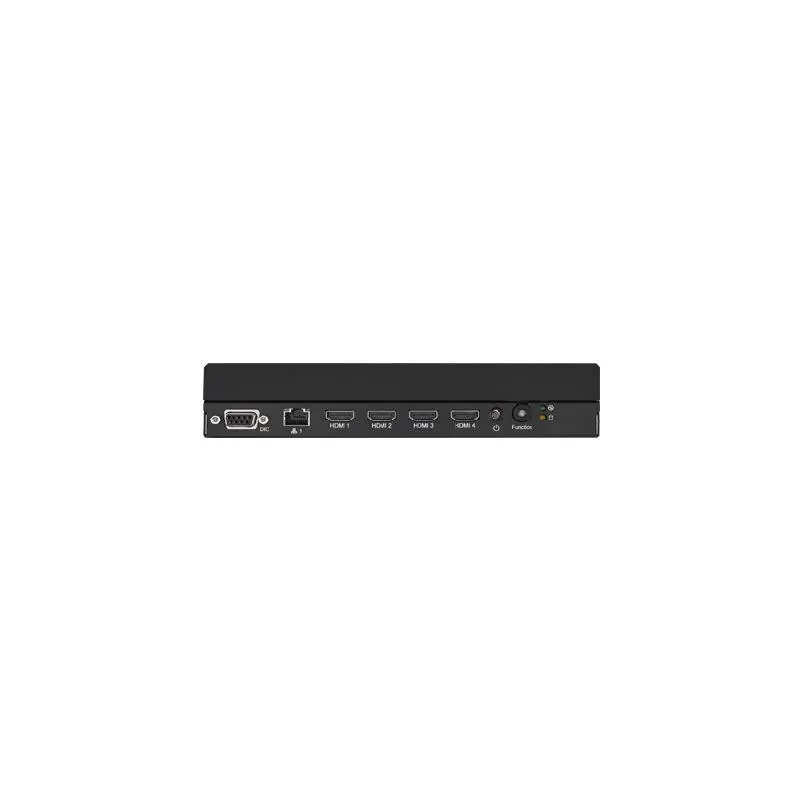

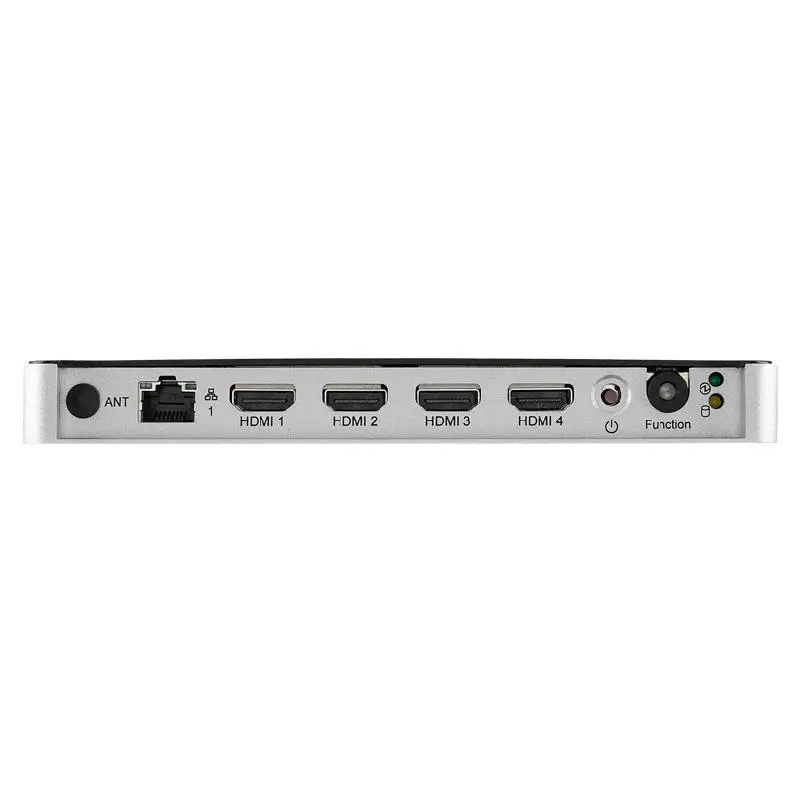

    4 HDMI display output, resolution up to 4K(3840 x 2160)

    Cable-less design for easy maintenance

    Supports WISE-PaaS/DeviceOn and Embedded Software APIs

    Supports WebAccess/SignageCMS for intuitive signage content managing, remote monitoring and control

    Energy Star® certified for cutting edge energy efficiency & money saving

    With Energy Star® certified, make the product more environmental friendly(www.energystar.gov/powermanagement )

DS-085SGB-U1A1E DS-085SGB-U2A1E DS-085SGB-U3A1E DS-085LGB-U3A1E DS-085LGB-U4A1E
Processor CPU Intel Celeron 6305E Intel Core i3-1115G4E Intel Core i5-1145G7E Intel Core i3-1115G4E Intel Core i5-1145G7E
Processor Chipset Integrated in SOC Integrated in SOC Integrated in SOC Integrated in SOC Integrated in SOC
Processor BIOS AMI UEFI 128 Mbit AMI UEFI 128 Mbit AMI UEFI 128 Mbit AMI UEFI 128 Mbit AMI UEFI 128 Mbit
Memory Technology DDR4 2666MHz DDR4 2666MHz DDR4 2666MHz DDR4 2666MHz DDR4 2666MHz
Memory Max. Capacity 32GB (16GB per SODIMM) 32GB (16GB per SODIMM) 32GB (16GB per SODIMM) 32GB (16GB per SODIMM) 32GB (16GB per SODIMM)
Memory Socket 2 x 260-pin SO-DIMM 2 x 260-pin SO-DIMM 2 x 260-pin SO-DIMM 2 x 260-pin SO-DIMM 2 x 260-pin SO-DIMM
Thermal Solution Thermal Solution FANLESS FANLESS FANLESS FANLESS FANLESS
Display Resolution 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160
I/O Interface USB2.0 2 2 2 2 2
I/O Interface USB3.0 2 2 2 2 2
I/O Audio 1(SPDIF/ Line-out/ Mic-in), support Jack Sense 1(SPDIF/ Line-out/ Mic-in), support Jack Sense 1(SPDIF/ Line-out/ Mic-in), support Jack Sense 1(SPDIF/ Line-out/ Mic-in), support Jack Sense 1(SPDIF/ Line-out/ Mic-in), support Jack Sense
I/O HDMI 4 4 4 4 4
I/O LAN 2 (RJ-45) 2 (RJ-45) 2 (RJ-45) 2 (RJ-45) 2 (RJ-45)
I/O LED Indicators 1 x Power, 1 x HDD Access 1 x Power, 1 x HDD Access 1 x Power, 1 x HDD Access 1 x Power, 1 x HDD Access 1 x Power, 1 x HDD Access
I/O PSW 1 x Power on/off button 1 x Power on/off button 1 x Power on/off button 1 x Power on/off button 1 x Power on/off button
I/O Serial port 1 x RS-232 1 x RS-232 1 x RS-232 2 x RS-232 2 x RS-232
Watchdog Timer Interval 255-level timer interval, setup by software 255-level timer interval, setup by software 255-level timer interval, setup by software 255-level timer interval, setup by software 255-level timer interval, setup by software
Watchdog Timer Output Interrupt, system reset Interrupt, system reset Interrupt, system reset Interrupt, system reset Interrupt, system reset
Physical Characteristics Dimensions (W x D x H) 180 x 190 x 19 mm 180 x 190 x 19 mm 180 x 190 x 19 mm 180 x 190 x 19 mm 180 x 190 x 19 mm
Physical Characteristics Weight 0.87 kg (1.92 lb) 0.87 kg (1.92 lb) 0.87 kg (1.92 lb) 0.87 kg (1.92 lb) 0.87 kg (1.92 lb)
Physical Characteristics Mounting VESA/Desk/Wall/Din Rail VESA/Desk/Wall/Din Rail VESA/Desk/Wall/Din Rail VESA/Desk/Wall/Din Rail VESA/Desk/Wall/Din Rail
Power Input Voltage 19 V DC-in (ATX/AT mode) 19 V DC-in (ATX/AT mode) 19 V DC-in (ATX/AT mode) 19 V DC-in (ATX/AT mode) 19 V DC-in (ATX/AT mode)
Environment Relative Humidity 95% @ 40° C (non-condensing), Operating 95% @ 40° C (non-condensing), Operating 95% @ 40° C (non-condensing), Operating 95% @ 40° C (non-condensing), Operating 95% @ 40° C (non-condensing), Operating
Software Development Kit Operating System Supports Win7 x64/x86, Win8.1 x64, Win10 x64 Supports Win7 x64/x86, Win8.1 x64, Win10 x64 Supports Win7 x64/x86, Win8.1 x64, Win10 x64 Supports Win7 x64/x86, Win8.1 x64, Win10 x64 Supports Win7 x64/x86, Win8.1 x64, Win10 x64
Software Development Kit Linux by Project support by Project support by Project support by Project support by Project support
Certification EMC CE, FCC Class B, CCC, BSMI CE, FCC Class B, CCC, BSMI CE, FCC Class B, CCC, BSMI CE, FCC Class B, CCC, BSMI CE, FCC Class B, CCC, BSMI
Certification Safety Certifications UL, CB, CCC, BSMI UL, CB, CCC, BSMI UL, CB, CCC, BSMI UL, CB, CCC, BSMI UL, CB, CCC, BSMI
Storage M.2 M.2 2242 M Key M.2 2242 M Key M.2 2242 M Key M.2 2242 M Key M.2 2242 M Key
Power Requirement Management ACPI 3.0 ACPI 3.0 ACPI 3.0 ACPI 3.0 ACPI 3.0
Environment Operational Temperature 0 ~ 40° C (32 ~ 104° F), w/o system fan w/ 0.7m/s airflow, 40° C @ 95% RH Non-Condensing 0 ~ 40° C (32 ~ 104° F), w/o system fan w/ 0.7m/s airflow, 40° C @ 95% RH Non-Condensing 0 ~ 40° C (32 ~ 104° F), w/o system fan w/ 0.7m/s airflow, 40° C @ 95% RH Non-Condensing 0 ~ 55° C 0 ~ 55° C
Software Development Kit Signage Software WISE-PaaS/RMM & WebAccess/IMM WISE-PaaS/RMM & WebAccess/IMM WISE-PaaS/RMM & WebAccess/IMM WISE-PaaS/RMM & WebAccess/IMM WISE-PaaS/RMM & WebAccess/IMM
Operating System Ubuntu V V V V V
