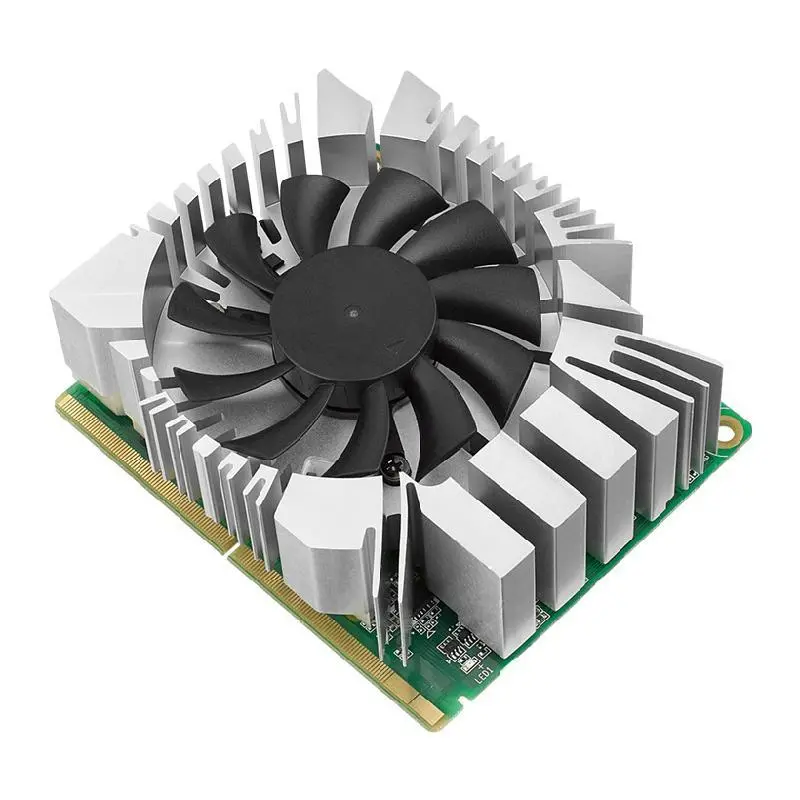

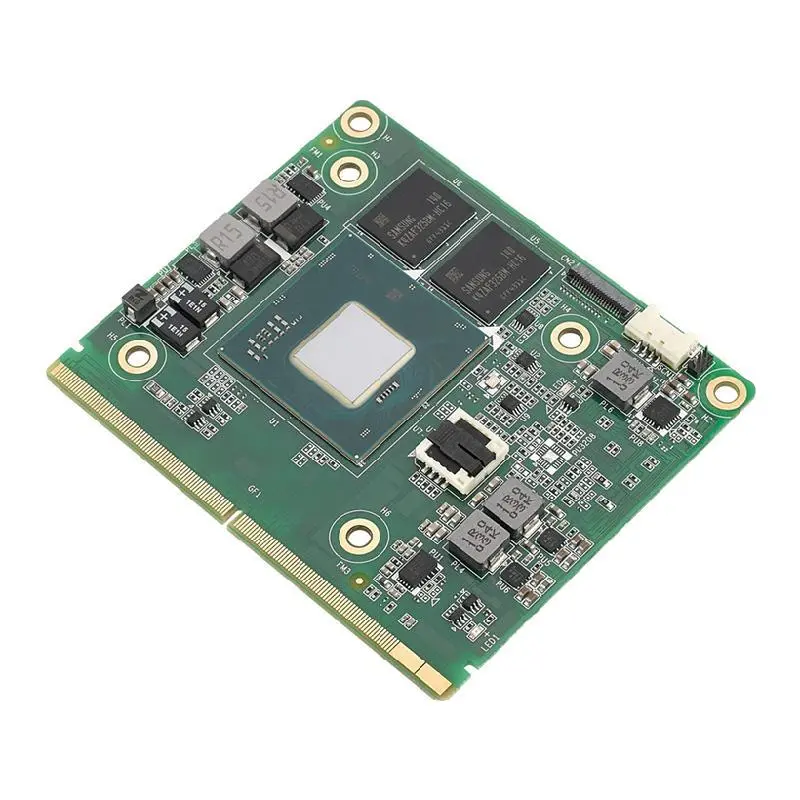

Advantech EAI-2100 MXM 3.1 Type A Intel Arc A370M Embedded GPU Card with DP 1.4a

Intel Arc A370M with 1550 MHz Base Clock, GDDR6 4GB 64 bit Memory, up to 4.198 TFLOPS

TGP 40W Low consumption with optional thermal kit, support 0-60°C working temperature

Reserved DP 1.4a x4 displays up to 8K UHD resolution

Advantech Edge AI SDK and Intel OpenVINO support

DirectX12, OpenGL 4.6, OpenCL 3.0, H.264/H.265 (HEVC)/AV1 hardware encode/decode support

		EAI-2100-00A1
Processor	GPU	Intel® Arc™ A370M
Memory	Technology	GDDR6 4GB
Interface	Signal Interface	MXM 3.1 PCI Express Gen 4 x8 with 3.0 Backwards Compatibility
Cooling	Cooling	Fansink (option) , Heat spreader (option)
Power Consumption	Maximum	40W
Physical Characteristics	Dimensions (W x D)	82 x 70 mm
Environment	Operational Temperature	0 ~ 60°C
Graphics	DP	Reserved 4x DisplayPort1.4a
