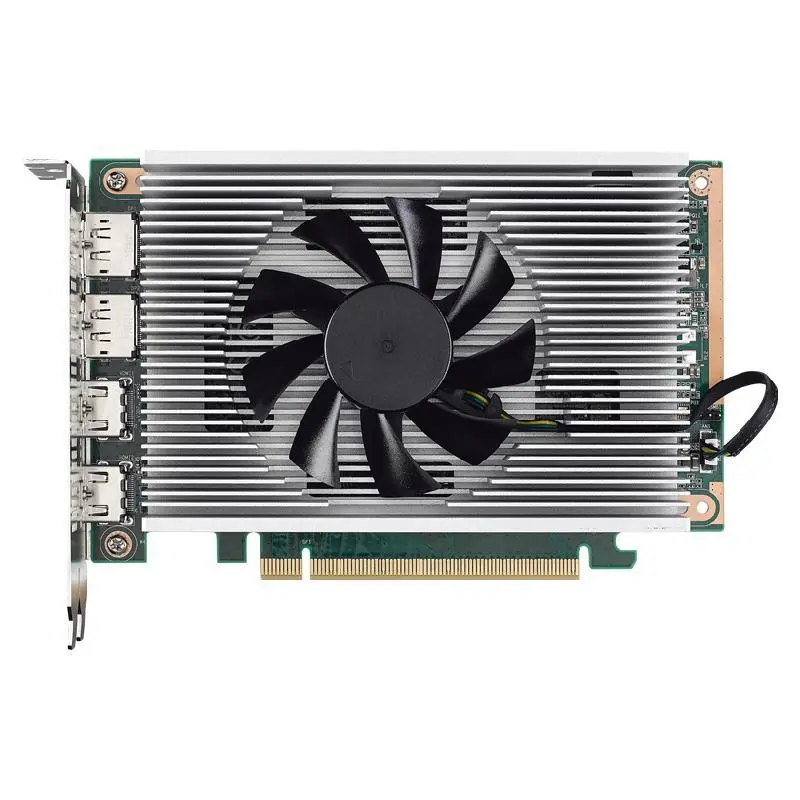

Advantech EAI-3100 PCIe x16 Intel Arc A370M Embedded GPU Card with 2x HDMI 2.0b + 2x DP 1.4a - industrial computer

Advantech EAI-3100 PCIe x16 Intel Arc A370M Embedded GPU Card with 2x HDMI 2.0b + 2x DP 1.4a

Intel Arc A370M with 1550 MHz Base Clock, GDDR6 4GB 64 bit Memory, up to 4.198 TFLOPS

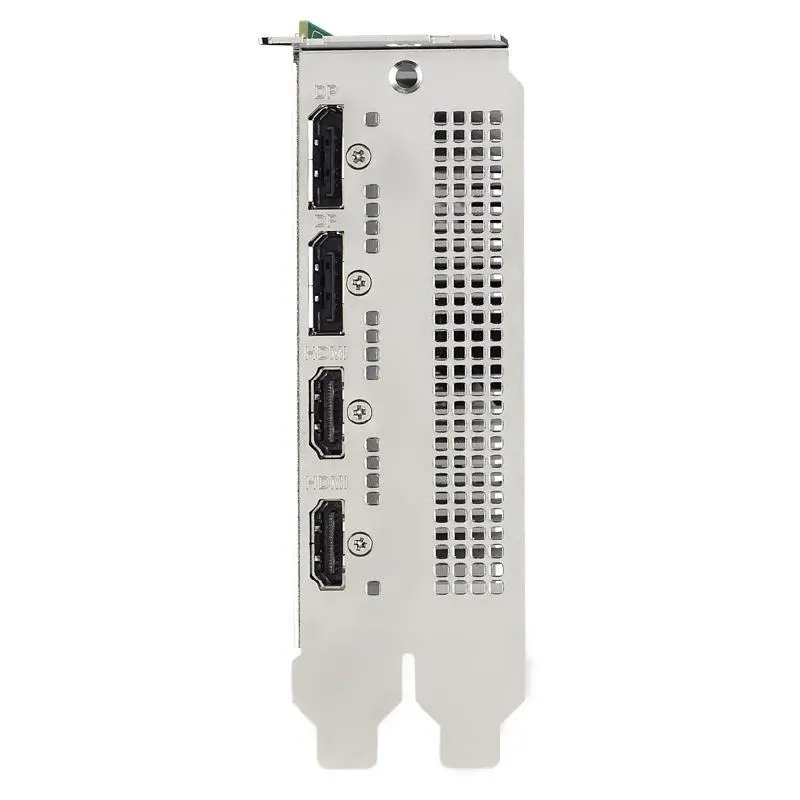

High Resolution 8K DP 1.4a x2 + 4K HDMI 2.0b x2, up to 4 Displays

0-60°C working temperature support w/ auto smart fan

Advantech Edge AI SDK and OpenVINO support

DirectX12, OpenGL 4.6, OpenCL 3.0, AV1/H.264/H.265 (HEVC) hardware encode/decode support

Inquiry

Description

		EAI-3100-41A1
Processor	GPU	Intel® Arc™ A370M
Memory	Technology	GDDR6 4GB
Interface	Signal Interface	PCI Express Gen 4.0 x8
Environment	Temperature (Operating)	0 ~ 60°C
Cooling	Cooling	Active fan 12V, 4 pin PH 1.25mm connector
Graphics	HDMI	2 x HDMI 2.0b
Graphics	DP	2 x DisplayPort1.4a
Power Consumption	Maximum	60W
Physical Characteristics	Dimensions (W x D x H)	168 x 110 x 34.8 mm (Dual Slot)
