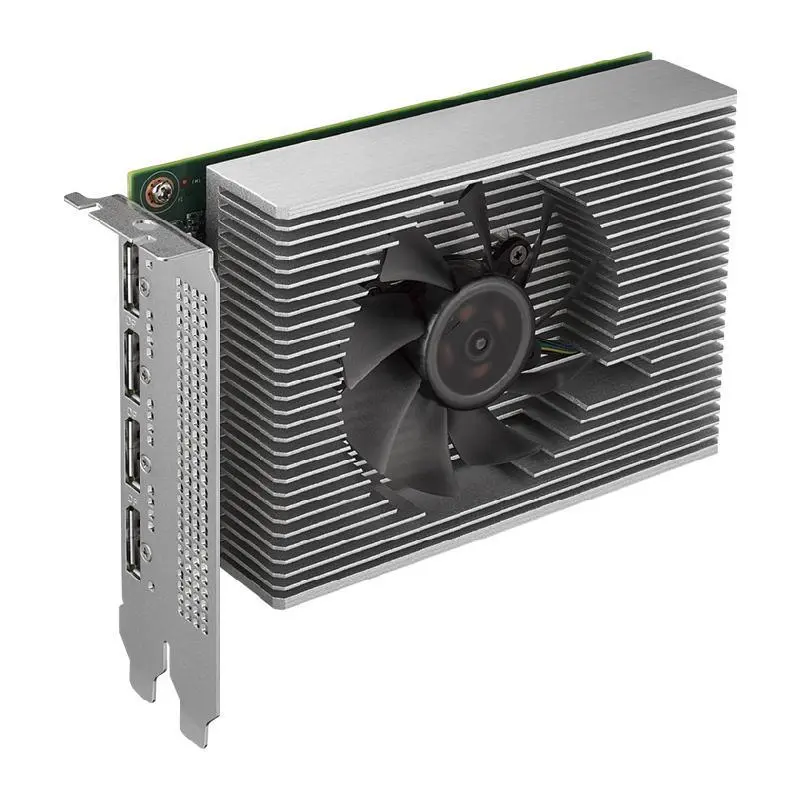

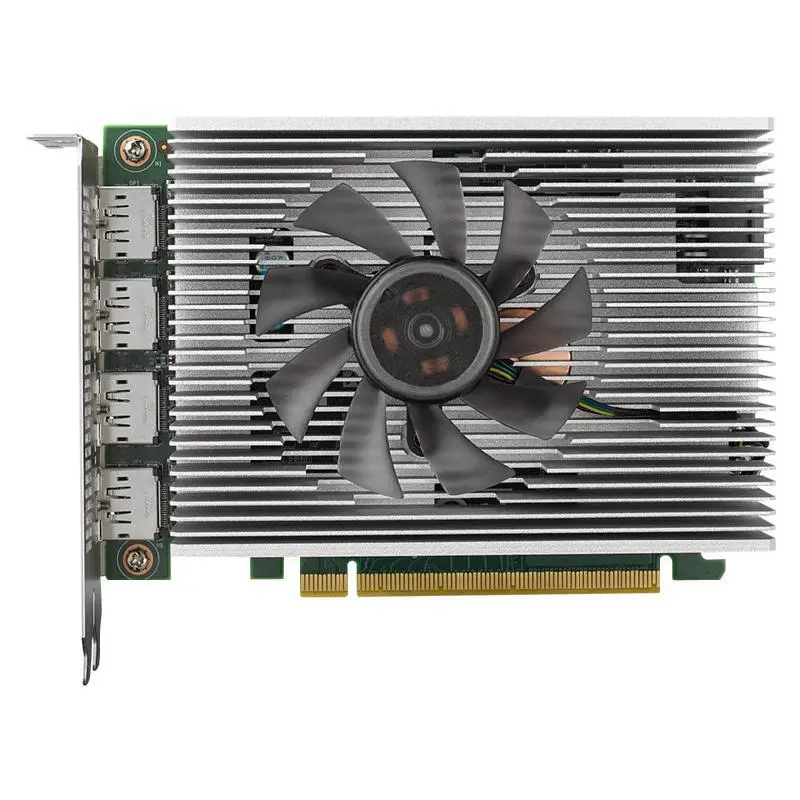

Advantech EAI-3101 PCIe x16 Intel Arc A380E Embedded GPU Card with 4x DP 1.4a - industrial computer

Advantech EAI-3101 PCIe x16 Intel Arc A380E Embedded GPU Card with 4x DP 1.4a

Intel Arc A380E with 2000 MHz Base Clock, GDDR6 6GB 96 bit Memory, up to 5.018 TFLOPS

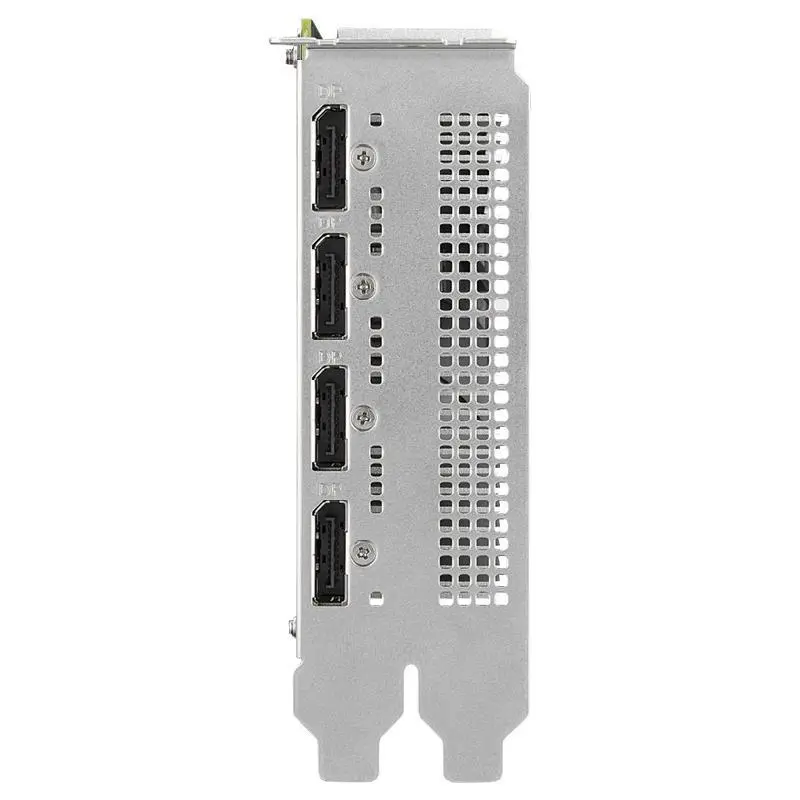

4x DP1.4a up to 8K UHD resolution

0-60°C working temperature support w/ auto smart fan

Advantech Edge AI SDK and Intel OpenVINO support

AV1, DirectX12, OpenGL 4.6, OpenCL 3.0, H.264/H.265 (HEVC) hardware encode/decode support

Inquiry

Description

		EAI-3101-41A1
Processor	GPU	Intel® Arc™ A380E
Memory	Technology	GDDR6 6GB
Interface	Signal Interface	PCI Express Gen 4.0 x8
Environment	Temperature (Operating)	0 ~ 60°C
Cooling	Cooling	Active fan 12V, 4 pin PH 1.25mm connector
Graphics	DP	4x DisplayPort1.4a
Power Consumption	Maximum	85W
Physical Characteristics	Dimensions (W x D x H)	152 x 110 x 34.8 mm (Dual Slot)
