| VEGA-320-01A1 | ||
| Processor | SOC | one Myriad X MA2485 |
| Form Factor | Form Factor | M.2 2230 (Key A+E) |
| Dimensions | Dimensions (W x H x D) | 22mm x 30mm x 3.63mm |
| Interface | Signal Interface | PCIe Gen2 x1, USB 2.0 |
| Environment | Operating Temperature | -20 ~ 60 °C, with 0.7m/s air flow |
| Power Consumption | Power Consumption | 3.8W |
| Cooling | Cooling | Passive cooling |
| Operating System | Others | Windows 10 Enterprise 64 bit, Ubuntu 16.04.3 LTS (64 bit), CentOS 7.4 (64 bit) |
| OpenVINO | OpenVINO | OpenVINO R2 2019 or latest |
| Framework Support | Framework Support | TensorFlow, Caffe |

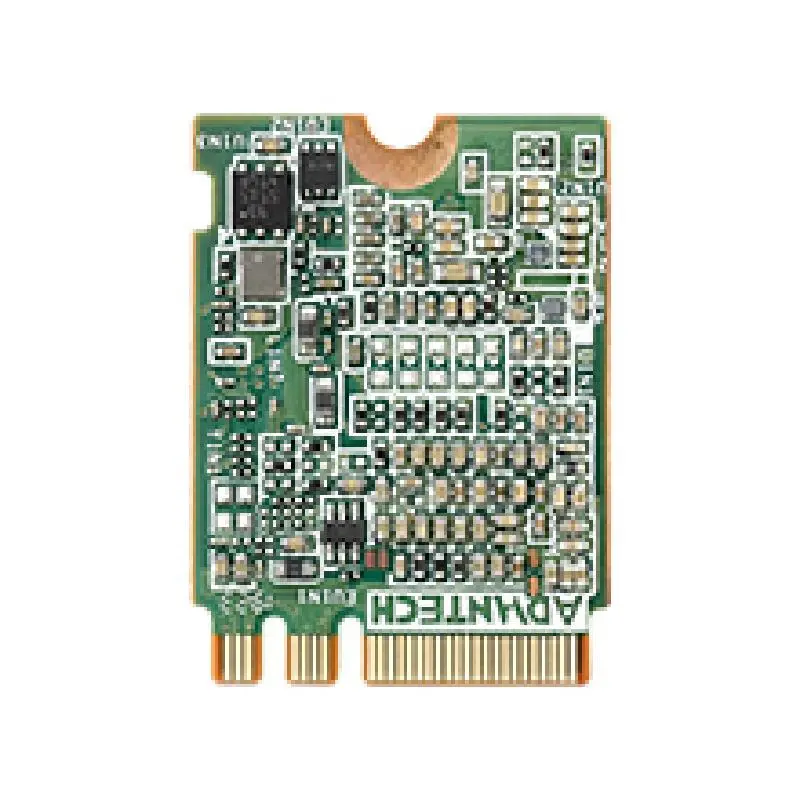

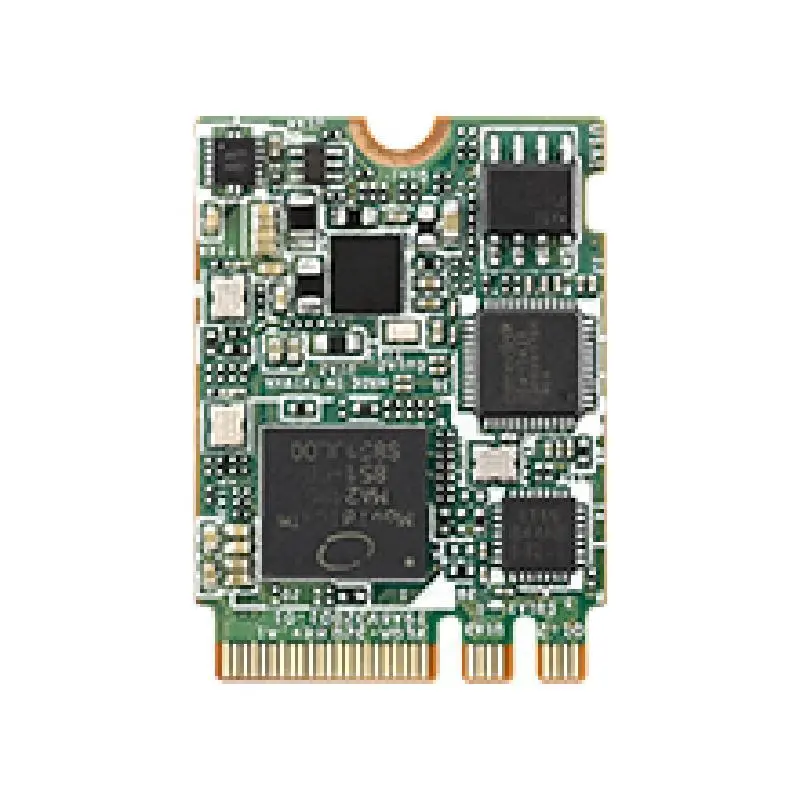

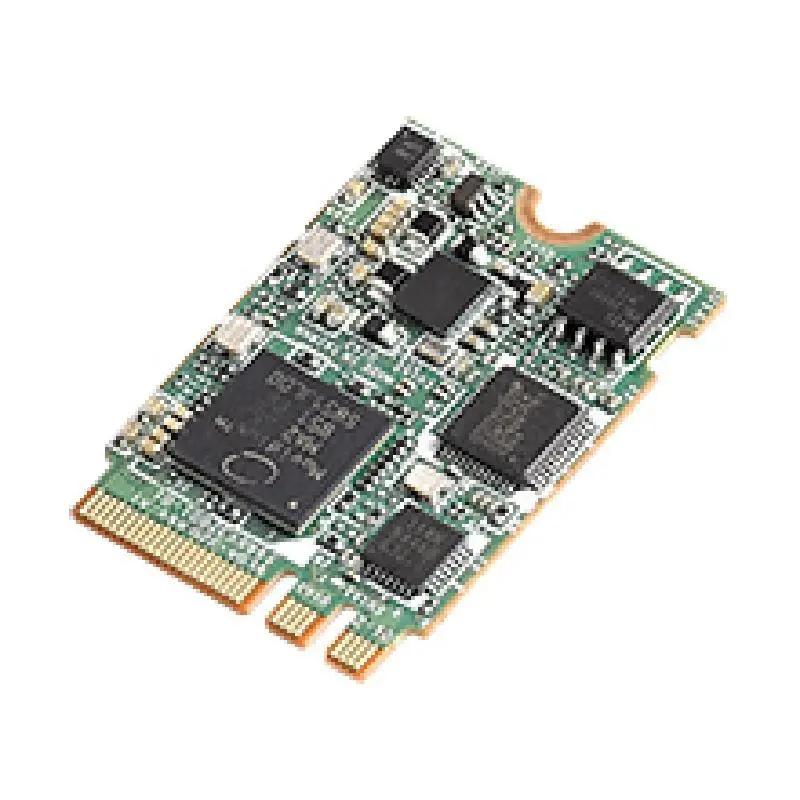

Advantech VEGA-320 m.2 Edge AI Module with one Intel® Movidius™ Myriad™ X VPU onboard
