| VEGA-340-04A1 | VEGA-340-08A1 | ||
| Processor | SOC | Four Myriad X MA2485 | Eight Myriad X MA2485 |
| Interface | Signal Interface | PCI Express x4, compliant with PCI Express Specification V2.0 | PCI Express x4, compliant with PCI Express Specification V2.0 |
| Power Consumption | Typical | 6.7 W | 9.6 W |
| Power Consumption | Maximum | 16.8 W | 28 W |
| Cooling | Cooling | Active fan 12V, 2 pin PH 1.25mm connector | Active fan 12V, 2 pin PH 1.25mm connector |
| Power | Power source | Default from PCIe gold finger, 6-pin connector for 12 VDC input by cable | Default from PCIe gold finger, 6-pin connector for 12 VDC input by cable |
| Dimensions | Dimensions (W x H x D) | 171.07 x 68.9 mm | 171.07 x 68.9 mm |
| Environment | Temperature (Operating) | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) |
| Operating System | Microsoft Windows | Windows 10 Enterprise 64 bit | Windows 10 Enterprise 64 bit |
| OpenVINO | OpenVINO | OpenVINO R2 2019 or latest | OpenVINO R2 2019 or latest |
| Operating System | Linux | Ubuntu 18.04 LTS 64 bit | Ubuntu 18.04 LTS 64 bit |

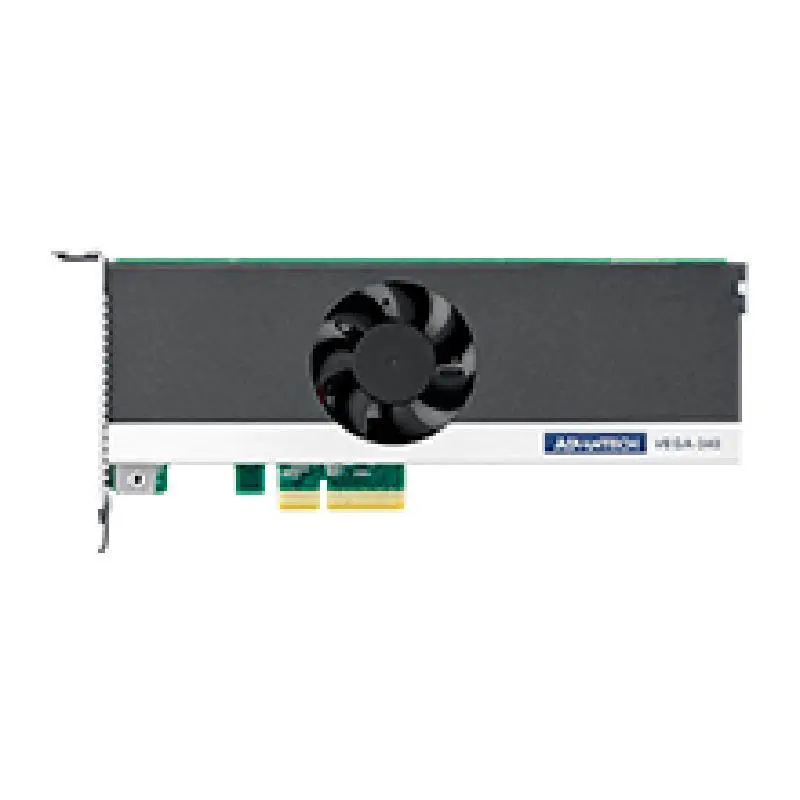

Advantech VEGA-340 PCIe x4 with 4x/8x Intel® Movidius™ Myriad™ X VPU Edge AI Acceleration Module
