| AFE-R360C7P-Q8A1 | AFE-R360C5P-Q5A1 | AFE-R360C7-Q8A1 | AFE-R360C5-Q3A1 | ||
| Processor | CPU | Intel® Core™ Ultra 7 155H | Intel® Core™ Ultra 5 processor 125H | Intel® Core™ Ultra 7 processor 155U | Intel® Core™ Ultra 5 125U |
| Processor | CPU TDP | 28W | 28W | 15 W | 15 W |
| Processor | BIOS | AMI EFI 256 Mbit | AMI EFI 256 Mbit | AMI EFI 256 Mbit | AMI EFI 256 Mbit |
| Graphics | EU | 128 | 112 | 128 | 112 |
| Memory | Technology | DDR5 5600 MHz | DDR5 5600 MHz | DDR5 5600 MHz | DDR5 5600 MHz |
| Memory | Max. Capacity | Up to 96GB | Up to 96GB | Up to 96GB | Up to 96GB |
| Memory | Socket | 2 x 262 pin DDR5 SO-DIMM | 2 x 262 pin DDR5 SO-DIMM | 2 x 262 pin DDR5 SO-DIMM | 2 x 262 pin DDR5 SO-DIMM |
| Rear I/O Interface | HDMI / DisplayPort* | 1/0 | 1/0 | 1/0 | 1/0 |
| Rear I/O Interface | Ethernet | 3 (RJ-45) | 3 (RJ-45) | 3 (RJ-45) | 3 (RJ-45) |
| Rear I/O Interface | USB 3.0 | 2 | 2 | 2 | 2 |
| Power | Power Supply Voltage | Vin: 12-24V | Vin: 12-24V | Vin: 12-24V | Vin: 12-24V |
| Power | Connector | 2-pin phoenix head | 2-pin phoenix head | 2-pin phoenix head | 2-pin phoenix head |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Humidity | 40C at 95% RH Non-Condensing | 40C at 95% RH Non-Condensing | 40C at 95% RH Non-Condensing | 40C at 95% RH Non-Condensing |
| Environment | Vibration Resistance | 3.5 Grm | 3.5 Grm | 3.5 Grm | 3.5 Grm |
| Certification | EMC | CE, FCC | CE, FCC | CE, FCC | CE, FCC |
| Operating System | Window 11 IoT Enterprise | V | V | V | V |
| Operating System | Ubuntu | V | V | V | V |

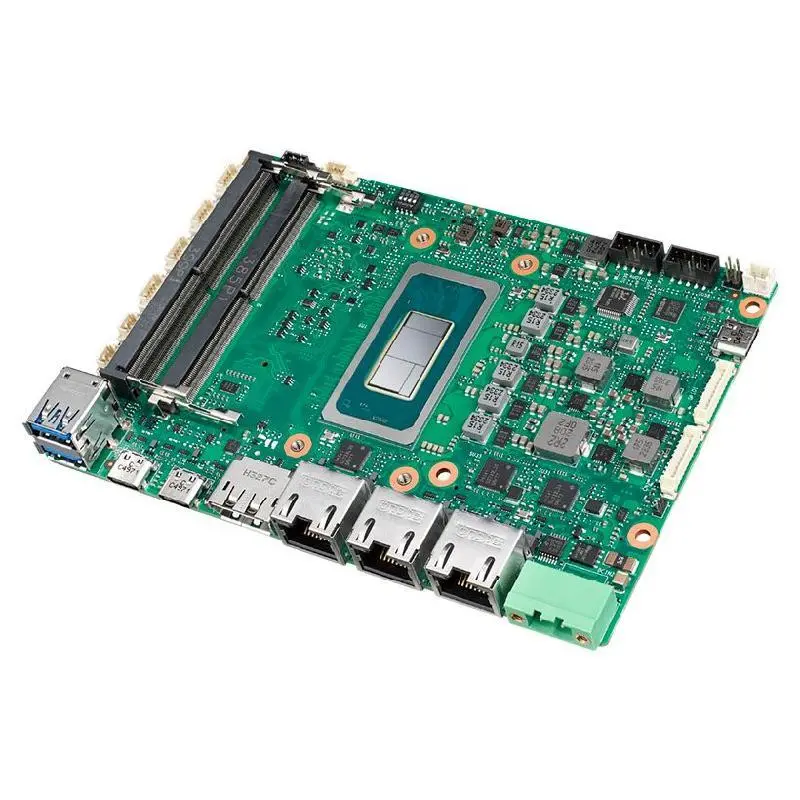

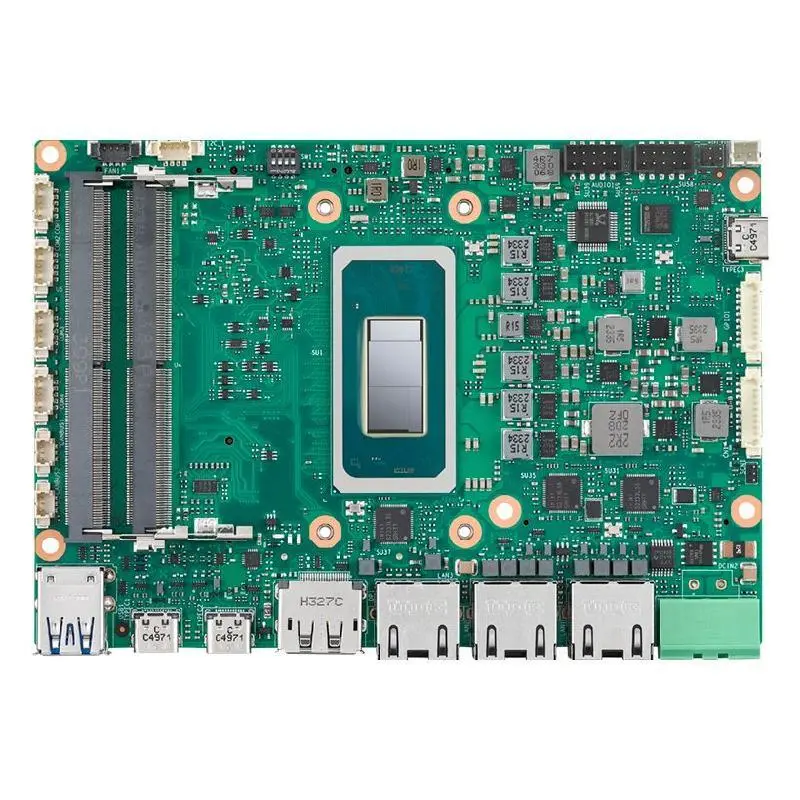

Advantech AFE-R360 Intel® Core™ Ultra U/H-series 3.5" SBC
