| AIMB-592SF-0AA1 | AIMB-592SL-0AA1 | ||
| Form Factor | Form Factor | Micro ATX | Micro ATX |
| Processor | CPU TDP | Up to 225W | Up to 225W |
| Processor | Core Number | Up to 64C | Up to 64C |
| Processor | Frequency | 3.675 ~ 3.7GHz | 3.675 ~ 3.7GHz |
| Processor | L3 Cache | Up to 256MB | Up to 256MB |
| Processor | BIOS | AMI EFI 256 Mbit | AMI EFI 256 Mbit |
| Memory | Max. Capacity | 128GB | 128GB |
| Memory | Technology | Six Channel DDR4 3200MHz RDIMM | Six Channel DDR4 3200MHz RDIMM |
| Memory | ECC Support | Yes | Yes |
| Memory | Socket | 6 x 288-pin DIMM | 6 x 288-pin DIMM |

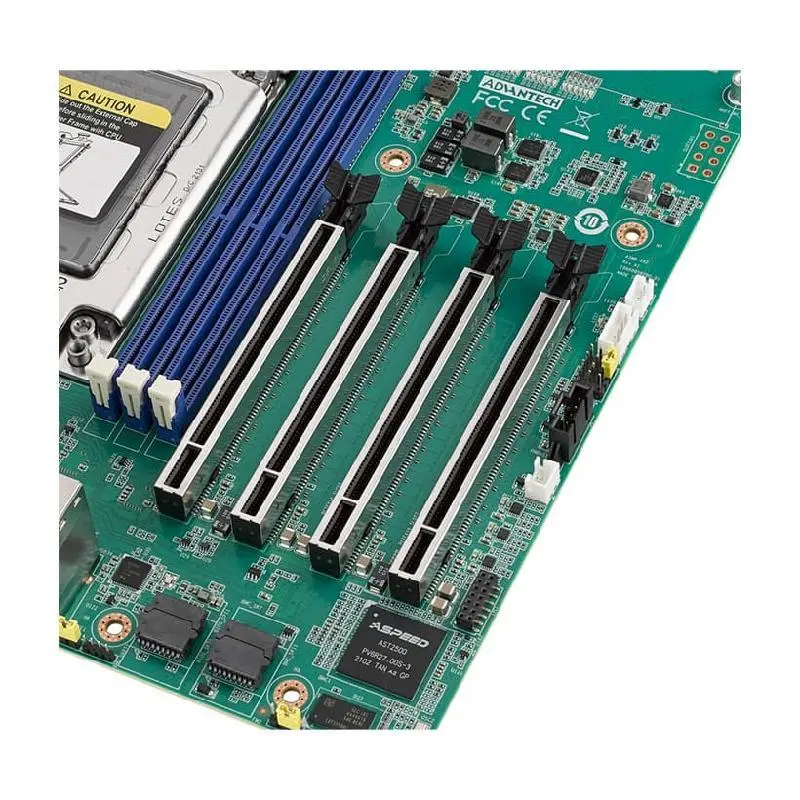

| Expansion | PCI Express x 16 | 4 | 4 |
| Ethernet | Controller | 2 x INTEL LAN I226LM, 2 x INTEL LAN X550 | 2 x INTEL LAN I226LM, 2 x INTEL LAN X550 |
| Ethernet | Speed | Up to 10GbE | Up to 10GbE |
| Ethernet | Connector | RJ45 x 4 | RJ45 x 4 |
| Watchdog Timer | WatchDog Timer | Yes | Yes |
| Storage | SATA | 8 x SATAIII (Max. Data Transfer Rate 600 MB/s) | 8 x SATAIII (Max. Data Transfer Rate 600 MB/s) |
| I/O | GPIO | 8-bit GPIO | 8-bit GPIO |
| I/O | USB 3.2 | 5 | 5 |
| I/O | USB2.0 | 3 | 3 |
| I/O | COM Port | 1 (1 x RS-232) | 1 (1 x RS-232) |
| I/O | TPM | TPM 2.0 | TPM 2.0 |
| Power | Power Type | ATX | ATX |
| Power | Connector | ATX24P | ATX24P |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Non-Operational Temperature | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing |
| Environment | Vibration Resistance | 3.5 Grm (Non-Operation Mode) | 3.5 Grm (Non-Operation Mode) |
| Physical | Dimension (mm) | 244 x 244 mm | 244 x 244 mm |
| Physical | Weight | 1.9 kg (4.18 lbs) | 1.9 kg (4.18 lbs) |
| Operating System | Microsoft Windows | Yes | Yes |
| Operating System | Linux | Yes | Yes |
| Operating System | SUSIAccess | Yes | Yes |
| Operating System | Ubuntu | V | V |

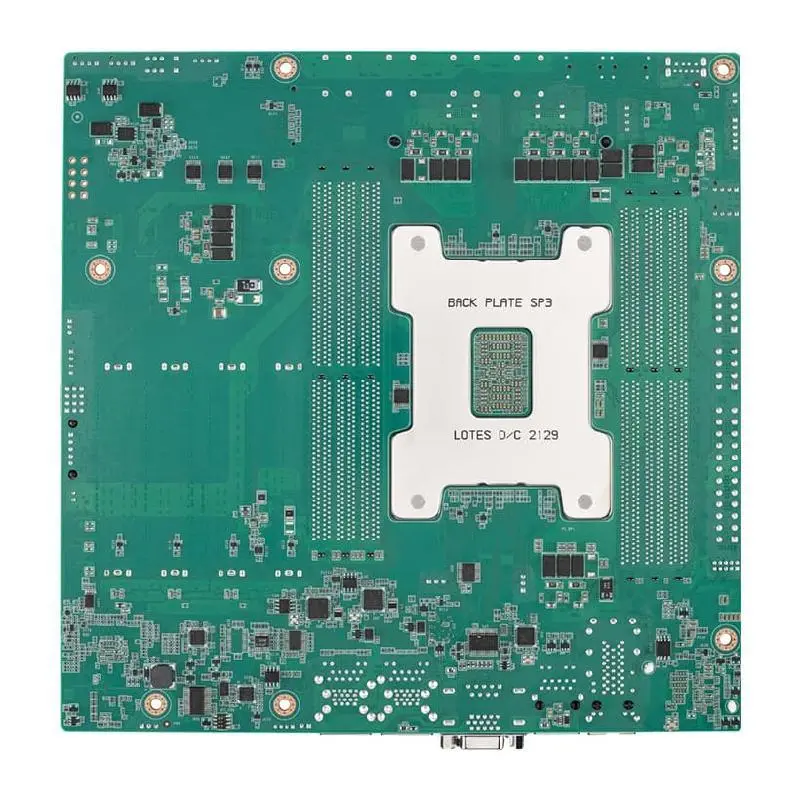

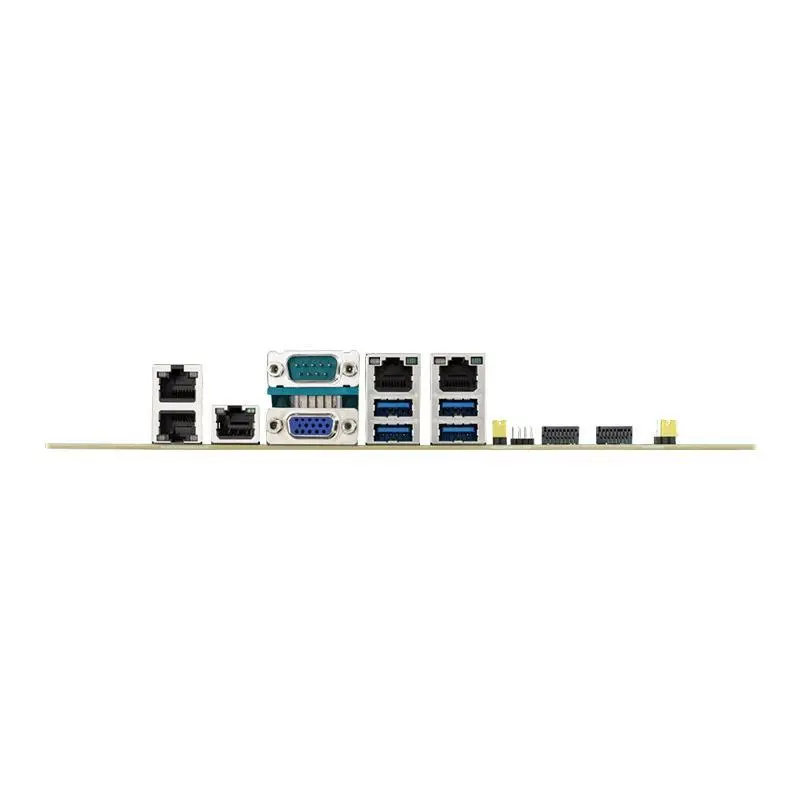

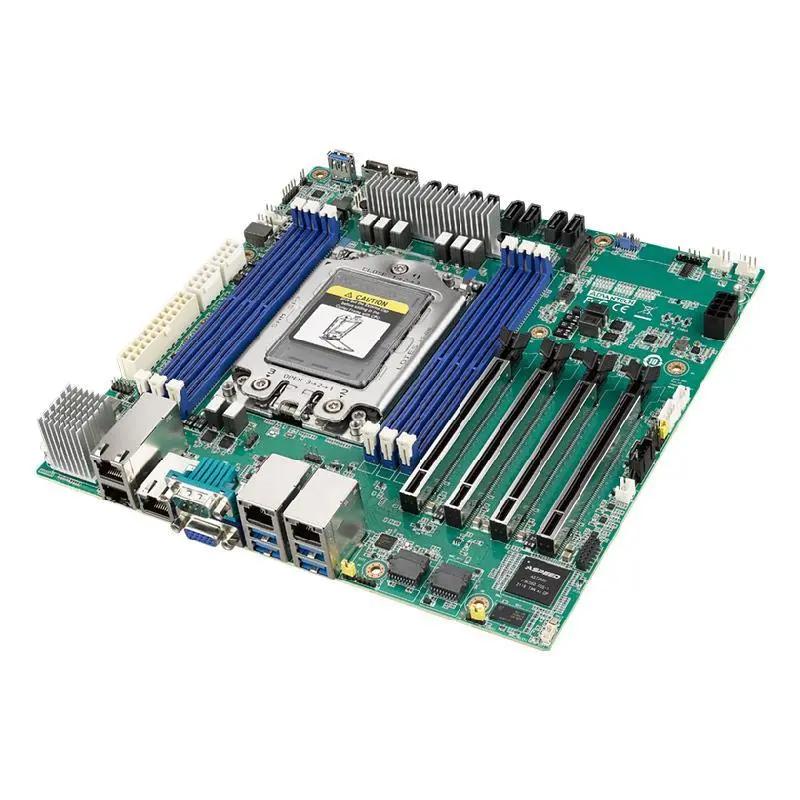

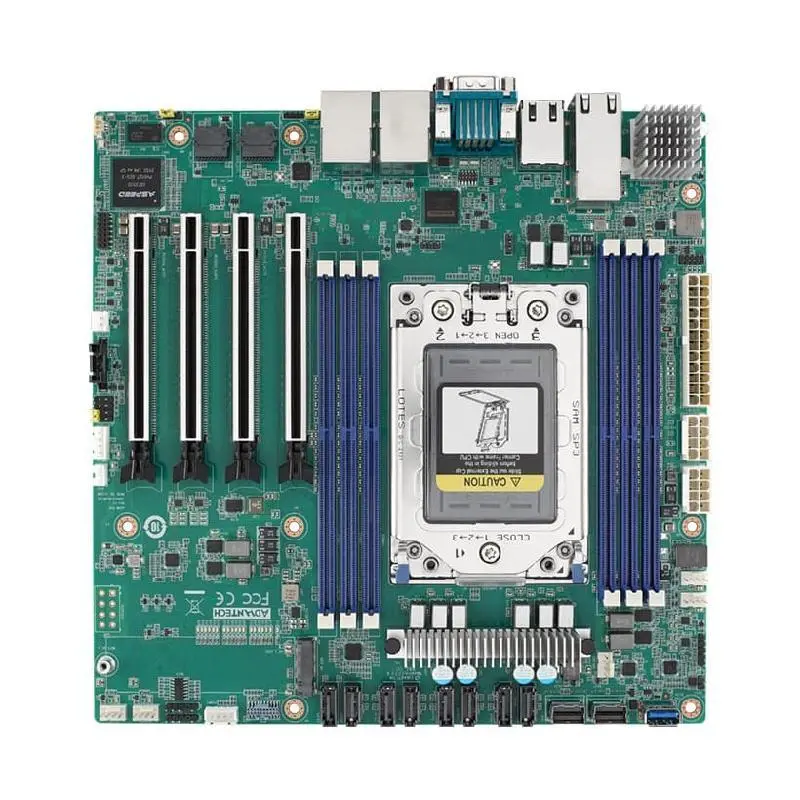

Advantech AIMB-592 Micro-ATX Motherboard AMD EPYC 7003 Series Processor
