| AIMB-288EH-01A1 | AIMB-288EH-02A1 | AIMB-288EH-03A1 | AIMB-288EH-K2A1 | AIMB-288EH-K3A1 | AIMB-288EH-K1A1 | ||
| Processor | CPU | Intel® 12/13/14th Gen Core™ I Processor | Intel® 12/13/14th Gen Core™ I Processor | Intel® 12/13/14th Gen Core™ I Processor | Intel® 12th generation Core™ I processor/ Pentium®/Celeron® | Intel® 12th generation Core™ I processor/ Pentium®/Celeron® | Intel® 12th generation Core™ I processor/ Pentium®/Celeron® |
| Processor | Core Number | Up to 24C | Up to 24C | Up to 24C | Up to 16C | Up to 16C | Up to 16C |
| Processor | Max Speed | Up to 5.8GHz | Up to 5.8GHz | Up to 5.8GHz | Up to 5.0GHz | Up to 5.0GHz | Up to 5.0GHz |
| Processor | L3 Cache | Up to 36MB | Up to 36MB | Up to 36MB | Up to 30MB | Up to 30MB | Up to 30MB |
| Processor | TDP | Up to 65W | Up to 65W | Up to 65W | Up to 65W | Up to 65W | Up to 65W |
| Processor | Chipset | H610E | H610E | H610E | H610E | H610E | H610E |
| Processor | BIOS | AMI EFI 256Mb SPI | AMI EFI 256Mb SPI | AMI EFI 256Mb SPI | AMI EFI 256Mb SPI | AMI EFI 256Mb SPI | AMI EFI 256 Mbit |
| Expansion | M.2 | 1 x M-key for storage (Type: 2280; NVMe supported), 1 x B-key for storage (Type: 2242) | 1 x M-key for storage (Type: 2280; NVMe supported), 1 x B-key for storage (Type: 2242) | 1 x M-key for storage (Type: 2280; NVMe supported), 1 x B-key for storage (Type: 2242) | 1 x M-key for storage (Type: 2280; NVMe supported), 1 x B-key for storage (Type: 2242) | 1 x M-key for storage (Type: 2280; NVMe supported), 1 x B-key for storage (Type: 2242) | 1 x M-key for storage (Type: 2280; NVMe supported), 1 x B-key for storage (Type: 2242) |
| Memory | Technology | Dual Channel DDR5 5600 MT/s | Dual Channel DDR5 5600 MT/s | Dual Channel DDR5 5600 MT/s | DDR5 4800 MHz | DDR5 4800 MHz | DDR5 4800 MHz |
| Memory | Max. Capacity | 96 GB (up to 48GB per DIMM) | 96 GB (up to 48GB per DIMM) | 96 GB (up to 48GB per DIMM) | 32 GB | 32 GB | 32 GB |
| Memory | Socket | 2 x 262 pin DDR5 SO-DIMM | 2 x 262 pin DDR5 SO-DIMM | 2 x 262 pin DDR5 SO-DIMM | 2 x 262 pin DDR5 SO-DIMM | 2 x 262 pin DDR5 SO-DIMM | 2 x 262 pin DDR5 SO-DIMM |
| Display | Multiple Display | Triple | Triple | Triple | Triple | Triple | Triple |
| Graphics | GPU | Quadro® A500 | Quadro® A2000 | Intel Arc A370M | Quadro® A2000 | Intel Arc A370M | Quadro® T1000 |
| Ethernet | Controller | 1 x Intel i219LM/ 1 x i226V | 1 x Intel i219LM/ 1 x i226V | 1 x Intel i219LM/ 1 x i226V | 1 x Intel i219LM/ 1 x i226V | 1 x Intel i219LM/ 1 x i226V | 1 x Intel i219LM/ 1 x i226V |
| Ethernet | Connector | 2 x RJ-45 | 2 x RJ-45 | 2 x RJ-45 | 2 x RJ-45 | 2 x RJ-45 | 2 x RJ-45 |
| Audio | CODEC | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) |
| Audio | Amplifier | Yes (Option, 3.2W) | Yes (Option, 3.2W) | Yes (Option, 3.2W) | Yes (Option, 3.2W) | Yes (Option, 3.2W) | Yes (Option, 3.2W) |
| SATA | Max. Transfer Rate | 6.0 Gb/s | 6.0 Gb/s | 6.0 Gb/s | 6.0 Gb/s | 6.0 Gb/s | 6.0 Gb/s |
| SATA | Channel | 1 | 1 | 1 | 1 | 1 | 1 |
| Rear I/O | DP | 2 | 2 | 2 | 2 | 2 | 2 |
| Rear I/O | Ethernet | 2 | 2 | 2 | 2 | 2 | 2 |
| Rear I/O | USB | 4, USB 3.2 Gen1x1 | 4, USB 3.2 Gen1x1 | 4, USB 3.2 Gen1x1 | 4, USB 3.2 Gen1x1 | 4, USB 3.2 Gen1x1 | 4, USB 3.2 Gen1x1 |
| Rear I/O | Audio | 1, Line-out | 1, Line-out | 1, Line-out | 1, Line-out | 1, Line-out | 1, Line-out |
| Rear I/O | Power Connector | 1 x Terminal block | 1 x Terminal block | 1 x Terminal block | 1 x Terminal block | 1 x Terminal block | 1 x Terminal block |
| Internal Connectors | USB | 2, USB 3.2 Gen1x1 | 2, USB 3.2 Gen1x1 | 2, USB 3.2 Gen1x1 | 2, USB 3.2 Gen1x1 | 2, USB 3.2 Gen1x1 | 2, USB 3.2 Gen1x1 |
| Internal Connectors | LVDS/eDP | Only eDP | Only eDP | Only eDP | Only eDP | Only eDP | Only eDP |
| Internal Connectors | Serial | 2 | 2 | 2 | 2 | 2 | 2 |
| Internal Connectors | SATA | 1 | 1 | 1 | 1 | 1 | 1 |
| Watchdog Timer | Output | System reset | System reset | System reset | System reset | System reset | System reset |
| Watchdog Timer | Interval | Programmable 1 ~ 255 (second or minute) | Programmable 1 ~ 255 (second or minute) | Programmable 1 ~ 255 (second or minute) | Programmable 1 ~ 255 (second or minute) | Programmable 1 ~ 255 (second or minute) | Programmable 1 ~ 255 (second or minute) |
| Power Requirement | Input Voltage | 19-24V DC-in | 19-24V DC-in | 19-24V DC-in | 19-24V DC-in | 19-24V DC-in | 19-24V DC-in |
| Power Requirement | Connector Type | 4P Terminal Block | 4P Terminal Block | 4P Terminal Block | 4P Terminal Block | 4P Terminal Block | 4P Terminal Block |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Non-Operational | -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing | -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing | -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing | -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing | -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing | -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing |
| Physical | Dimension (mm) | 170 x 190 mm (without heat sink) | 170 x 190 mm (without heat sink) | 170 x 190 mm (without heat sink) | 170 x 190 mm (without heat sink) | 170 x 190 mm (without heat sink) | 170 x 190 mm (without heat sink) |
| Operating System | Microsoft Windows | Windows 10 Enterprise 64 bit | Windows 10 Enterprise 64 bit | Windows 10 Enterprise 64 bit | Windows 10 Enterprise 64 bit | Windows 10 Enterprise 64 bit | Windows 10 |

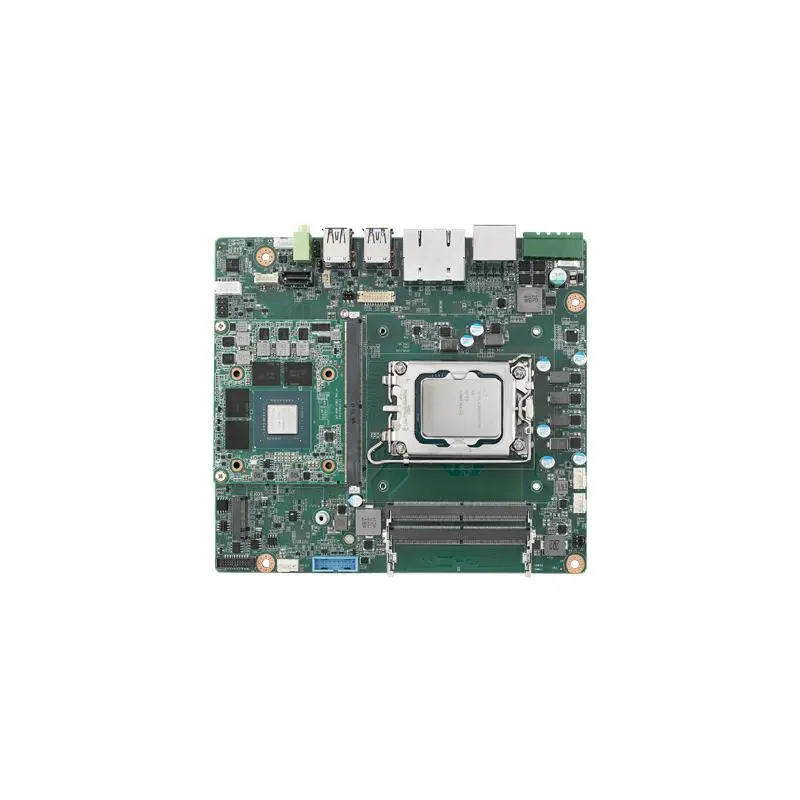

Advantech AIMB-288E THIN AI Motherboard 12th Gen Intel® Core™ Processor (Alder Lake), MXM GPU integration
