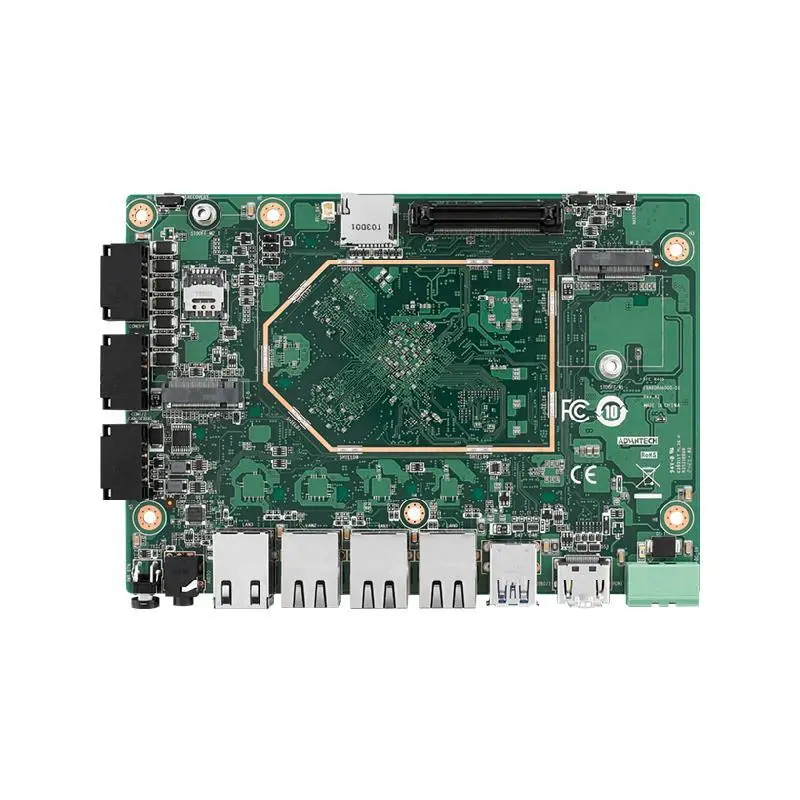

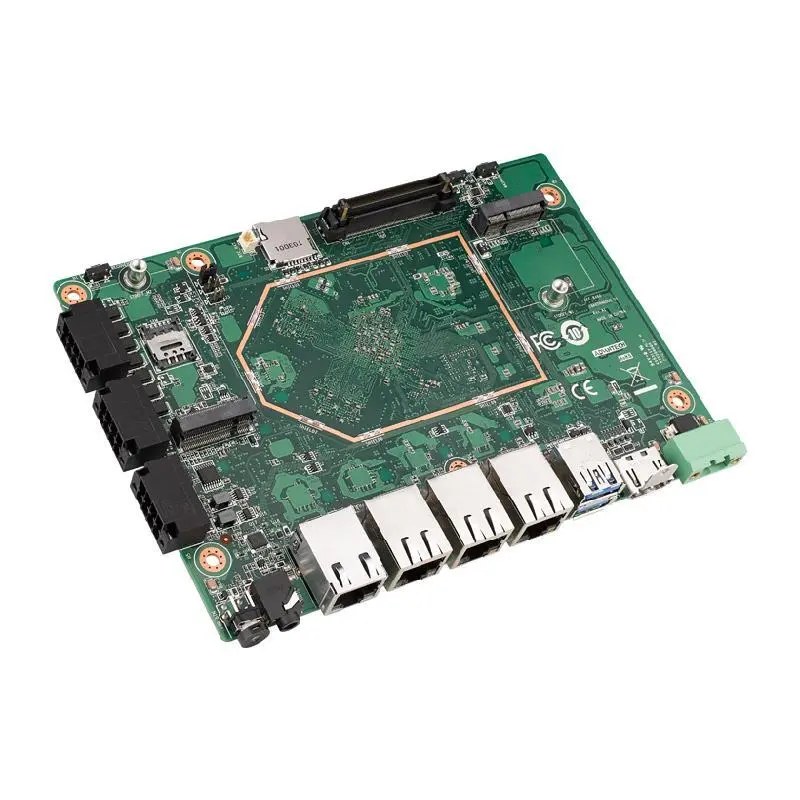

Advantech AFE-R460 Rockchip RK3588 Cortex®-A76 and A55 4'' SBC

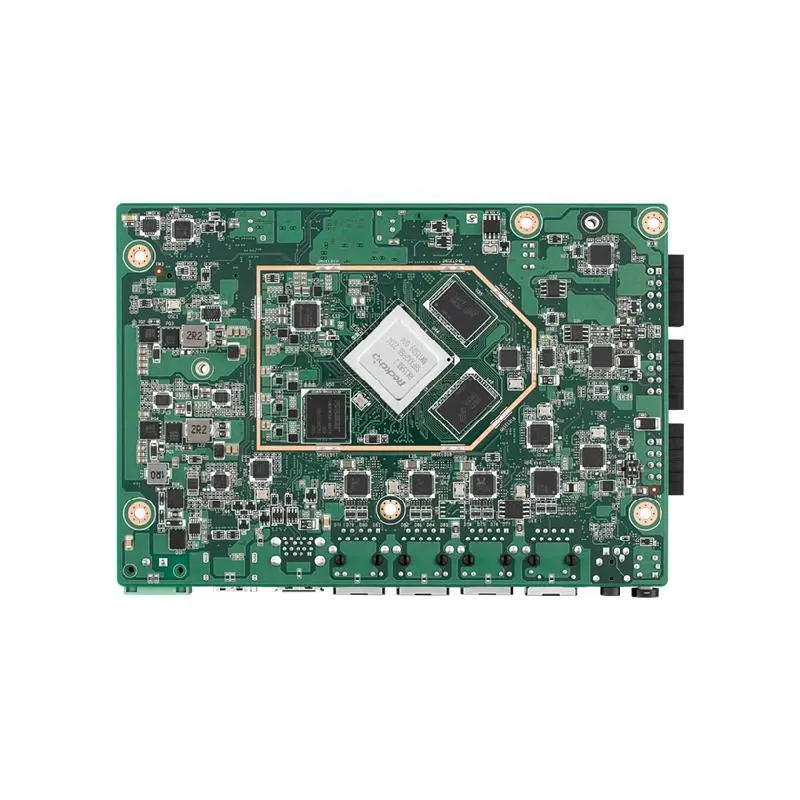

Rockchip RK3588 Arm Quad Cortex-A76 2.4GHz and Quad Cortex-A55 1.8 GHz

Built-in NPU with processing performance of up to 6 TOPS

Onboard 4/8GB LPDDR4 memory and 32/64GB eMMC

Supports 8K @ 60 fps H.265/VP9 video decoding and 8K @ 30 fps H.265/H.264 video encoding

Supports 2 x PCIE3.0 1lane, 4 x MIPI-CSI, UART, 2 x I2C, 1 x SPI, 1 x USB by 120pins B2B Connetor

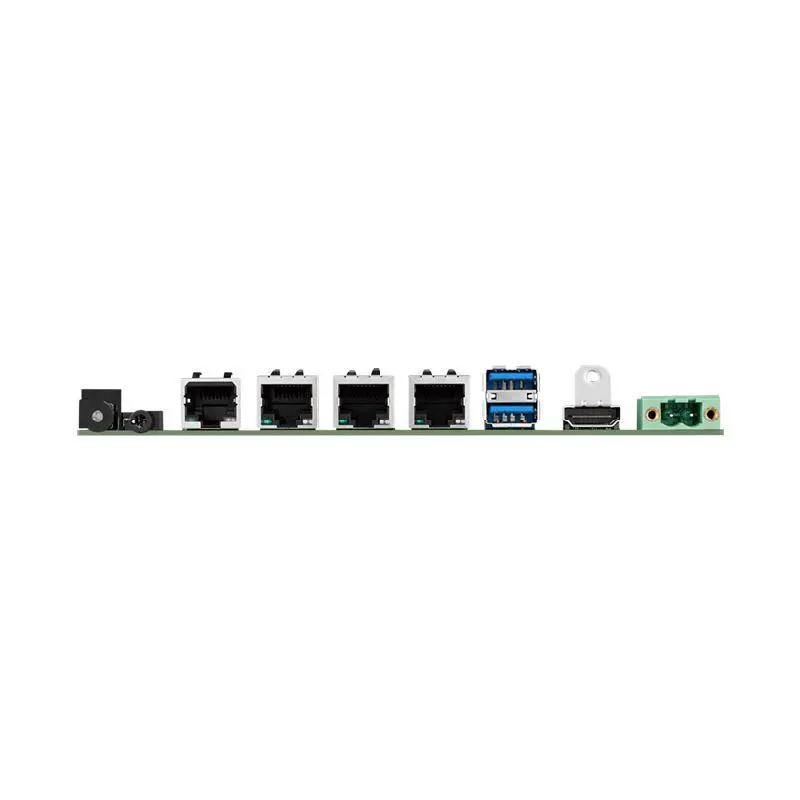

Provides 1 x 2.5GbE, 3 x GbE, 2 x USB3.0, 2 x CAN FD, 2 x RS-232/485, 2 x RS-485, 1 x HDMI2.0, 1 x Line out/Mic in

12-24V DC In, Contack 8KV, air 15KV ESD Protection

Provides a M.2 E Key with PCIE 2.1, USB 2.0 signal and a M.2 B Key with PCIE 2.1/SATA, USB 2.0 signal

Supports Linux Debian12 and Android14
