| AIR-030-B90A1 | AIR-030-S30A1 | ||
| Processor | CPU | NVIDIA Arm® Cortex A78AE v8.2 | NVIDIA Arm® Cortex A78AE v8.2 |
| Processor | Core Number | 8 | 12 |
| Processor | Memory | 32 GB | 64 GB |
| Processor | Flash | 64GB eMMC | 64GB eMMC |
| Processor | GPU | 1792 NVIDIA® CUDA® cores and 56 Tensor cores | 2048 NVIDIA® CUDA® cores and 64 Tensor cores |
| Processor | AI Performance Reference | Up to 200 TOPs (INT8) | Up to 275 Sparse TOPS (INT8) |
| Processor | TDP | 15 ~ 40W | 15 ~ 60W |
| Ethernet | Connector | RJ45 x 3 | RJ45 x 3 |
| Ethernet | Controller | 3 x Intel I225-LM | 3 x Intel I225-LM |
| Ethernet | Speed | Up to 2.5GbE | Up to 2.5GbE |
| Display | HDMI | 1 | 1 |
| Display | Max. Resolution | 3840 x 2160 @ 60Hz | 3840 x 2160 @ 60Hz |
| I/O | USB | 4 x USB 3.2 Type A, 1 x USB 3.2 Type C, 2 x internal USB 2.0 for security dongle | 4 x USB 3.2 Type A, 1 x USB 3.2 Type C, 2 x internal USB 2.0 for security dongle |
| I/O | COM Port | 4 (4 x RS232/ 422/ 485) | 4 (4 x RS232/ 422/ 485) |
| I/O | Digital I/O | 16 bit DIO | 16 bit DIO |
| I/O | Audio | 1x Line-out | 1x Line-out |
| I/O | OTG USB | 1 x Micro USB (for system recovery only) | 1 x Micro USB (for system recovery only) |
| Internal Connectors | Camera Input | 2 x 2-LANE MIPI-CS (internal) | 2 x 2-LANE MIPI-CS (internal) |
| I/O | CANBus | 2 | 2 |
| Expansion | M.2 | 1 x B key (Type: 2280, 3042) + 1 x E Key (Type: 2230) | 1 x B key (Type: 2280, 3042) + 1 x E Key (Type: 2230) |
| Expansion | SD Socket | 1 SD card slot | 1 SD card slot |
| Others | TPM | TPM 2.0 built in | TPM 2.0 built in |
| Power | Input Voltage | 9 ~ 36 VDC | 9 ~ 36 VDC |
| Power | Power Type | AT/ ATX | AT/ ATX |
| Expansion | PCI Express x 16 | Optional | Optional |
| Mechanical | Weight | 3.63 kg | 3.63 kg |
| Environment | Operating Temperature | -10 ~ 60 °C with 0.7 m/s air flow | -10 ~ 60 °C with 0.7 m/s air flow |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) | 95% @ 40° C (non-condensing) |
| Environment | Vibration | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Mechanical | Dimensions | 200 x 220 x 74 mm | 200 x 220 x 74 mm |
| Operating System | Linux | Ubuntu 20.04 | Ubuntu 20.04 |
| Operating System | SUSI | Yes | Yes |
| Certification | Safety Certifications | UL, CB | UL, CB |
| Certifications | EMC | CE, FCC Class B, CCC, BSMI | CE, FCC Class B, CCC, BSMI |

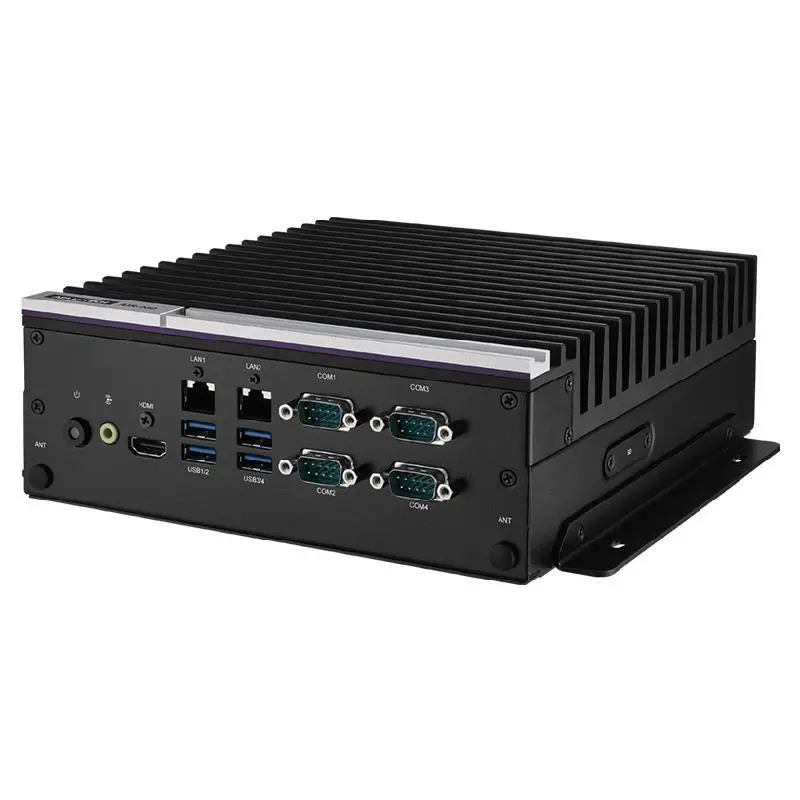

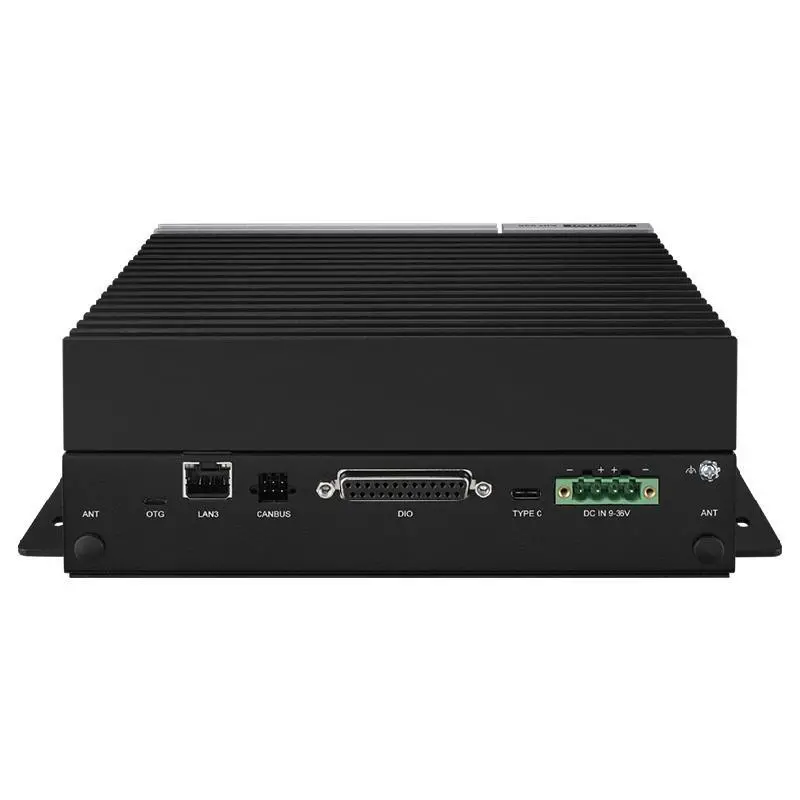

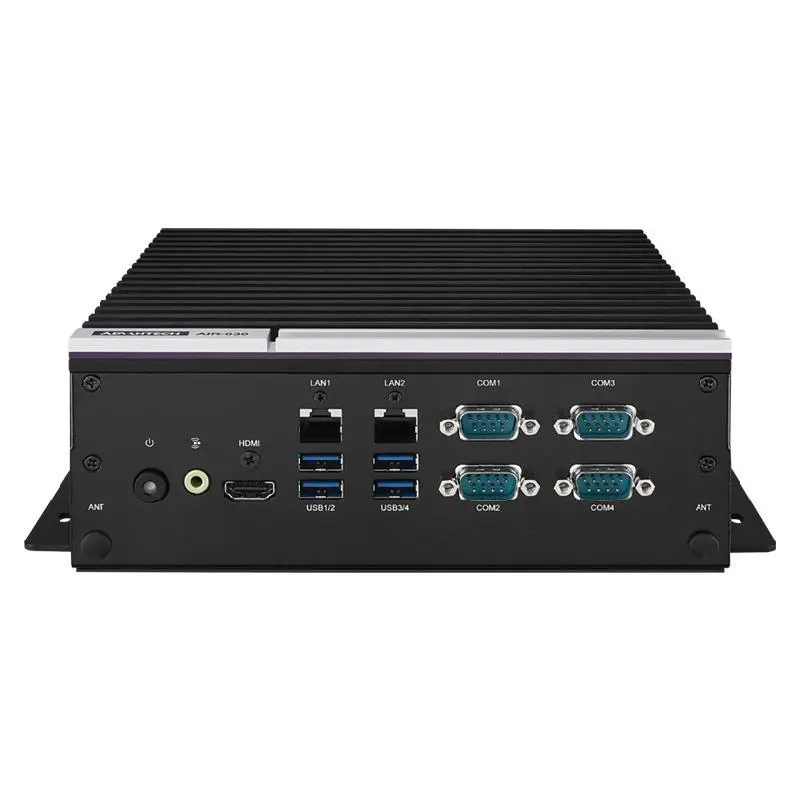

Advantech AIR-030 AI Inference System Based on NVIDIA® Jetson AGX Orin™
