| AIR-101-S62A1 | ||
| Processor | CPU | Intel Atom E3940 Quad Core Soc |
| Processor | Frequency | 1.6 GHz, turbo burst 1.8GHz |
| Memory | Technology | DDR3L 1866 MHz |
| Memory | Default (Built in) | 1 x 204-pin SO-DIMM DDR3L 8GB memory (-40 ~ 85 °C) built-in |
| AI Engine | VPU | Two Intel® Movidius™ Myriad™ X MA2485 (1 x VEGA-330-02A1 Built-in) |
| AI Engine | Software | Advantech Edge AI Suite, OpenVINO R2 2019 or latest |
| Graphics | Chipset | Intel HD Graphics 500, CPU integrated |
| Graphics | HDMI | HDMI1 : 3840 x 2160 @ 30Hz; HDMI2 : 3840 x 2160 @ 30Hz |
| Ethernet | LAN1 | 10/100/1000 Mbps Intel i210 GbE, support Wake On Lan |
| Ethernet | LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
| Audio | Interface | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| I/O Interface | Serial Port | 2 x RS-232/422/485 with auto flow control, COM2 with 5V/12V power supply |
| I/O Interface | USB | 4 ports (USB3.0) |
| I/O Interface | GPIO | 8-bit programmable DIO (optional) |
| Expansion | M.2 | 1 x M.2 2230 E key for WIFI or VEGA-320 module |
| Storage | SSD | 1 x SATA Slim 64G SSD (-40 ~ 85 °C) built-in |
| Operating System | Microsoft Windows | Windows 10 Enterprise 64 bit |
| Operating System | Linux | Ubuntu 16.04 LTS (64 bit) |
| Power Requirement | Input Voltage | 12 ~ 28 VDC |
| Power Requirement | Power Adapter | AC to DC 24V/2.5A 60W (Optional) |
| Power Consumption | Typical | 8.7W |
| Power Consumption | Max. | 19.2W |
| Mechanical | Construction | Aluminum housing |
| Mechanical | Mounting | DIN-rail/Wall Mount |
| Mechanical | Dimensions | 53.5 x 158 x 114 mm |
| Environment | Operating Temperature | With built-in VEGA-330: -20 ~ 55 °C, with 0.7m/s air flow; With built-in VEGA-330 and optional VEGA-320: -20 ~ 50 °C, with 0.7m/s air flow |
| Environment | EMC | CE/FCC Class B, CCC, BSMI |
| Environment | Safety Certifications | CB, UL, CCC, BSMI |

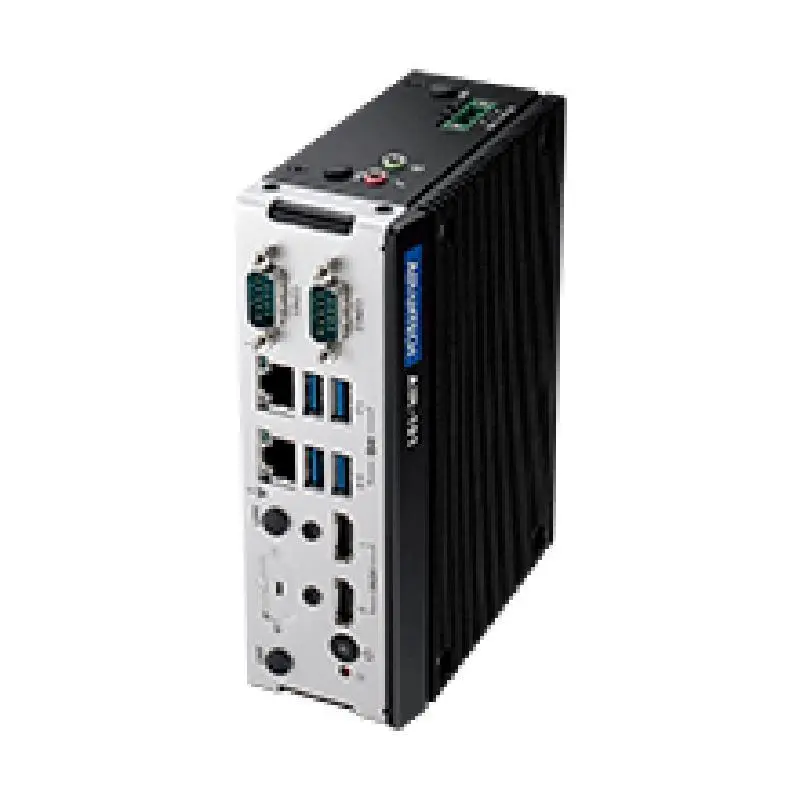

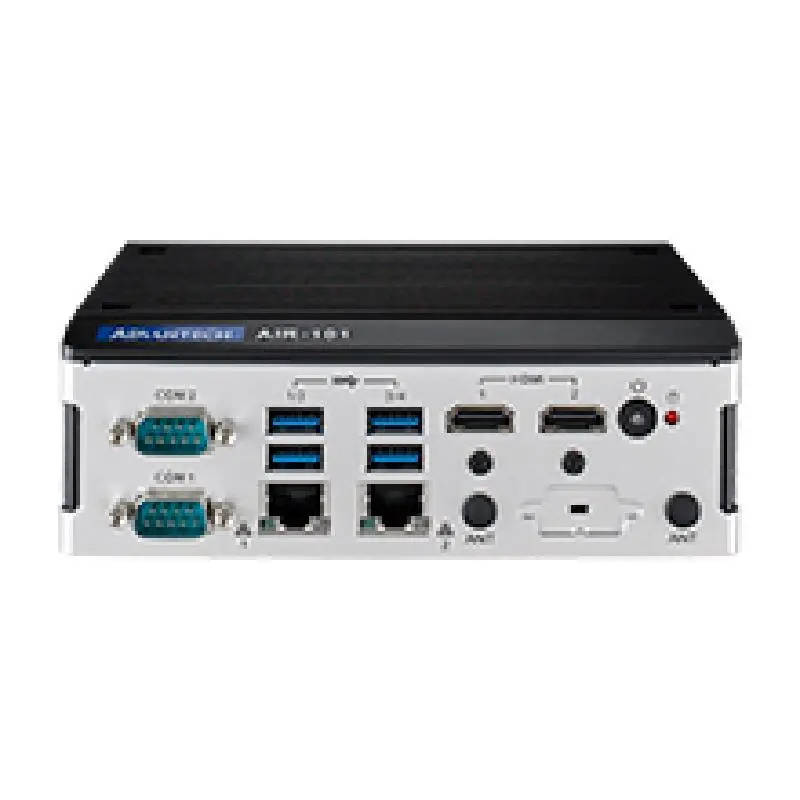

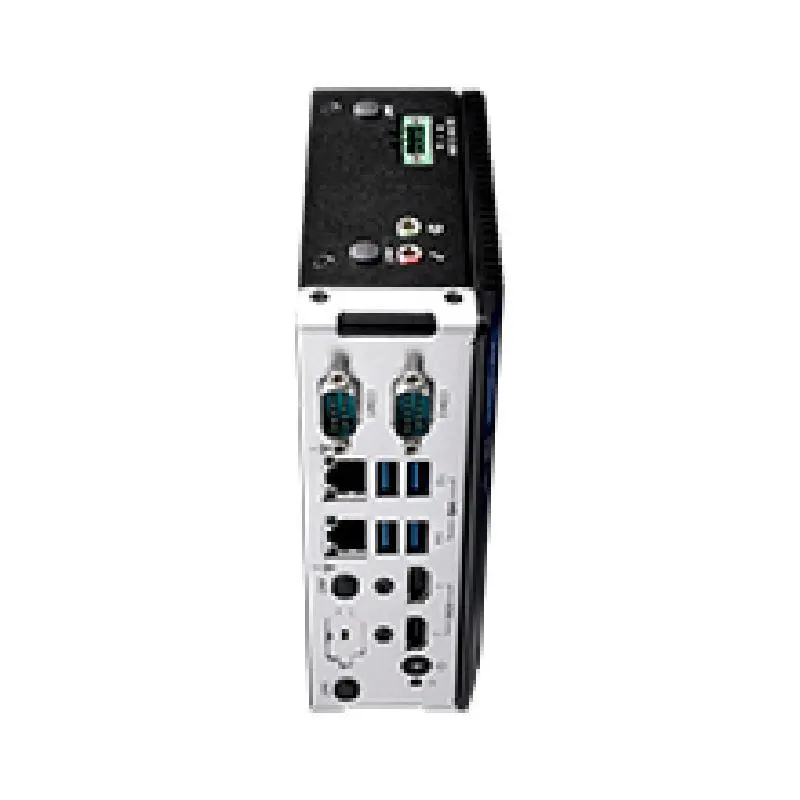

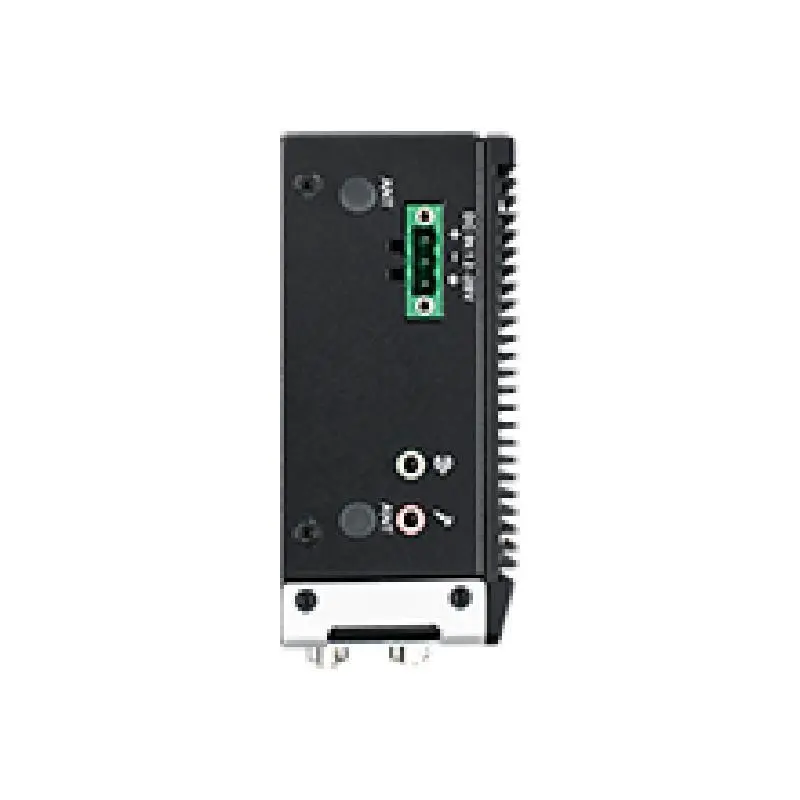

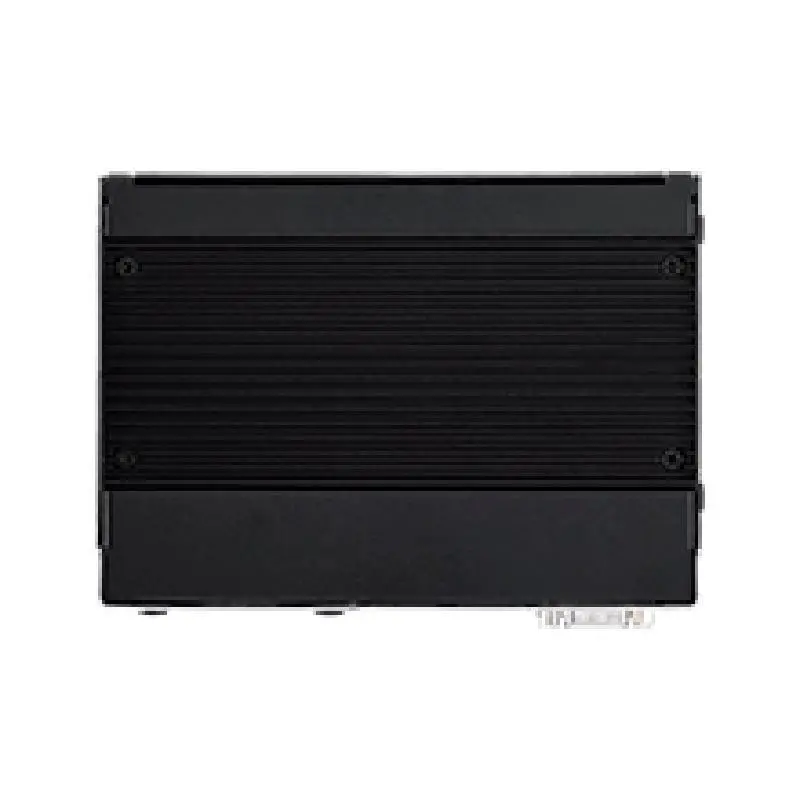

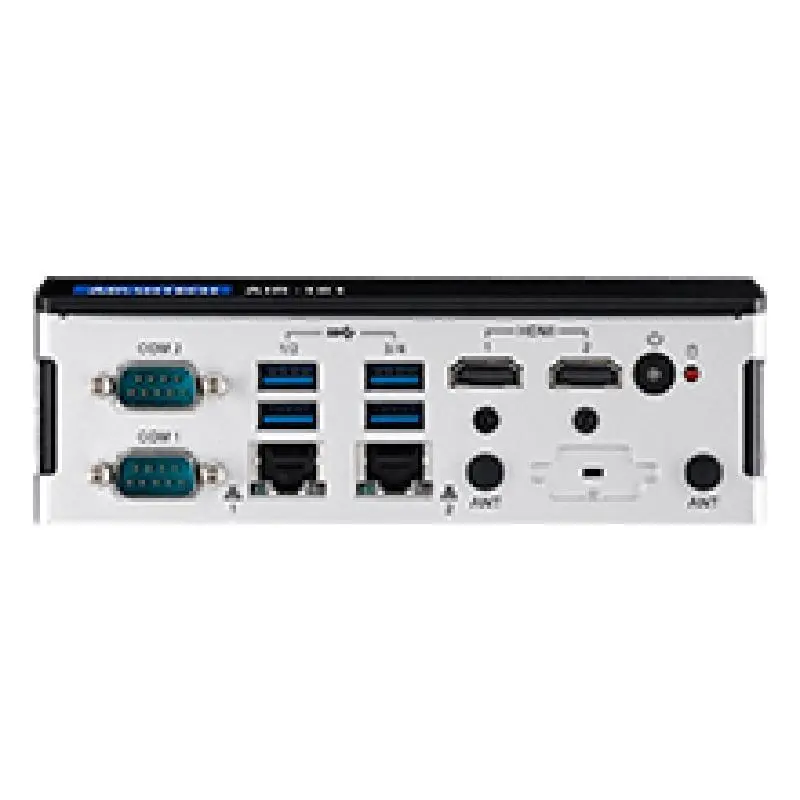

Advantech AIR-101 Edge AI Inference System with Intel Atom® E3940 QC SoC and Two Intel MA2485 VPUs
