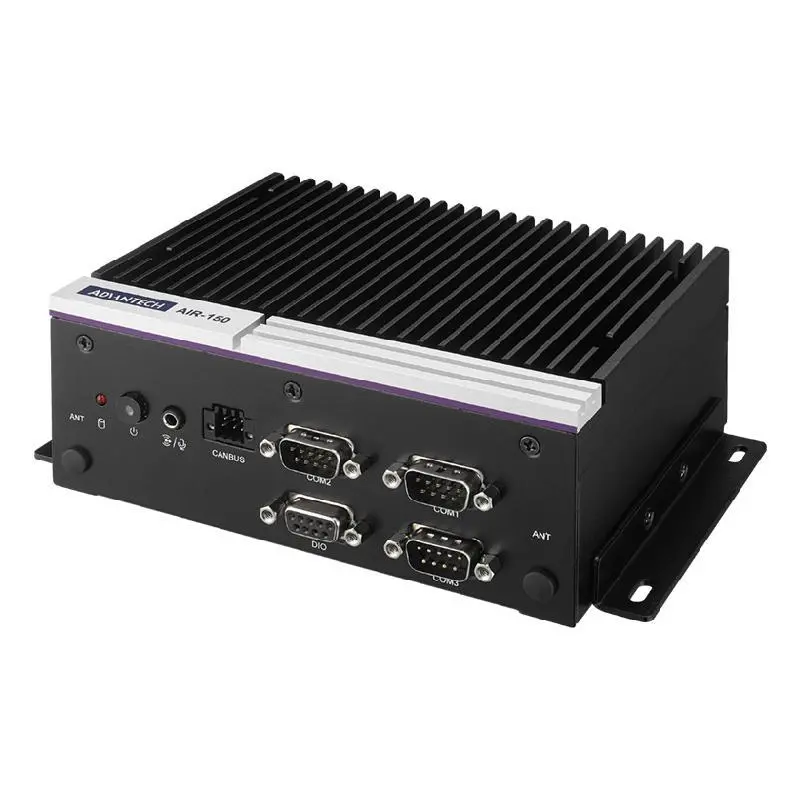

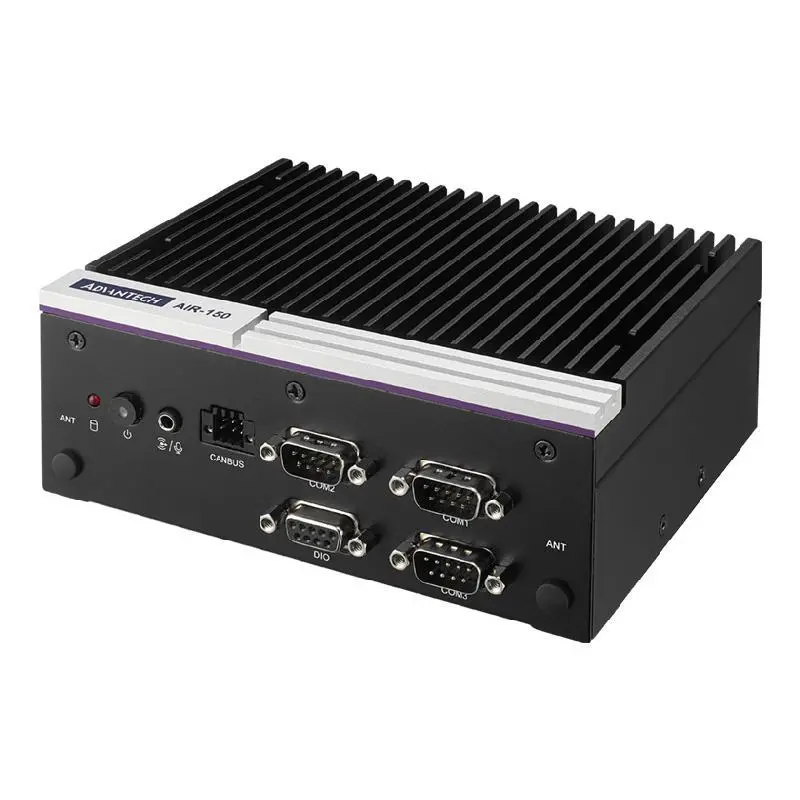

Advantech AIR-150 26 TOPS AI Inference System Intel 13th Gen. with Hailo-8 AI

    Intel 13th gen. Core i3/i5 up to 14 Watt with 10 Cores

    Empowered by Hailo-8 M.2 AI module up to 26 TOPS

    Compact Fanless 156 x 112 x 60mm dimensions

    Dual 4K lockable HDMI 2.0b, 4096x2160 resolution

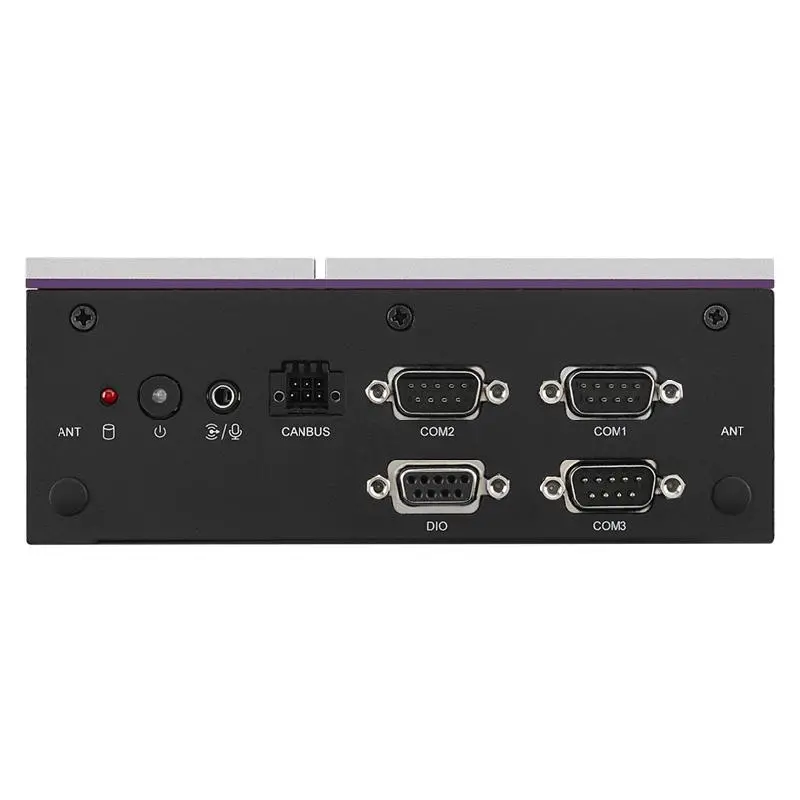

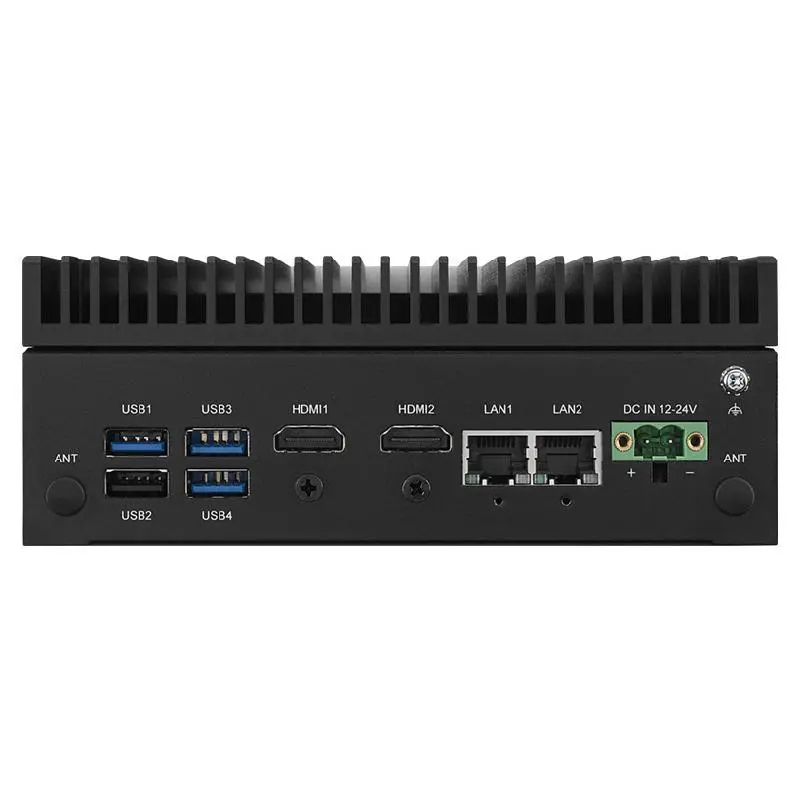

    Vertical I/O: 3x COM/1x DIO/2x CANBus/2x LAN/4x USB

    Rich AI toolkits for runtime integration and model deployment

    Flexible expansion with 3x M.2: M key 2280, E key 2230, B key 3042

    -20~60°C wide temperature and 12-24V wide voltage support

AIR-150-S24A1 AIR-150-S44A1
Processor CPU i3-1315UE i5-1345UE
Memory Technology Dual channel DDR5 5200 MHz 262 pin SO-DIMM Dual channel DDR5 5200 MHz 262 pin SO-DIMM
Memory Max. Capacity 64 GB 64 GB
Graphics Chipset Intel® UHD Graphics for 13th Gen Intel® Processors Intel® Iris® Xe Graphics eligible
Graphics Graphic Engine Direct X 12.1, OpenGL 4.6HW Encode: H.265/HEVC, H.264/AVC, VP9, SCCHW Decode: H.265/HEVC, H.264/AVC, VP9, SCC Direct X 12.1, OpenGL 4.6HW Encode: H.265/HEVC, H.264/AVC, VP9, SCCHW Decode: H.265/HEVC, H.264/AVC, VP9, SCC
Graphics HDMI 4096 x 2160 @ 60Hz 4096 x 2160 @ 60Hz
Graphics Dual Display Yes, HDMI + HDMI, dual display support 4K2K resolution Yes, HDMI + HDMI, dual display support 4K2K resolution
I/O Interface LAN (RJ-45) 2 2
I/O Interface USB2.0 1 1
I/O Interface USB3.0 3 3
I/O Interface Serial 2 x RS-232/422/485, 1x RS-485 (COM3) 2 x RS-232/422/485, 1x RS-485 (COM3)
I/O Digital I/O 1 (8-bit general purpose input/ output) 1 (8-bit general purpose input/ output)
Expansion M.2 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280) 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280)
Others TPM Infineon SLB9665XQ 2.0 Infineon SLB9665XQ 2.0
Power Power Type AT/ATX AT/ATX
Power Input Voltage 12 ~ 24 VDC 12 ~ 24 VDC
Physical Characteristics Dimensions (W x D x H) 156 x 60 x 112 mm 156 x 60 x 112 mm
Physical Characteristics Mounting Wall mount Wall mount
Environment Operational Temperature -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow
Software Support Microsoft Windows Windows 10 IoT 64-bit Windows 10 IoT 64-bit
Software Support Linux Ubuntu 22.04 Ubuntu 22.04
Certification EMC CE, FCC Class B, BSMI CE, FCC Class B, BSMI
Certification Safety Certifications UL, CB UL, CB
