| EI-53-S7A1U | EI-53-S5A1U | EI-53-S0A1U | ||
| Processor | CPU | Intel® Core™ i7-1365UE | Intel® Core™ i5-1345UE | Celeron U300E |
| Memory | Technology | Dual channel DDR5 5200 MHz 262 pin SO-DIMM | Dual channel DDR5 5200 MHz 262 pin SO-DIMM | Dual channel DDR5 5200 MHz 262 pin SO-DIMM |
| Memory | Capacity | Max. capacity 64GB | Max. capacity 64GB | Max. capacity 64GB |
| Graphics | Chipset | Intel® Iris® Xe Graphics eligible | Intel® Iris® Xe Graphics eligible | Intel® UHD Graphics for 13th Gen Intel® Processors |
| Graphics | Graphic Engine | Direct X 12.1, OpenGL 4.6HW Encode: H.265/HEVC, H.264/AVC, VP9, SCCHW Decode: H.265/HEVC, H.264/AVC, VP9, SCC | Direct X 12.1, OpenGL 4.6HW Encode: H.265/HEVC, H.264/AVC, VP9, SCCHW Decode: H.265/HEVC, H.264/AVC, VP9, SCC | Direct X 12.1, OpenGL 4.6HW Encode: H.265/HEVC, H.264/AVC, VP9, SCCHW Decode: H.265/HEVC, H.264/AVC, VP9, SCC |
| Graphics | HDMI | 4096 x 2160 @ 60Hz | 4096 x 2160 @ 60Hz | 4096 x 2160 @ 60Hz |
| Graphics | Dual Display | Yes, HDMI + HDMI, dual display support 4K2K resolution | Yes, HDMI + HDMI, dual display support 4K2K resolution | Yes, HDMI + HDMI, dual display support 4K2K resolution |
| Storage | SSD | 2.5" SSD, SATA | 2.5" SSD, SATA | 2.5" SSD, SATA |
| I/O Interface | LAN (RJ-45) | 2 | 2 | 2 |
| I/O Interface | USB2.0 | 3 | 3 | 3 |
| I/O Interface | USB3.0 | 3 | 3 | 3 |
| I/O Interface | Serial | 2 x RS-232/422/485, 1x RS-485 (COM3) | 2 x RS-232/422/485, 1x RS-485 (COM3) | 2 x RS-232/422/485, 1x RS-485 (COM3) |
| I/O | Digital I/O | 1 (8-bit general purpose input/ output) | 1 (8-bit general purpose input/ output) | 1 (8-bit general purpose input/ output) |
| Expansion | M.2 | 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280) | 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280) | 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280) |
| Others | TPM | TPM 2.0 SLB9670XQ2.0 | TPM 2.0 SLB9670XQ2.0 | TPM 2.0 SLB9670XQ2.0 |
| Power | Input Voltage | 12 ~ 24 VDC | 12 ~ 24 VDC | 12 ~ 24 VDC |
| Power | Power Type | AT/ ATX | AT/ ATX | AT/ ATX |
| Power Consumption | Typical | 18W | 18W | 18W |
| Power Consumption | Max. | 41.72W | 41.72W | 41.72W |
| Physical Characteristics | Mounting | Wall mount | Wall mount | Wall mount |
| Physical Characteristics | Dimensions (W x D x H) | 156 x 60 x 112 mm | 156 x 60 x 112 mm | 156 x 60 x 112 mm |
| Environment | Operating Temperature | -20 ~ 60 °C, with 0.7m/s air flow | -20 ~ 60 °C, with 0.7m/s air flow | -20 ~ 60 °C, with 0.7m/s air flow |
| Software Support | Microsoft Windows | Windows 10 IoT 64-bit | Windows 10 IoT 64-bit | Windows 10 IoT 64-bit |
| Operating System | Ubuntu | V | V | V |
| Software Support | Linux | Ubuntu 22.04 | Ubuntu 22.04 | Ubuntu 22.04 |
| Certifications | EMC | CE, FCC Class B, CCC, BSMI | CE, FCC Class B, CCC, BSMI | CE, FCC Class B, CCC, BSMI |
| Certifications | Safety | UL, CB, CCC | UL, CB, CCC | UL, CB, CCC |

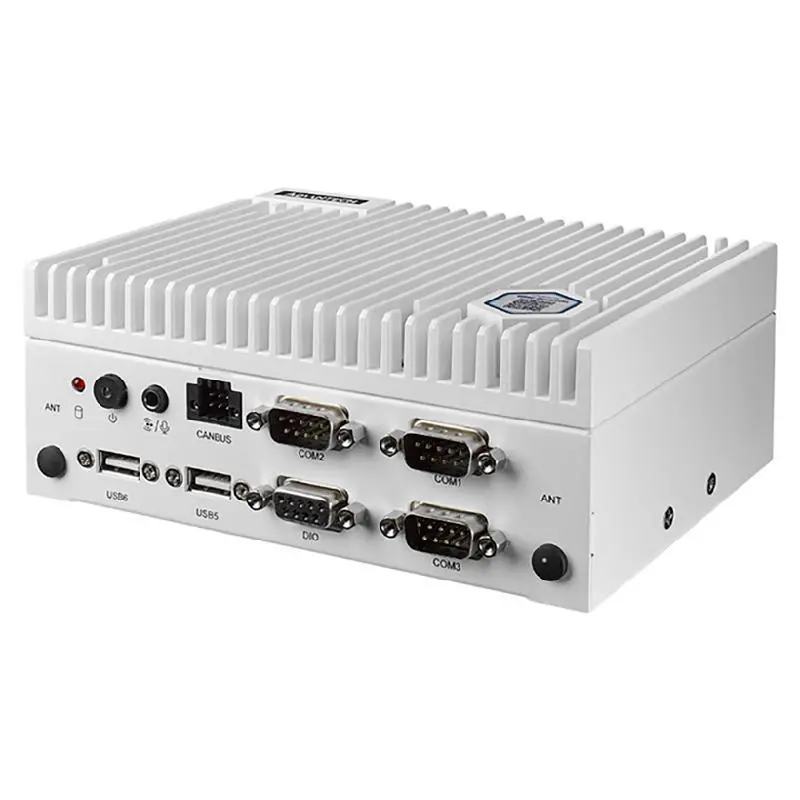

Advantech EI-53 Intel 13th generation Compact Edge Intelligent System
