| EPC-T22865A-00Y02 | EPC-T22867A-00Y12 | EPC-T22863A-00Y02 | ||
| Thermal Solution | Thermal Solution | 2x chassis fan (4cm/23.8CFM each) | 2x chassis fan (4cm/23.8CFM each) | 2x chassis fan (4cm/23.8CFM each) |
| Processor | Compatible Motherboard | AIMB-286 | AIMB-286 | AIMB-286 |
| Processor | CPU | Intel® 8th Gen. Core i Processor i5-8500T | Intel® 8th Gen. Core i Processor i7-8700 | Intel® 8th Gen Core™ i processor/Pentium/Celeron (LGA1151) |
| Processor | BIOS | AMI EFI 128Mbit | AMI EFI 128Mbit | AMI EFI 128Mbit |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM |
| Memory | Technology | DDR4 2133MHz SO-DIMM | DDR4 2133MHz SO-DIMM | DDR4 2133MHz SO-DIMM |
| Memory | Max. Capacity | 32GB (up to 16GB per SO-DIMM) | 32GB (up to 16GB per SO-DIMM) | 32GB (up to 16GB per SO-DIMM) |
| Storage | M.2 | B key for SSD (Type: 2242, 3042mm) | B key for SSD (Type: 2242, 3042mm) | B key for SSD (Type: 2242, 3042mm) |
| Storage | 2.5" Drive Bay | 1 (support 2.5" HDD/SSD, max 9.5 mm height) | 1 (support 2.5" HDD/SSD, max 9.5 mm height) | 1 (support 2.5" HDD/SSD, max 9.5 mm height) |
| Graphics | Chipset | Intel HD Graphics | Intel HD Graphics | Intel HD Graphics |
| Ethernet | Controller | LAN1/Lan2: Realtek RTL8111H; LAN3: Intel i210AT | LAN1/Lan2: Realtek RTL8111H; LAN3: Intel i210AT | LAN1/Lan2: Realtek RTL8111H; LAN3: Intel i210AT |
| Ethernet | Connector | 3 (RJ-45) | 3 (RJ-45) | 3 (RJ-45) |
| Ethernet | Interface | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Audio | Chipset | Realtek ALC892, High Definition Audio (HD) | Realtek ALC892, High Definition Audio (HD) | Realtek ALC892, High Definition Audio (HD) |
| Expansion | M.2 | 1 x B key for SSD and 3G/4G (Type: 2242/3042mm); 1 x E key for wireless (Type: 2230mm) | 1 x B key for SSD and 3G/4G (Type: 2242/3042mm); 1 x E key for wireless (Type: 2230mm) | 1 x B key for SSD and 3G/4G (Type: 2242/3042mm); 1 x E key for wireless (Type: 2230mm) |
| Front I/O Interface | Antenna | 2 (reserved ) | 2 (reserved ) | 2 (reserved ) |
| Front I/O Interface | Audio | 2 (reserved, Line-Out, Mic-In) | 2 (reserved, Line-Out, Mic-In) | 2 (reserved, Line-Out, Mic-In) |
| Front I/O Interface | COM | 4 (3x RS-232, 1 x RS-232/422/485 by Bom optional, default RS-232) | 4 (3x RS-232, 1 x RS-232/422/485 by Bom optional, default RS-232) | 4 (3x RS-232, 1 x RS-232/422/485 by Bom optional, default RS-232) |
| Front I/O Interface | USB | 4 (USB2.0) | 4 (USB2.0) | 4 (USB2.0) |
| Rear I/O Interface | DP++ | 1 | 1 | 1 |
| Rear I/O Interface | HDMI / DisplayPort* | 1/0 | 1/0 | 1/0 |
| Rear I/O Interface | COM | 2 (1x RS-232, supports 5V/12V by jumper selection; 1 x RS-232/422/485 by Bom optional, default RS-232) | 4 (USB3.0) | 2 (1x RS-232, supports 5V/12V by jumper selection; 1 x RS-232/422/485 by Bom optional, default RS-232) |
| Rear I/O Interface | USB | 4 (USB3.0) | 2 (Line-out, Mic-In) | 4 (USB3.0) |
| Rear I/O Interface | Audio | 2 (Line-out, Mic-In) | 2 (reserved ) | 2 (Line-out, Mic-In) |
| Rear I/O Interface | Antenna | 2 (reserved ) | 3 (RJ-45) | 2 (reserved ) |
| Rear I/O Interface | Ethernet | 3 (RJ-45) | 2 (Power LED, HDD LED) | 3 (RJ-45) |
| Rear I/O Interface | Power Input | 1 (DC Jack) | 1 (Power Switch); 1 (Remote Power Jack) | 1 (DC Jack) |
| Miscellaneous | LED Indicators | 2 (Power LED, HDD LED) | 12V DC-in | 2 (Power LED, HDD LED) |
| Miscellaneous | Control | 1 (Power Switch); 1 (Remote Power Jack) | Minimum 114W with i7-8700 | 1 (Power Switch); 1 (Remote Power Jack) |
| Power Requirement | Voltage | 12V DC-in | 10 ~ 95% @ 40° C, non-condensing | 12V DC-in |
| Power Requirement | Power Consumption | Minimum 81.9W with i5-8500T | -20 ~ 60° C (-4 ~ 140° F) | Minimum 81.9W with i5-8500T |
| Environment | Humidity | 10 ~ 95% @ 40° C, non-condensing | 0 ~ 50 °C (HDD SPEC: 0~ 65 °C with 0.7m/s air flow) | 10 ~ 95% @ 40° C, non-condensing |
| Environment | Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) | 3.98kg | -20 ~ 60° C (-4 ~ 140° F) |
| Environment | Operating Temperature | 0 ~ 50 °C (HDD SPEC: 0~ 65 °C with 0.7m/s air flow) | 0.5G (Slim 2.5" HDD) / 3G (2.5" SSD/ M.2 storage) | 0 ~ 50 °C (HDD SPEC: 0~ 65 °C with 0.7m/s air flow) |
| Weight (kg) | Weight (kg) | 3.98kg | 250 x 44.2 x 225 mm (9.84" x 1.74" x 8.85") | 3.98kg |
| Environment | Vibration Resistance | 0.5G (Slim 2.5" HDD) / 3G (2.5" SSD/ M.2 storage) | Optional | 0.5G (Slim 2.5" HDD) / 3G (2.5" SSD/ M.2 storage) |
| Dimensions | Dimensions (W x H x D) | 250 x 44.2 x 225 mm (9.84" x 1.74" x 8.85") | 250 x 44.2 x 225 mm (9.84" x 1.74" x 8.85") | |
| Embedded OS | OS Support | Optional | Optional | |

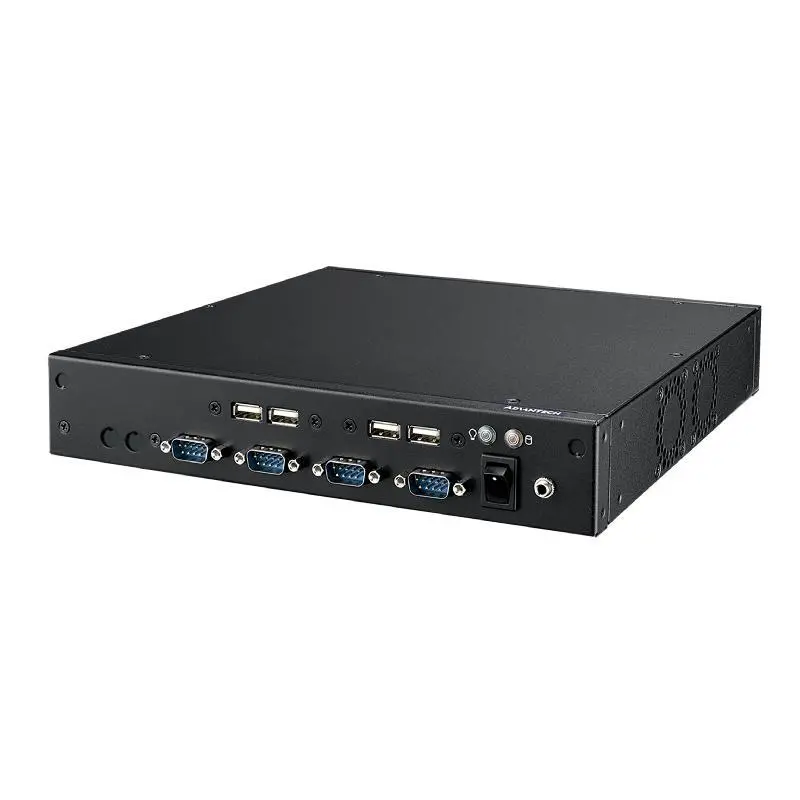

Advantech EPC-T2286 THIN 1U embedded PC - Intel® 8th Generation Desktop Core™ i3/i5/i7
