| EPC-T22855A-00Y0E | EPC-T22857A-00Y1E | EPC-T2285CA-00Y1E | ||
| Thermal Solution | Thermal Solution | 2x chassis fan (4cm/23.8CFM each) | 2x chassis fan (4cm/23.8CFM each) | 2x chassis fan (4cm/23.8CFM each) |
| Processor | Compatible Motherboard | AIMB-285G2-00A1E | AIMB-285G2-00A1E | AIMB-285G2-00A1E |
| Processor | CPU | Intel® Core™ i5-6500TE Processor | Intel® Core™ i7-6700 Processor | Intel® Celeron® G3900 Processor |
| Processor | BIOS | AMI EFI 128Mbit | AMI EFI 128Mbit | AMI EFI 128Mbit |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM |
| Memory | Technology | DDR4 2133MHz SO-DIMM | DDR4 2133MHz SO-DIMM | DDR4 2133MHz SO-DIMM |
| Memory | Max. Capacity | 32GB (up to 16GB per SO-DIMM) | 32GB (up to 16GB per SO-DIMM) | 16GB (up to 8GB per SO-DIMM) |
| Graphics | Chipset | Intel HD Graphics | Intel HD Graphics | Intel HD Graphics |
| Storage | mSATA | 1 (Full-size mini-PCIe) | 1 (Full-size mini-PCIe) | 1+1 (Full-size, Half-size) |
| Storage | 2.5" Drive Bay | 1 (support 2.5" HDD/SSD, max 9.5 mm height) | 1 (support 2.5" HDD/SSD, max 9.5 mm height) | 1 (support 2.5" HDD/SSD, max 9.5 mm height) |
| Ethernet | Interface | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Ethernet | Controller | LAN1/ LAN2: Realtek RTL8111G | LAN1/ LAN2: Realtek RTL8111G | LAN1/ LAN2: Realtek RTL8111G |
| Ethernet | Connector | 2 (RJ-45) | 2 (RJ-45) | 2 (RJ-45) |
| Audio | Chipset | Realtek ALC892, High Definition Audio (HD) | Realtek ALC892, High Definition Audio (HD) | Realtek ALC892, High Definition Audio (HD) |
| Expansion | Mini PCIe | 1+1 (Full-size, Half-size); 1 (PCIe x4) | 1+1 (Full-size, Half-size); 1 (PCIe x4) | 1+1 (Full-size, Half-size) |

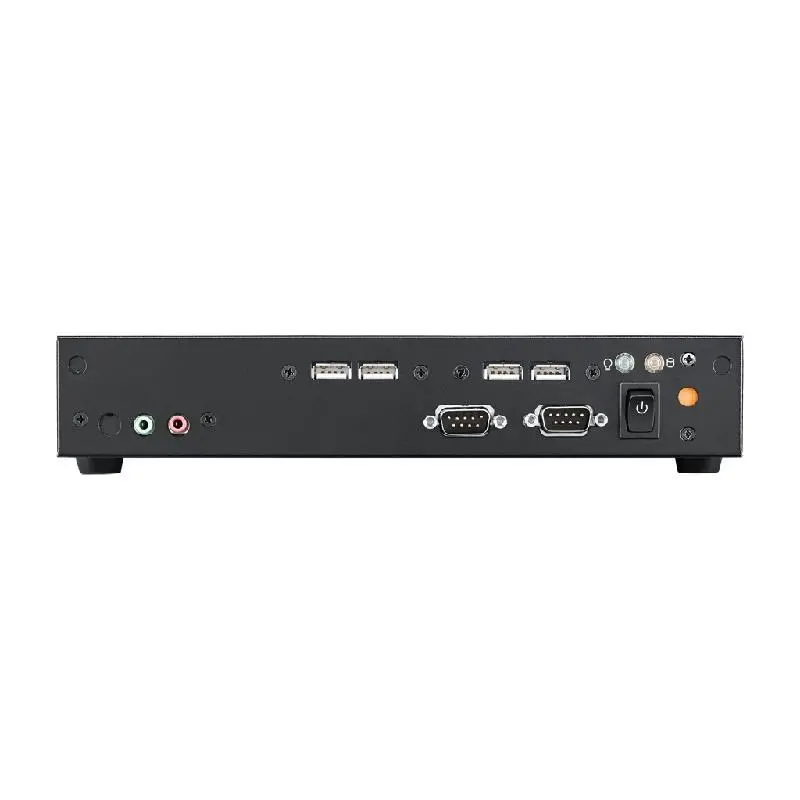

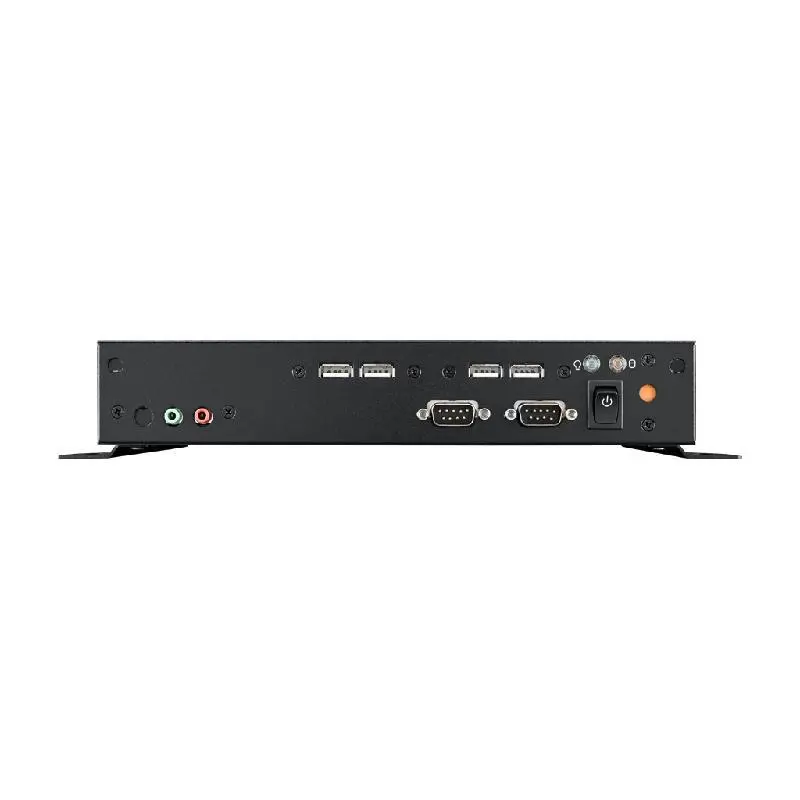

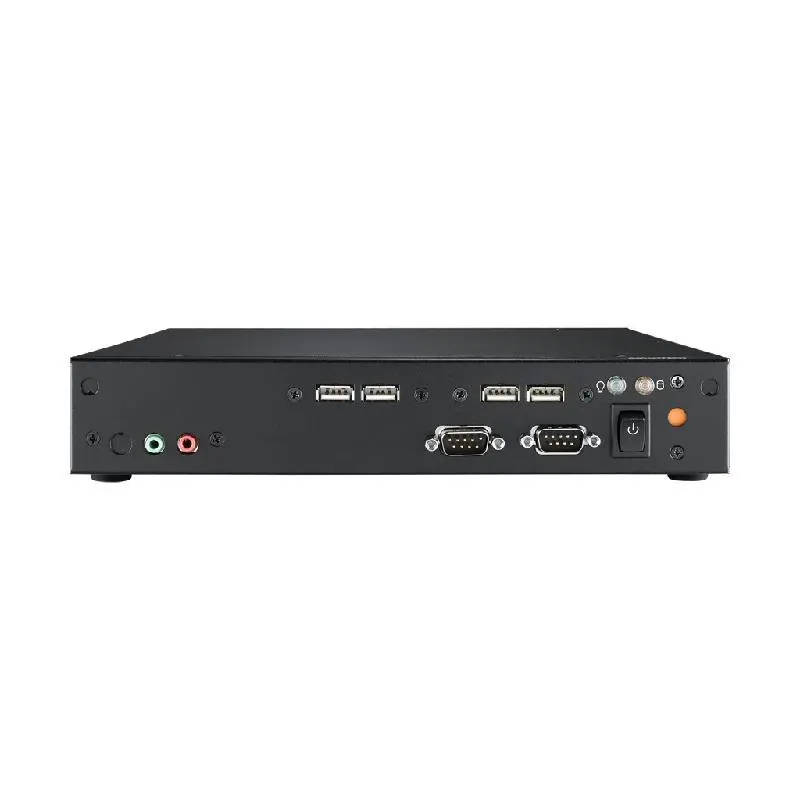

| Front I/O Interface | Antenna | up to 2 | up to 2 | up to 2 |
| Front I/O Interface | Audio | 2 (reserved, Line-Out, Mic-In) | 2 (reserved, Line-Out, Mic-In) | 2 (reserved, Line-Out, Mic-In) |
| Front I/O Interface | COM | 2 (1x RS-232/422/485, 1 x RS-232/422/485 with 5V/12V) | 2 (1x RS-232/422/485, 1 x RS-232/422/485 with 5V/12V) | 2 (1x RS-232/422/485, 1 x RS-232/422/485 with 5V/12V) |
| Front I/O Interface | USB | 4 (USB2.0) | 4 (USB2.0) | 4 (USB2.0) |

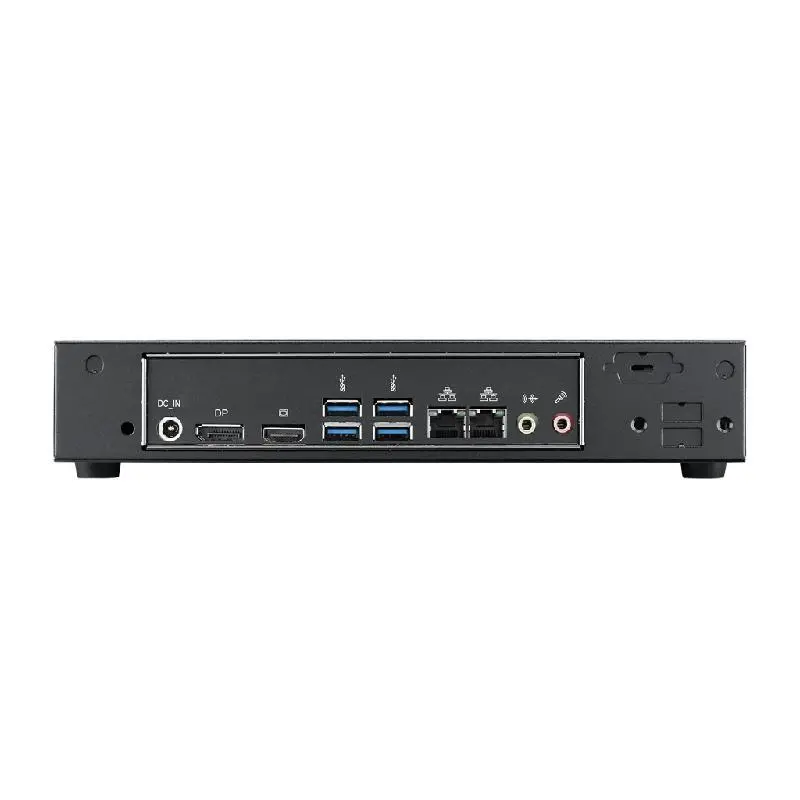

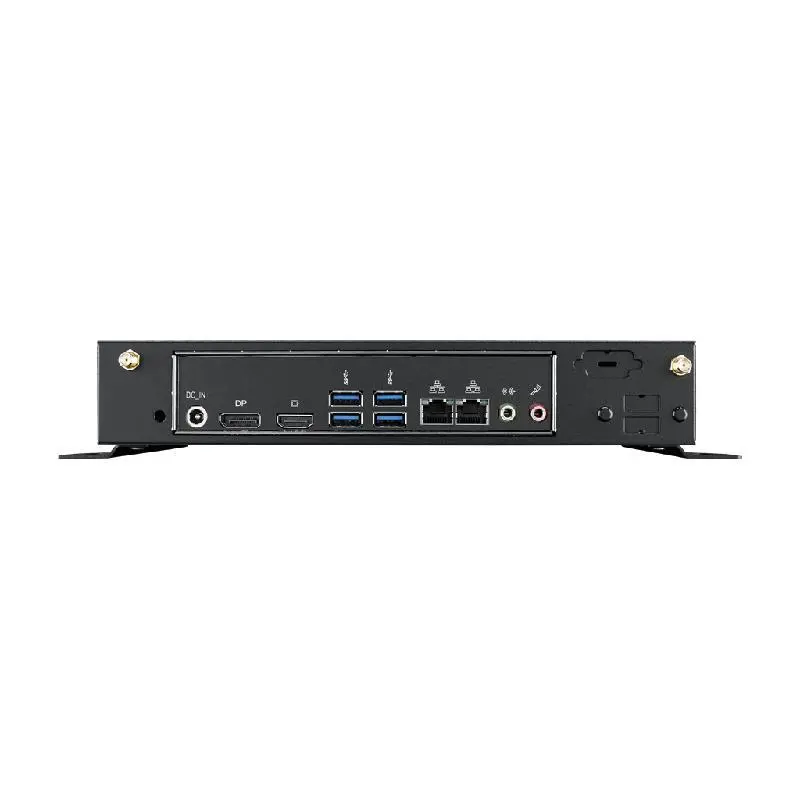

| Rear I/O Interface | DP++ | 1 | 1 | 1 |
| Rear I/O Interface | HDMI / DisplayPort* | 1 | 1 | 1 |
| Rear I/O Interface | COM | 0 | 0 | 0 |
| Rear I/O Interface | USB | 4 | 4 | 4 |
| Rear I/O Interface | VGA | (optional) | (optional) | (optional) |
| Rear I/O Interface | Audio | 2 (Line-out, Mic-In) | 2 (Line-out, Mic-In) | 2 (Line-out, Mic-In) |
| Rear I/O Interface | Antenna | up to 2 | up to 2 | up to 2 |
| Rear I/O Interface | Ethernet | 2 | 2 | 2 |
| Rear I/O Interface | Power Input | 1 (DC Jack) | 1 (DC Jack) | 1 (DC Jack) |
| Miscellaneous | LED Indicators | 2 (Power LED, HDD LED) | 2 (Power LED, HDD LED) | 2 (Power LED, HDD LED) |
| Miscellaneous | Control | 1 (Power switch); 1(Reset switch) | 1 (Power switch); 1(Reset switch) | 1 (Power switch); 1(Reset switch) |
| Power Requirement | Power Consumption | 65.16W (idle with Inte Celeron® G3900 Processor) | 87.9W (idle with Intel i7-6700 Processor) | Based on motherboard |
| Power Requirement | Voltage | 12V DC-in | 12V DC-in | 12V DC-in |
| Environment | Humidity | 10 ~ 85% @ 40° C, non-condensing | 10 ~ 85% @ 40° C, non-condensing | 10 ~ 85% @ 40° C, non-condensing |
| Environment | Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) |
| Environment | Operating Temperature | 0 ~ 45° C (32 ~ 113° F)(W/ HDD); 0 ~ 50°C (32 ~ 122°F)(w/ SSD) | 0 ~ 45° C (32 ~ 113° F)(W/ HDD); 0 ~ 50°C (32 ~ 122°F)(w/ SSD) | 0 ~ 45° C (32 ~ 113° F)(W/ HDD); 0 ~ 50°C (32 ~ 122°F)(w/ SSD) |
| Environment | Vibration Resistance | 1 Grms (HDD x 1); 3 Grms (SSD x 1) | 1 Grms (HDD x 1); 3 Grms (SSD x 1) | 1 Grms (HDD x 1); 3 Grms (SSD x 1) |
| Weight (kg) | Weight (kg) | 3.23 kg | 3.23 kg | 3.23 kg |
| Dimensions | Dimensions (W x H x D) | 250 x 44.2 x 225 mm (9.84" x 1.74" x 8.85") | 250 x 44.2 x 225 mm (9.84" x 1.74" x 8.85") | 250 x 44.2 x 225 mm (9.84" x 1.74" x 8.85") |

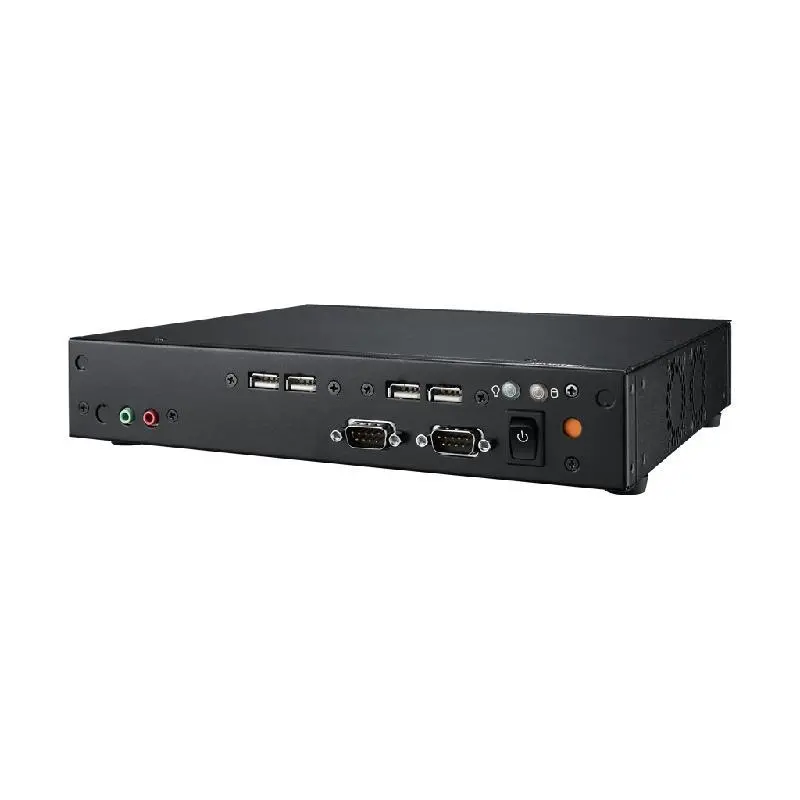

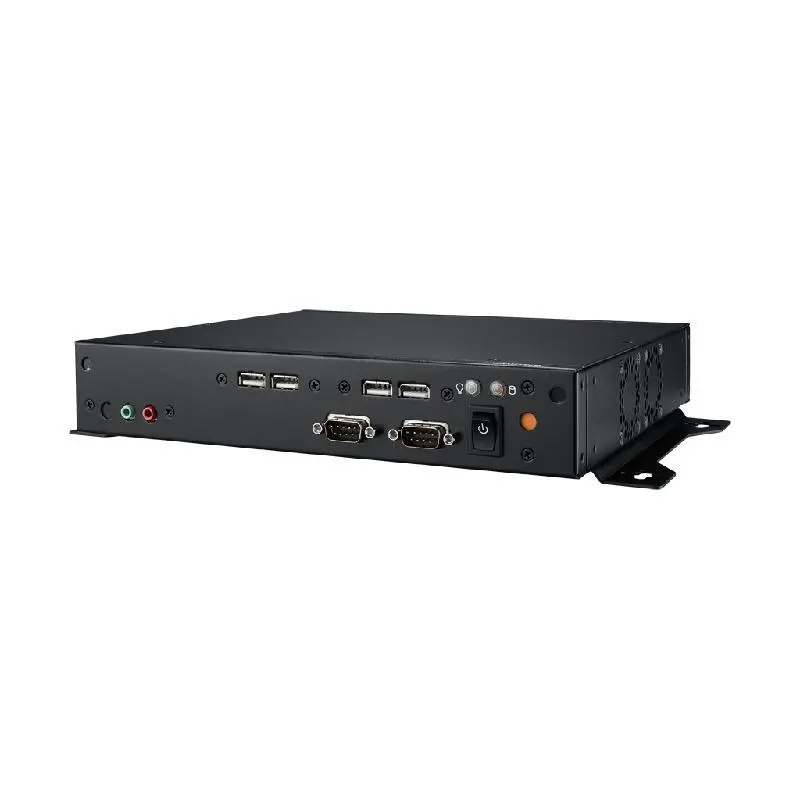

Advantech EPC-T2285 THIN 1U embedded PC - Intel® 6th/7th Generation Desktop Core™ i3/i5/i7
