| EPC-T3229-ABV2000 | ||
| Thermal Solution | Thermal Solution | 2x chassis fan (4cm/23.8CFM each) |
| Processor | CPU | AMD Ryzen™ Embedded V2748 |
| Processor | BIOS | AMI EFI 128Mbit |
| Memory | Socket | 2 x 260-pin SO-DIMM |
| Memory | Technology | 2 x 32GB DDR4 3200MHz SDRAM |
| Memory | Max. Capacity | 32GB (up to 16GB per SO-DIMM) |
| Graphics | Chipset | Intel HD Graphics |
| Storage | mSATA | 1 (Full-size mini-PCIe) |
| Storage | 2.5" Drive Bay | 2 x 2.5” SATA HDD Bay (Max Height 7mm) |
| Ethernet | Interface | 10/100/1000 Mbps |
| Ethernet | Controller | LAN1/ LAN2: Realtek RTL8111H |
| Ethernet | Connector | 2 (RJ-45) |
| Audio | Chipset | Realtek ALC888S, High Definition Audio (HD), Line-in, Line-out |
| Expansion | Mini PCIe | 1+1 (Full-size, Half-size); 1 (PCIe x4) |

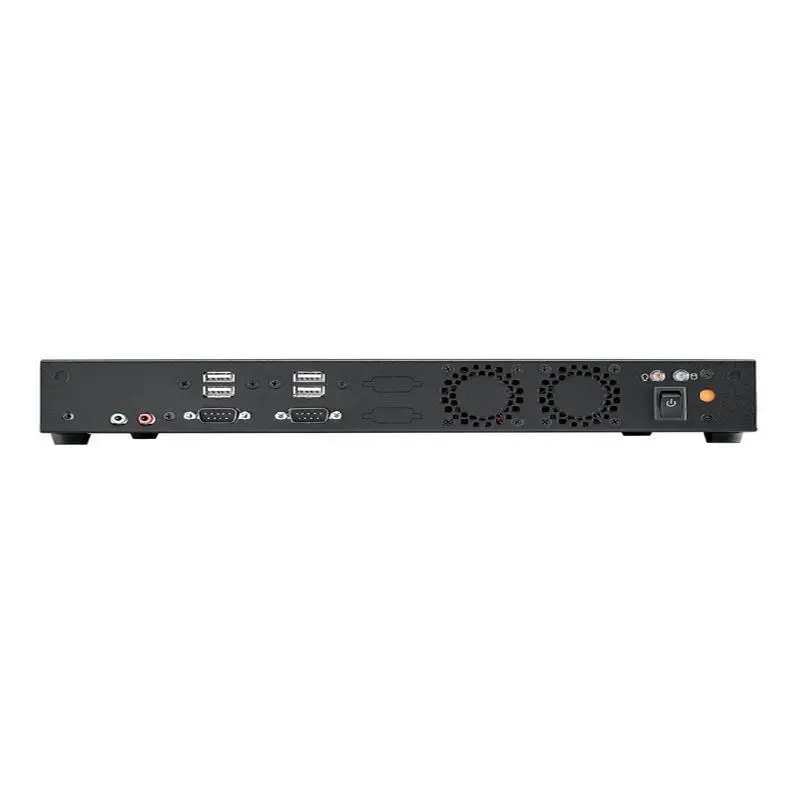

| Front I/O Interface | Antenna | up to 2 |
| Front I/O Interface | Audio | 2 (Line-Out, Mic-In) |
| Front I/O Interface | COM | 2 COM |
| Front I/O Interface | USB | 2 |
| Rear I/O | HDMI | 2 |
| Rear I/O Interface | USB | 4 |
| Rear I/O Interface | Audio | 2 (Line-out, Mic-In) |
| Rear I/O Interface | Antenna | up to 2 |
| Rear I/O Interface | Ethernet | 2 |
| Rear I/O Interface | Power Input | 1 DC Jack (12V) ; Optional Terminal Block (Optional Wide power DC 9~36V input) |
| Miscellaneous | LED Indicators | 2 (Power LED, HDD LED) |
| Miscellaneous | Control | 1 (Power switch); 1(Reset switch) |
| Power Requirement | Power Consumption | Base on motherboard |
| Power Requirement | Voltage | 12V DC-in |
| Environment | Humidity | 10 ~ 85% @ 40° C, non-condensing |
| Environment | Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Environment | Operating Temperature | 0 ~ 45° C (32 ~ 113° F)(w/o Expansion Card module) |
| Environment | Vibration Resistance | 1 Grms (HDD x 1); 3 Grms (SSD x 1) |
| Weight (kg) | Weight (kg) | 3.68kg |
| Dimensions | Dimensions (W x H x D) | 330 x 44 x 270 mm |
Advantech EPC-T3229 AMD V2748 1U Slim System with One PCIe Expansion Slot for AI-enhanced Edge Computing
